Skyjack SJ51AJ Parts Manual

SKYJACK, Page 270 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
M149112AB

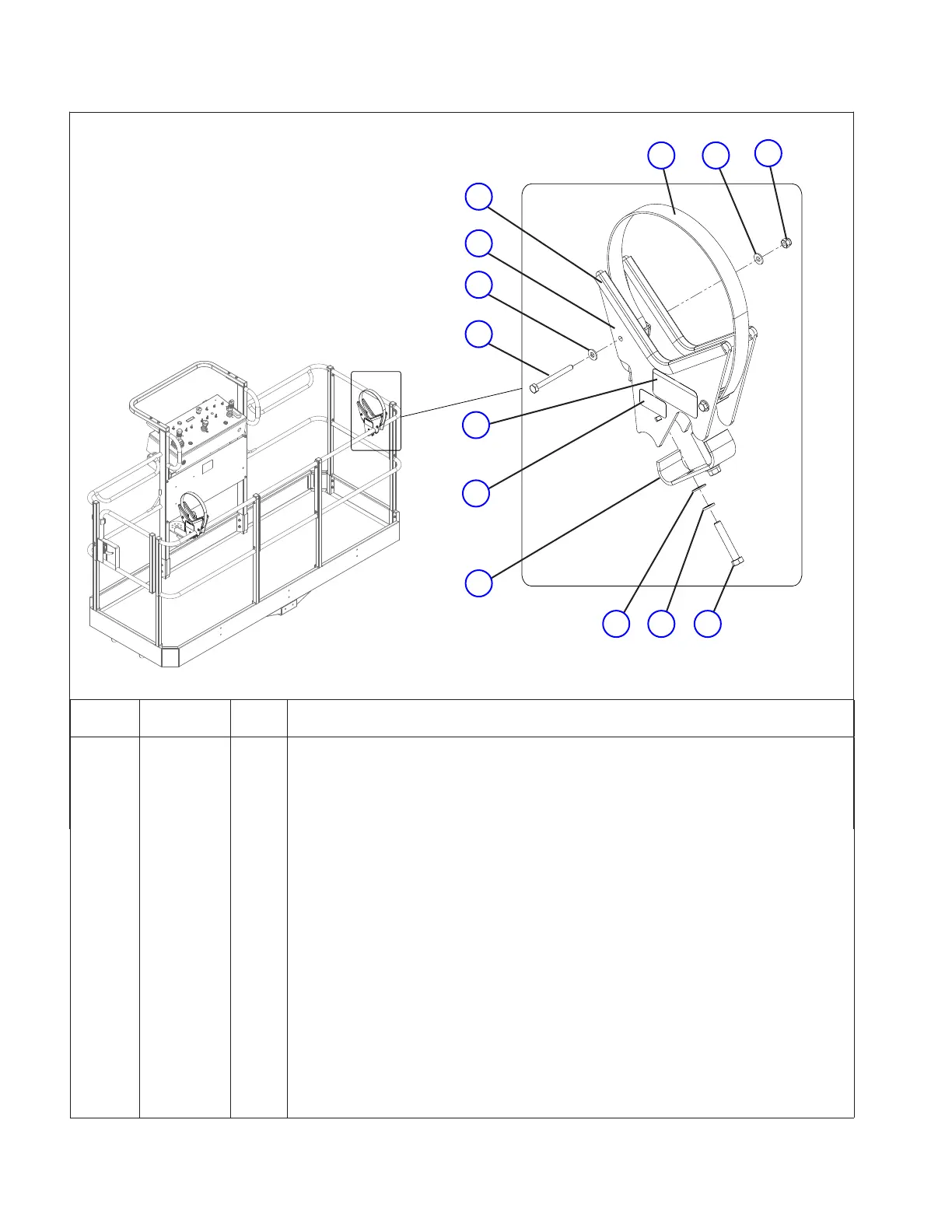

9.32 Pipe Rack
789
12
11
3
4
10
5
4
2
1
6
AD
Index
No.
Skyjack
Part No.
Qty. Description
- 149599 - PIPE RACK
- 149112 1 • PIPE RACK ASSEMBLY
1 144495 1 • • WELDMENT, PIPE RACK
2 117398 48” • • TRIM, Protective
3 144501 4 • • BOLT, Hex head (0.25”-20 x 2.75”, Grade 5)
4 103995 8 • • WASHER, Flat (0.25”)
5 115649 4 • • NUT, Hex head nylon lock (0.25”-20, Grade 5)
6 144499 2 • • PLATE, Pipe rack bottom
7 103872 4 • • BOLT, Hex head (0.375”-16 x 2.25”, Grade 5)
8 103999 4 • • WASHER, Lock (0.375”)
9 103472 4 • • WASHER, Flat (0.375”)
10 144500 2 • • STRAP, Pipe rack
11 172383 2 • • LABEL, Pipe rack capacity
12 171239 2 • • LABEL, Capacity reduction
13 162725 1 • INSTRUCTION, Pipe rack installation (not shown)
