Skyjack SJ51AJ Parts Manual

SKYJACK, Page 14 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947

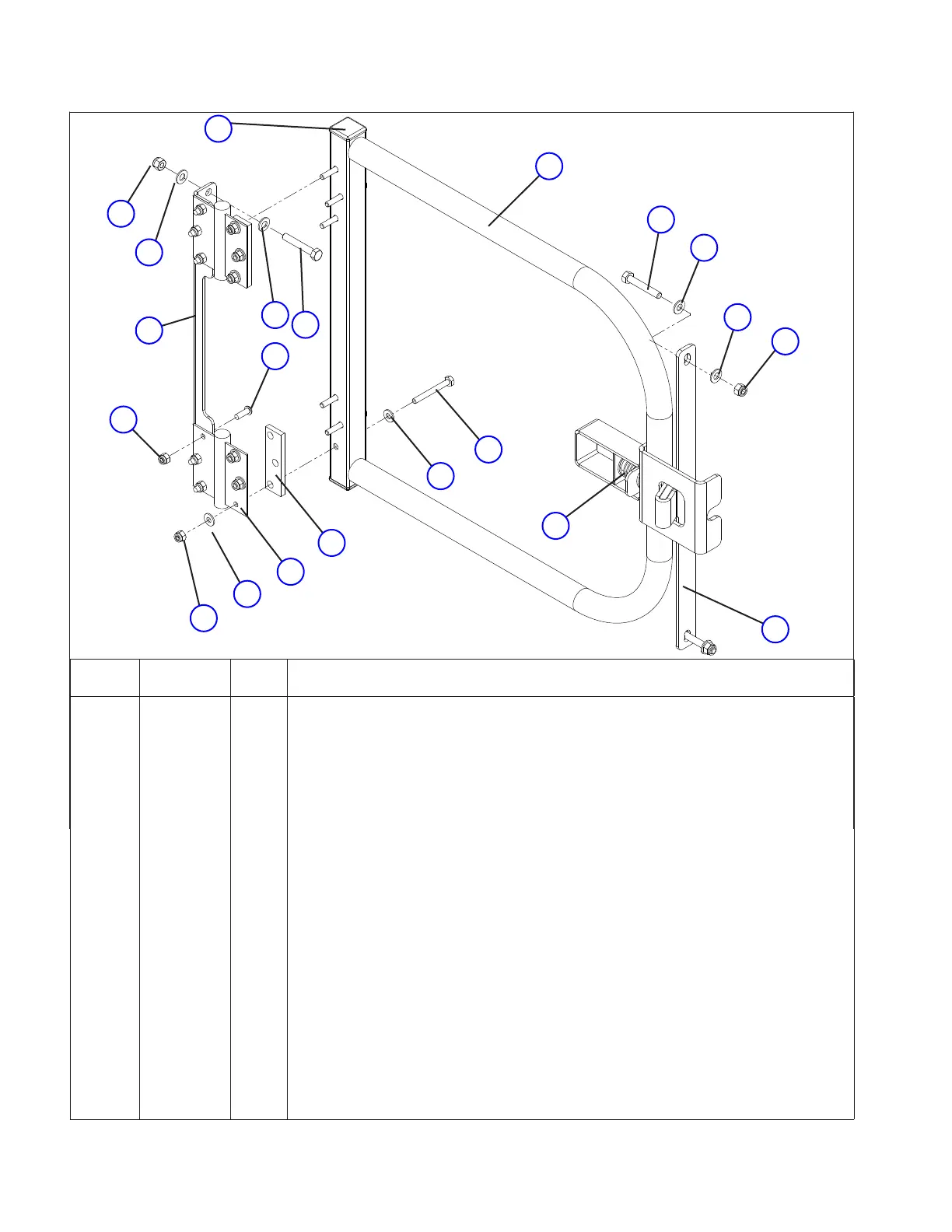

1.3 Swing Gate
10
14
8
14
6
10
9
8
12
1
13
9
3
8
4
13
2
M164618AB
8
7
5
11
Index
No.
Skyjack
Part No.
Qty. Description
A 164589 1 SWING GATE ASSEMBLY (30” x 60”)
B 164618 1 SWING GATE ASSEMBLY (30” x 72”)
1 164590 1 • BRACKET, Hinge mounting
2 164593 1 • WELDMENT, Gate A
164619 1 • WELDMENT, Gate B
3 110824 1 • PIN LATCH, Door spring
4 117277 2 • HINGE, Spring
5 166288 1 • PLATE, Locking A
5 166287 1 • PLATE, Locking B
6 100702 2 • CAP, End
7 164592 2 • TAB, Hinge
8 103996 10 • WASHER, Flat (5/16”)
9 103995 12 • WASHER, Flat (1/4”)
10 103865 5 • BOLT, Hex head (5/16”-18 x 2.00”, Grade 5)
11 139168 6 • BOLT, Button head cap screw (1/2”-20 x 0.75”, Grade 5)
12 103862 6 • BOLT, Hex head (1/4”-20 x 2.25”, Grade 5)
13 103984 5 • NUT, Hex head nylon lock (5/16”-18, Grade 5)
14 115649 12 • NUT, Hex head nylon lock (1/4”-20, Grade 5)
