SKYJACK, Page 46 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
6
5
4
2
7
1
3
M1467687AA

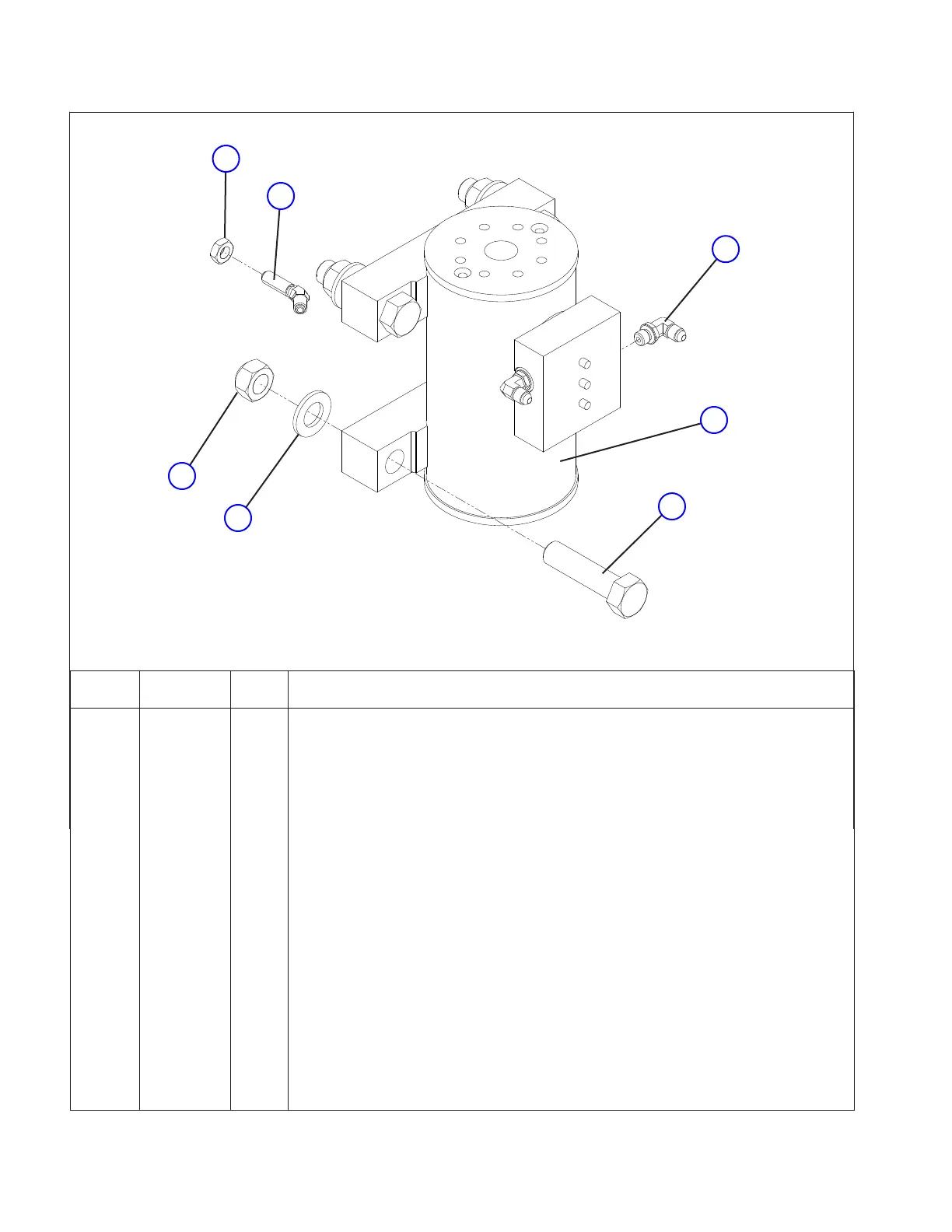

2.8 Rotary Actuator
Index
No.
Skyjack
Part No.
Qty. Description
- 167687 - ROTARY ACTUATOR
1 144710 1 ACTUATOR, Rotary
2 103894 4 BOLT, Hex head (3/4”-10 x 3” Grade 8)
3 702194 4 WASHER, Flat (3/4”)
4 700575 4 NUT, Crownlock (3/4”-10 Grade 8)
5 167686 2 FITTING, Elbow 45˚ bulkhead (04 JICM - 04 JICM)
6 143963 2 FITTING, Nut bulkhead (04)
7 125883 2 FITTING, 90˚ (04 JICM - 04 ORBM)
K 144709 1 KIT, Seal repair (Rotary Actuator) (Not Shown)
To Next Page
