Skyjack SJ51AJ Parts Manual

SKYJACK, Page 220 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
M194701AC, M194958AA, M196423AA
2
AD

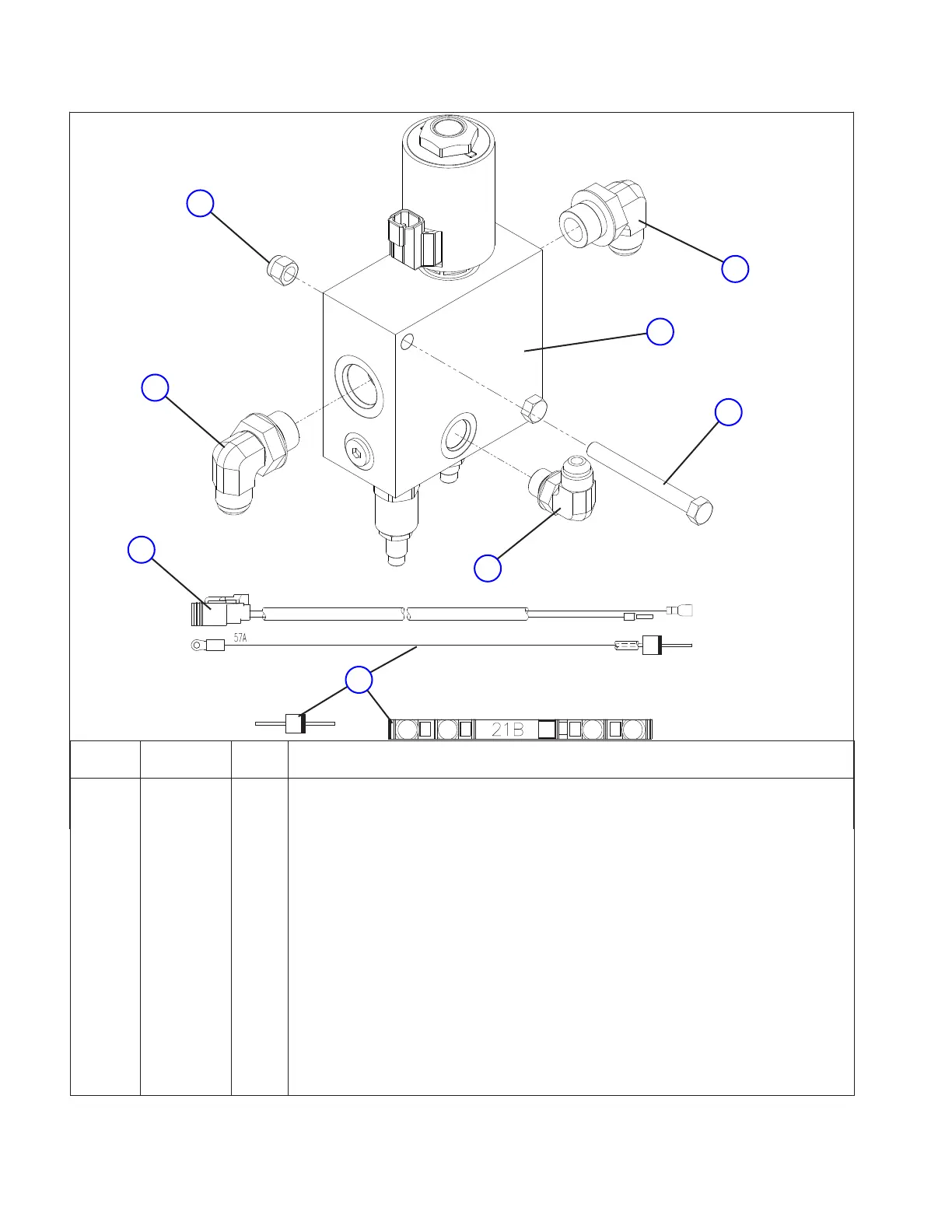

9.8 Load Circuit Manifold - Deutz D2.9L
2
3
5
1
6
7
4
Index
No.
Skyjack
Part No.
Qty. Description
- 194701 - LOAD CIRCUIT MANIFOLD - Cold & Arctic Packages with Deutz D2.9L
- 209445 1 • MANIFOLD ASSEMBLY, Load circuit
1 208620 1 • • MANIFOLD, Load circuit
195033 1 • • • VALVE, Needle
195035 1 • • • VALVE, Relief (3250 psi)
195036 1 • • • VALVE, Spool (SV12-34)
168450 1 • • • COIL, 12V DC
2 138981 2 • • FITTING, 90° (10JICM-12ORBM)
3 114583 1 • • FITTING, 90° (08JICM-08ORBM)
4 103915 2 • BOLT, Hex head (0.375”-16 X 3.50” gr 5)
5 104606 2 • NUT, Hex head nylon lock (0.375”-16 gr 5)
6 194958 1 HARNESS, Load circuit
7 196423 1 WIRE KIT, Load circuit
137940 1 • • TERMINAL BLOCK
102921 1 • • DIODE
