Skyjack SJ51AJ Parts Manual

SKYJACK, Page 50 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
M148627AA

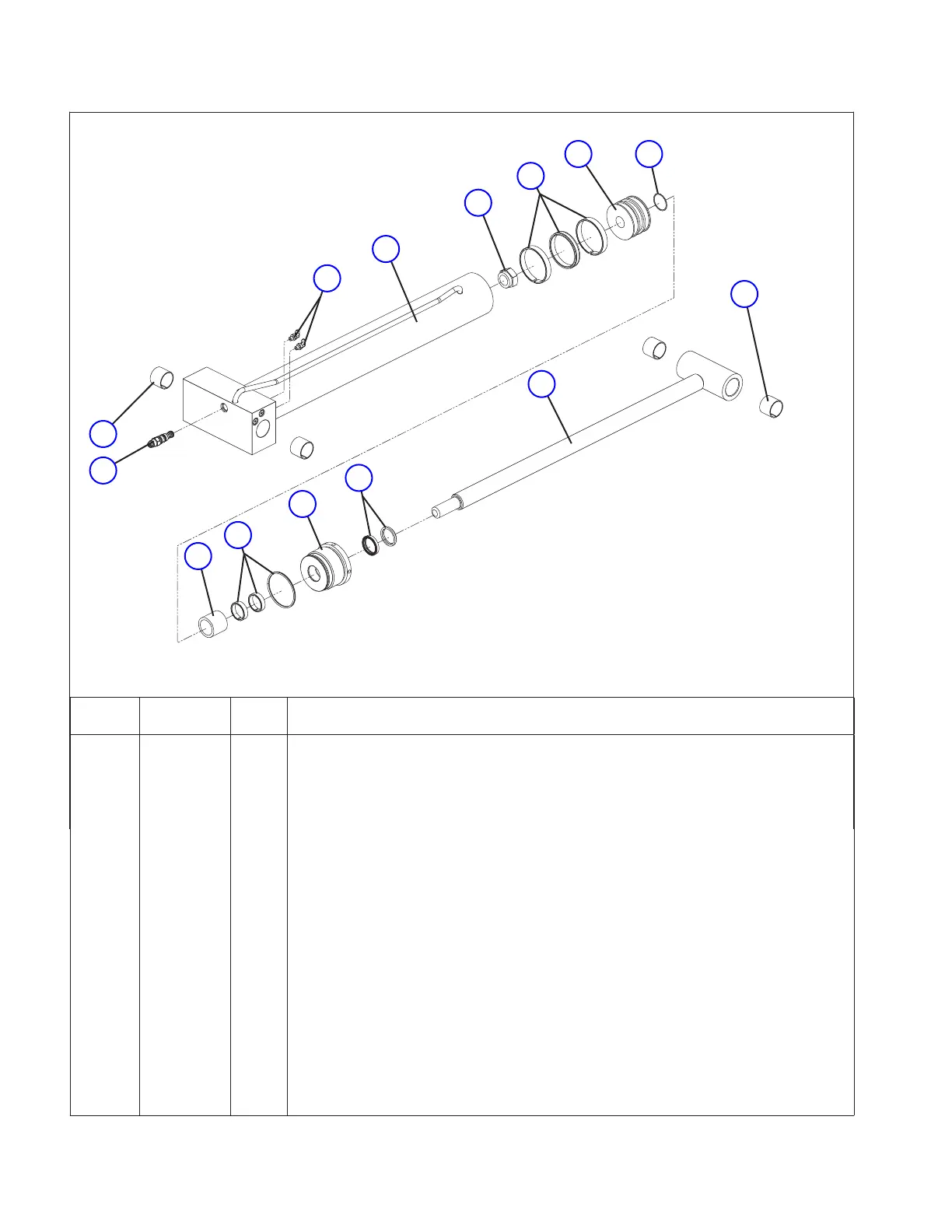

3.2 Main Boom Lift Cylinder
3
K1
2
1
9
4
K1
5
K1
6
7
8
7
K1
Index
No.
Skyjack
Part No.
Qty. Description
- 148627 - MAIN BOOM LIFT CYLINDER ASSEMBLY
- 148711 1 • MAIN BOOM LIFT CYLINDER
1 154529 1 • • WELDMENT, Tube
2 154530 1 • • NUT, Rod
3 154534 1 • • PISTON
4 154536 1 • • SPACER
5 154535 1 • • GLAND
6 154531 1 • • WELDMENT, Rod
7 154533 4 • • BEARING
8 152326 1 • • VALVE, Counterbalance
9 131716 2 • FITTING, Elbow 45° (04 JICM - 04 ORBM)
K1 154528 1 KIT, Seal
