Skyjack SJ51AJ Parts Manual

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 35
1

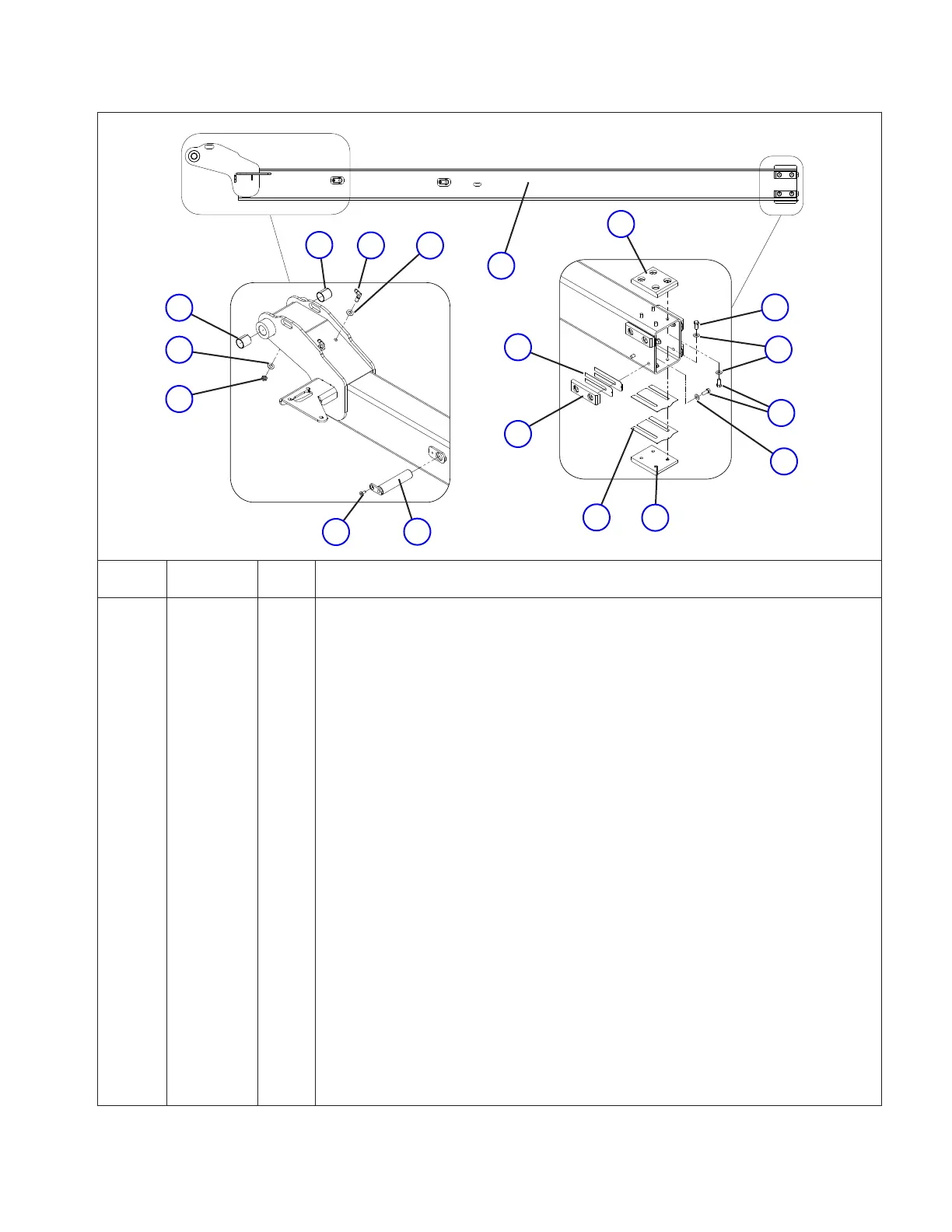

2.3 Fly Boom Assembly
M161978AB
6
13
11
12
2
6
11
14
4
9
10
8
5
3
71
10
9
Index
No.
Skyjack
Part No.
Qty. Description
A 161978 1 FLY BOOM ASSEMBLY (46AJ)
B 162448 1 FLY BOOM ASSEMBLY (51AJ)
1 161986 1 • FLY BOOM WELDMENT, A
162455 1 • FLY BOOM WELDMENT, B
2 148839 2 • PIN WELDMENT (1 1/4” diameter x 5 11/16”)
3 148828 4 • PAD, Side
4 148826 1 • PAD, Top
5 148827 1 • PAD, Bottom
6 125262 2 • BUSHING, CJS 2024 (1.25” ID x 1.50” lg)
7 148837 AR • SHIM, 16 Gauge (side)
148838 AR • SHIM, 20 Gauge (side)
8 148829 AR • SHIM, 16 Gauge (bottom)
148830 AR • SHIM, 20 Gauge (bottom)
9 300437 16 • BOLT, Hex head (3/8”-16 x 7/8” Grade 5)
10 103472 24 • WASHER, Flat (3/8”)
11 119313 4 • WASHER, Flat (7/16”)
12 704642 2 • SCREW, Flat head cap (5/16”-18 x 3/4” Grade 5)
13 149418 2 • FITTING, Elbow 90° bulkhead (04 JICM - 04 JICM)
14 143963 2 • FITTING, Nut bulkhead (04 JIC)
