Skyjack SJ51AJ Parts Manual

SKYJACK, Page 56 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
M148709AC
2
K1
1
3
5
6
4
7 8

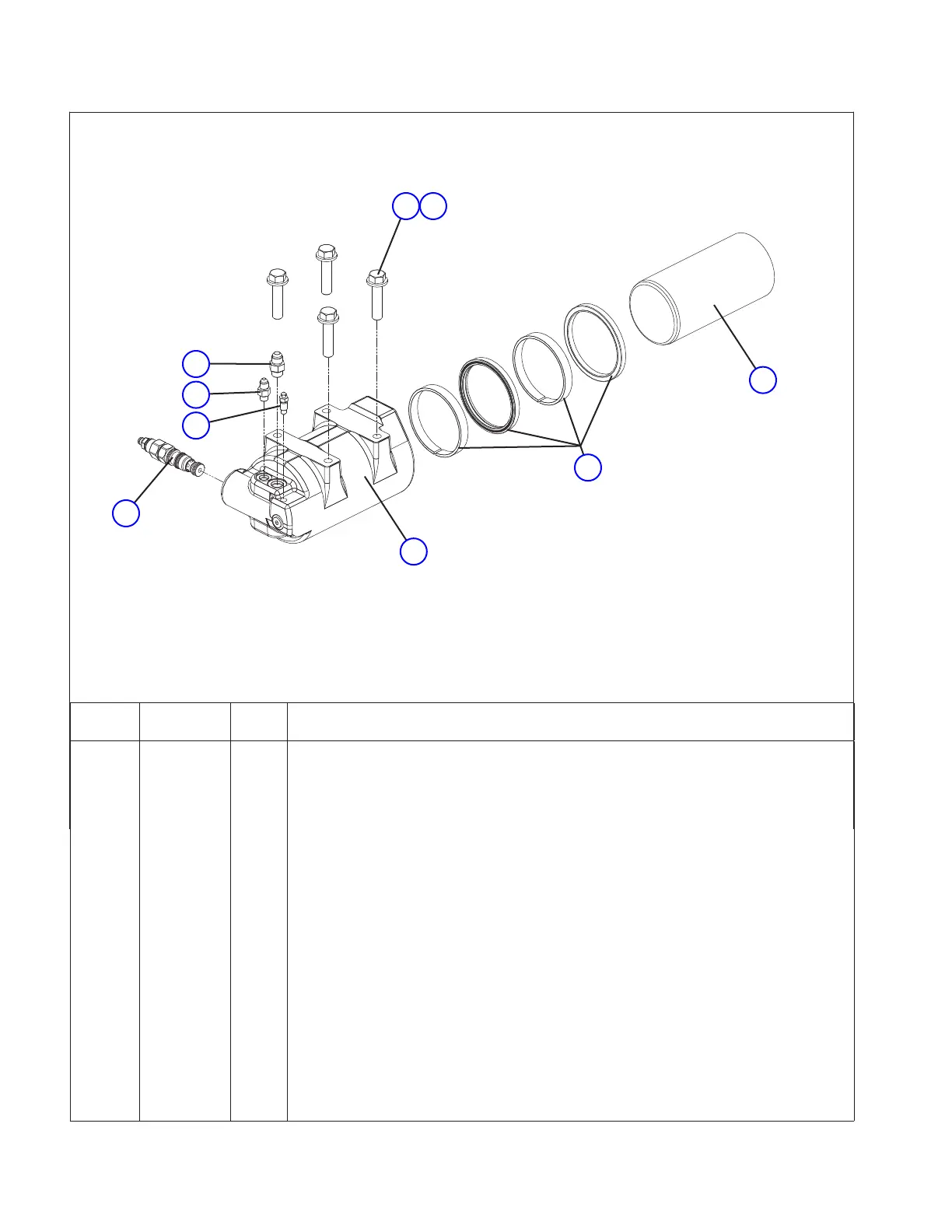

3.8 Axle Lock Cylinder
Index
No.
Skyjack
Part No.
Qty. Description
- 161095 - AXLE LOCK CYLINDER ASSEMBLY
1 154558 1 • WELDMENT, Tube
2 154559 1 • ROD
3 154561 1 • SCREW, Bleed
4 160028 1 • VALVE, Counterbalance
5 126128 1 FITTING, Straight (04 JICM - 04 ORBM)
6 103069 1 FITTING, Straight (06 JICM - 06 ORBM)
7 106447 4 BOLT, Hex head (1/2”-13 x 2 1/4” Grade 8)
8 104379 4 WASHER, Flat hardened (1/2”)
K1 154557 1 KIT, Seal
