Skyjack SJ51AJ - High Pressure Filter Assembly

SKYJACK, Page 90 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
M162288AB
1

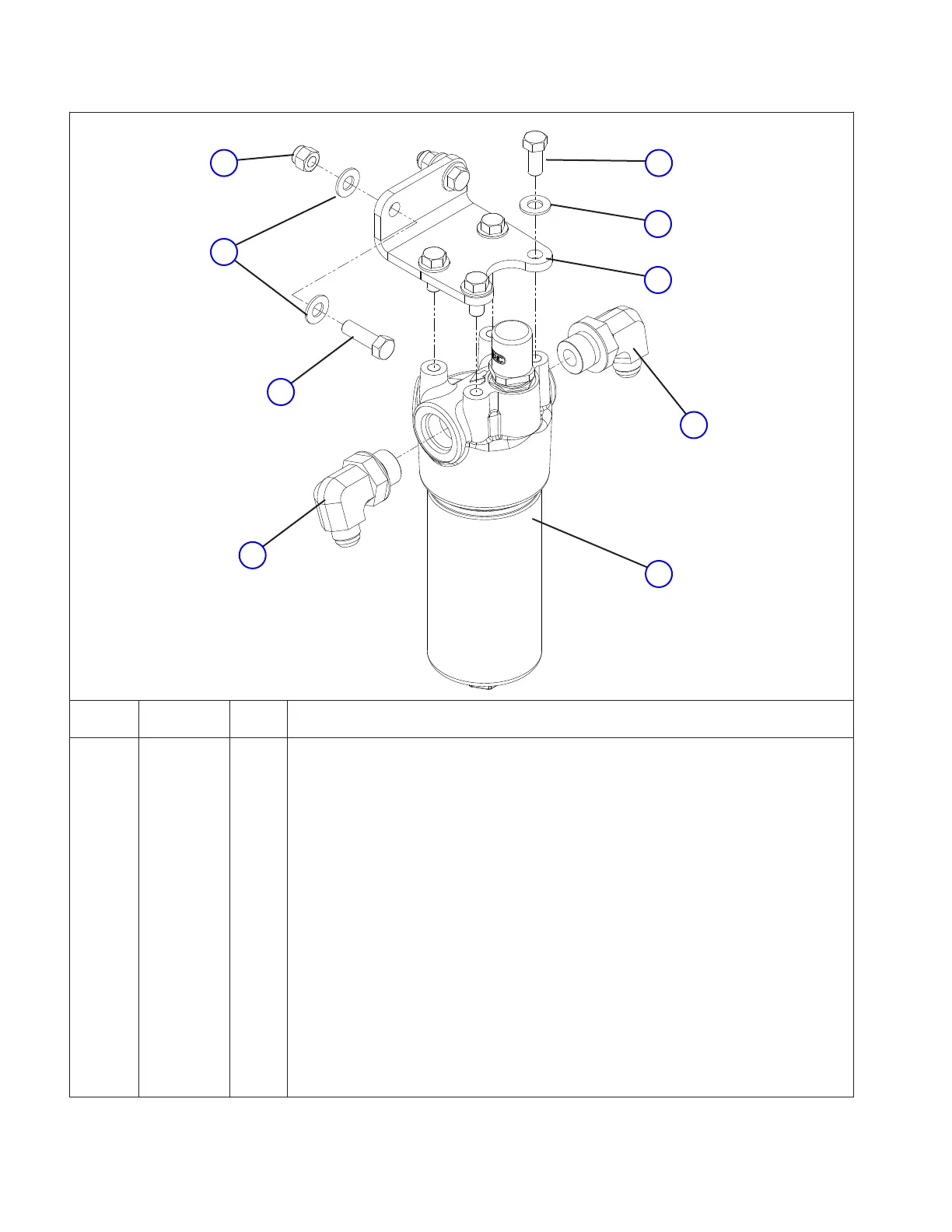

4.17 High Pressure Filter Assembly
2
3
5
4
6
3
7
8
Index
No.
Skyjack
Part No.
Qty. Description
- 162288 - HIGH PRESSURE FILTER ASSEMBLY
1 162327 1 • BRACKET, High pressure filter
2 161932 1 • FILTER ASSEMBLY, High pressure
161947 1 • • ELEMENT, High pressure filter
169246 1 • • PLUG, Indicator with seals
204202 1 • • O-RING
204203 1 • • O-RING, Backup
3 103472 8 • WASHER, Flat (3/8”)
4 101297 2 • BOLT, Hex head (3/8”-16 x 1.25” Grade 5)
5 300437 4 • BOLT, Hex head (3/8”-16 x 0.875” Grade 5)
6 104606 2 • NUT, Hex head nylon lock (3/8”-16 Grade 5)
7 112366 1 FITTING, Elbow 90° (08 JICM - 12 ORBM) (no oil cooler option)
8 138981 1 FITTING, Elbow 90° (10 JICM - 12 ORBM) (no oil cooler option)
