SJ85 AJ 213217AAA
27
Control Functions Section 3 – Familiarization
E. Fuel - This light indicates low fuel level.
F. Glow plug (diesel) - This light illuminates
until glow plugs have completed their timed
cycle. When the lamp goes out, the engine is
ready to be started.
7
Emergency stop button - This red “mushroom-
head” pushbutton disconnects power to
control circuit and shuts engine off.
8
Emergency power unit - This switch enables
emergency power unit when engine is off.
9
9
Torque switch - This switch selects low or high
torque. Select low torque (higher speed) or high
torque (lower speed). Select high torque when
driving on a slope.
7
10
Low/high throttle switch - This switch allows
selection between low and high engine throttle
speeds.
7
11
Drive/Steer controller - This single-axis lever
controls driving forward or backward. The rocker
switch controls steering left or right. Internal
springs return it to neutral when released.
7
12
Differential lock switch - This momentary
switch, when pushed forward and then released,
engages differential lock and turns differential
light on. When pulled backward and then
released, disengages differential lock and turns
differential light off.
7
13
Jib up/down switch - This switch controls up or
down movement of jib.
7
14
Fly boom extend/retract switch - This switch
controls extension or retraction of y boom.
7
15
Riser raise/lower controller - This single-axis
lever controls raising or lowering of riser.
7
16
Capacity zone border light - Indicates MEWP
is at limits of travel for high capacity zone. Lower
and extend functions are not available.
7
17
Platform leveling override switch - This switch
overrides automatic leveling of platform and
controls tilting up or tilting down of platform.
7
18
Low capacity zone indicator light - Indicates
MEWP is in “low” platform capacity zone. Refer
to Section 7.7.
TM
1
2
+
+
1 5 6 7 8 9 10
111213141516171819202122
32 4

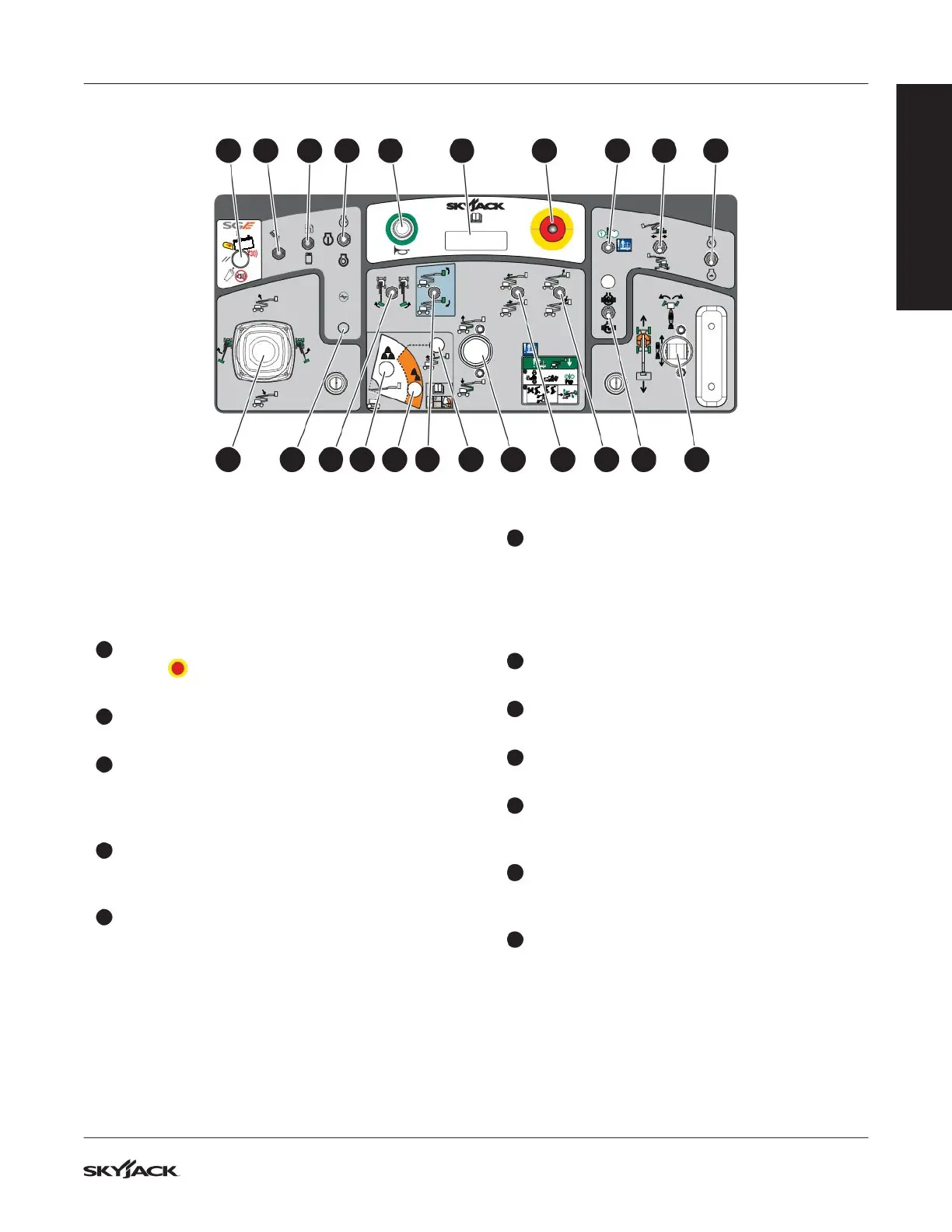

Figure 08 Platform control console
FAMILIARIZATION
