213217AAA SJ85 AJ
28
Section 3 – Familiarization Control Functions
7
19
High capacity zone indicator light - Indicates
MEWP is in “high” platform capacity zone. Refer
to Section 7.7.
7
20
Platform rotation switch - This switch controls
left or right rotation of platform.
7
21
Generator on/off switch (if equipped) - This
switch turns the hydraulic generator on or off.
NOTE
All powered functions are disabled while the
generator switch is on.
7
22
Boom/Turret controller - This dual-axis lever
controls raising or lowering of main boom or
rotating left right of turret.
TM
1
2
+
+
1 5 6 7 8 9 10
111213141516171819202122
32 4

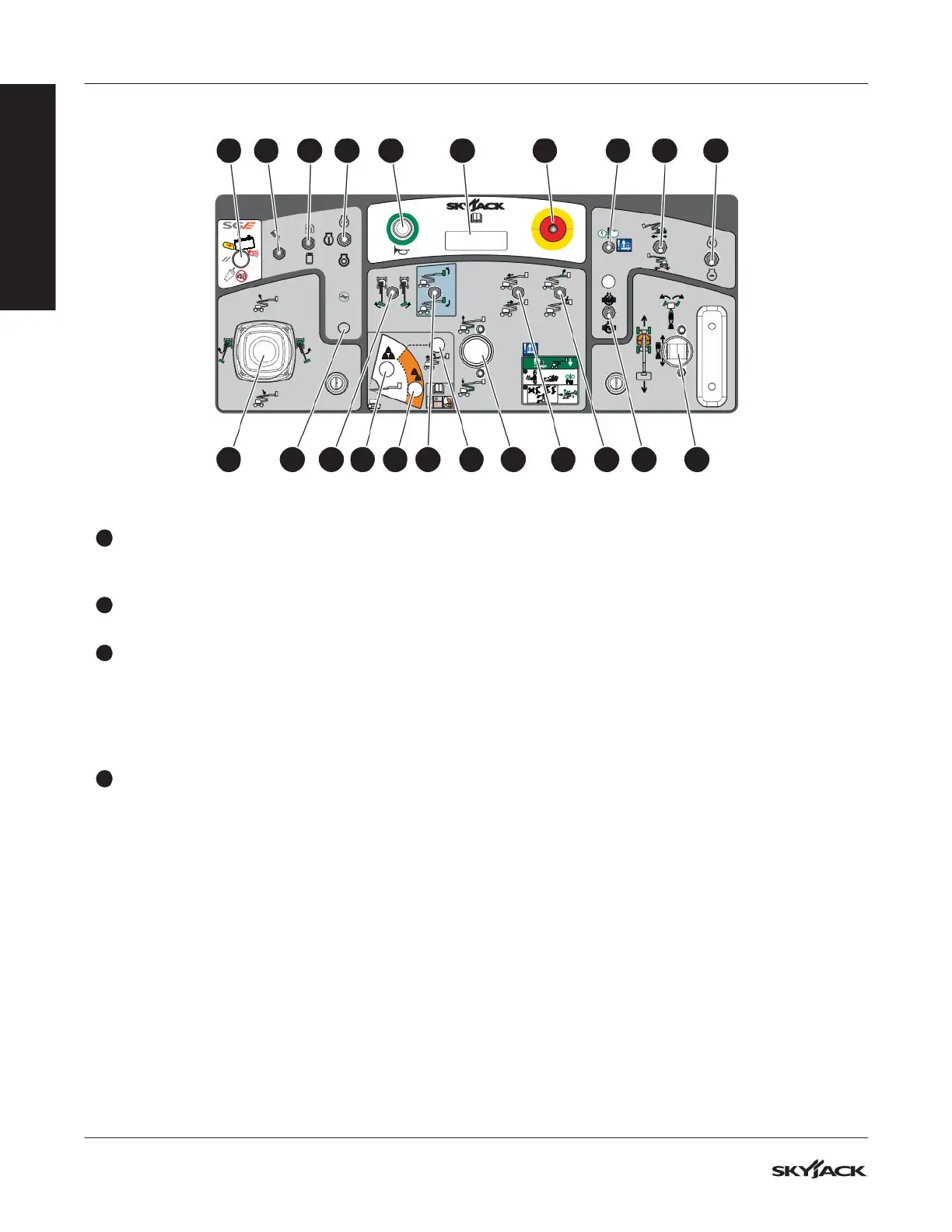

Figure 08 Platform control console
