Skyjack SJKB-40-D - Page 102

SECTION 5, Page 19SJKB-40-D, SJKB-40-D/F
JUN. 1999
TO SPEED SWITCH “A”
TO SPEED SWITCH “B”
TO D.I.S.
MODULES
ACTUATOR
CONNECTOR
12 VOLTS
GOVERNOR
ACTUATOR
2.0
OHMS

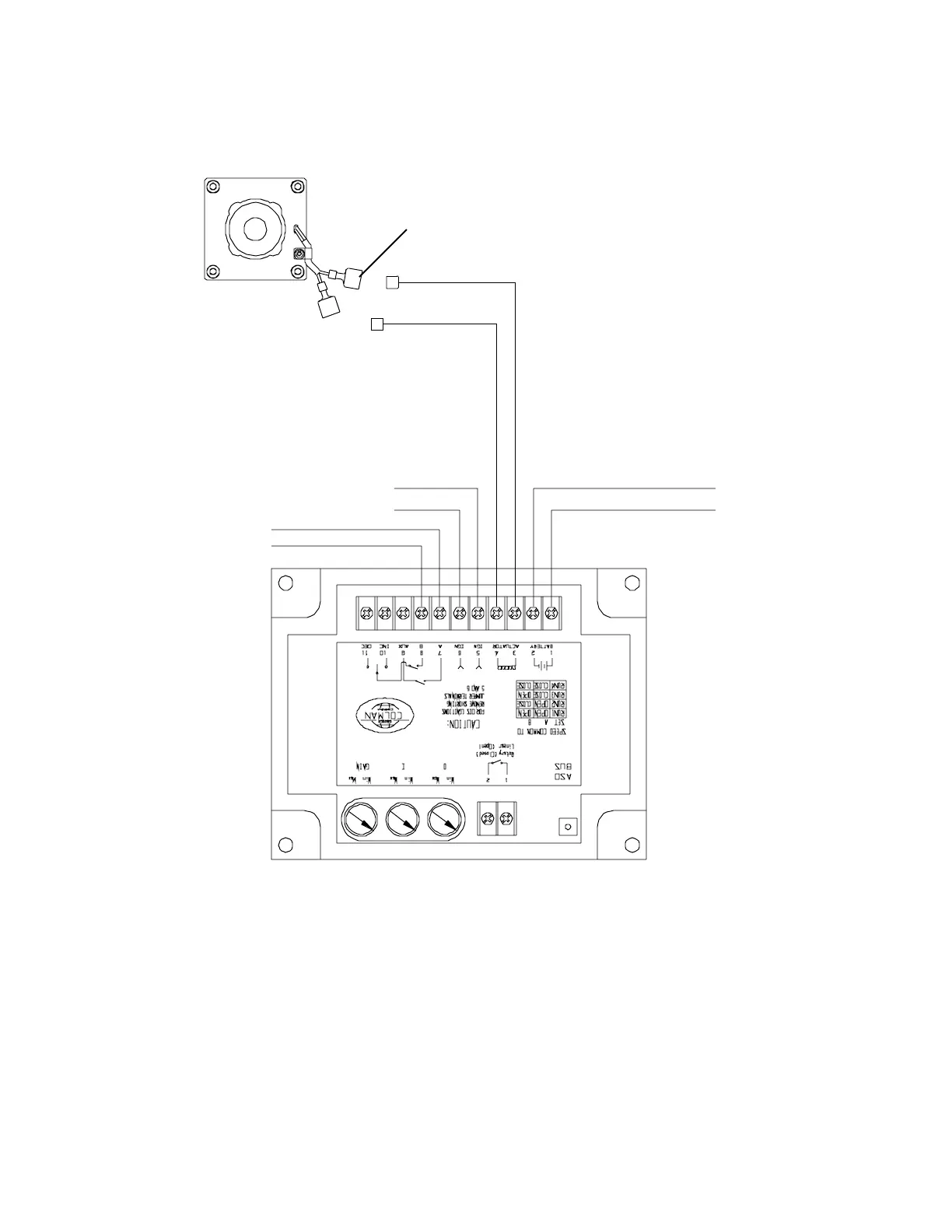

Figure 5-10. Barber Colman Governor Control Diagnostics.
Ma40-507
