Skyjack SJKB-40-D - FIGURE 6-39. PLANETARY REDUCTION GEAR ASSEMBLY (Brevini)

SECTION 6, Page 78
SJKB-40-D,SJKB-40-D/F
JUN. 1999

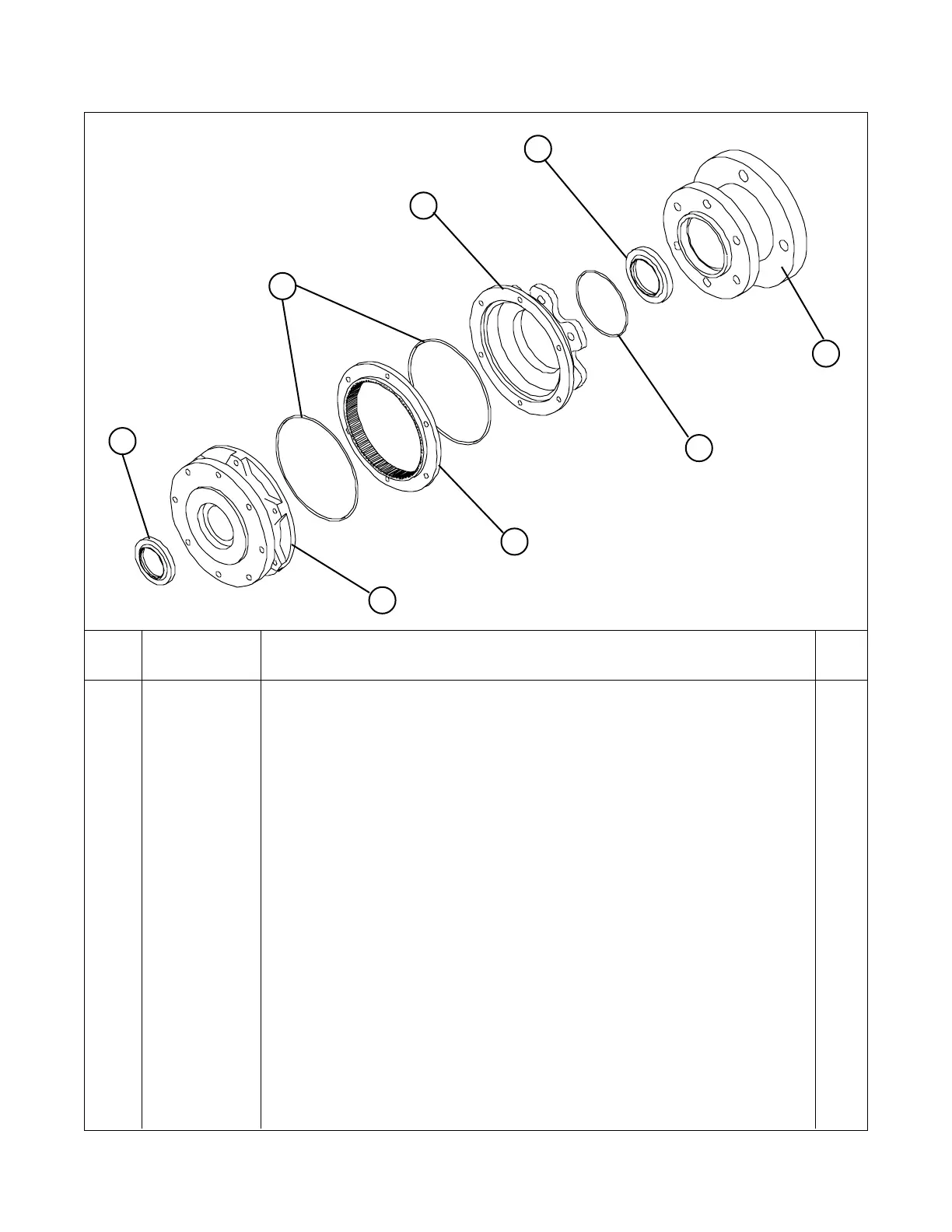

FIGURE 6-39. PLANETARY REDUCTION GEAR ASSEMBLY (Brevini)
Ma40-630
1 701841 LIP SEAL, Output housing 1
2 $ HOUSING, Output 1
3 701849 O-RING SEAL 2
4 $ RING GEAR 1
5 $ HOUSING, Input 1
6 701942 O-RING SEAL, Input adapter 1
7 701842 LIP SEAL, Input adapter 1
8 701030 HOUSING, Input adapter 1
