Skyjack SJKB-40-D - Figure 6-19. Fuel Tank Assembly

SECTION 6, Page 40 SJKB-40-D, SJKB-40-D/F
JUN. 1999

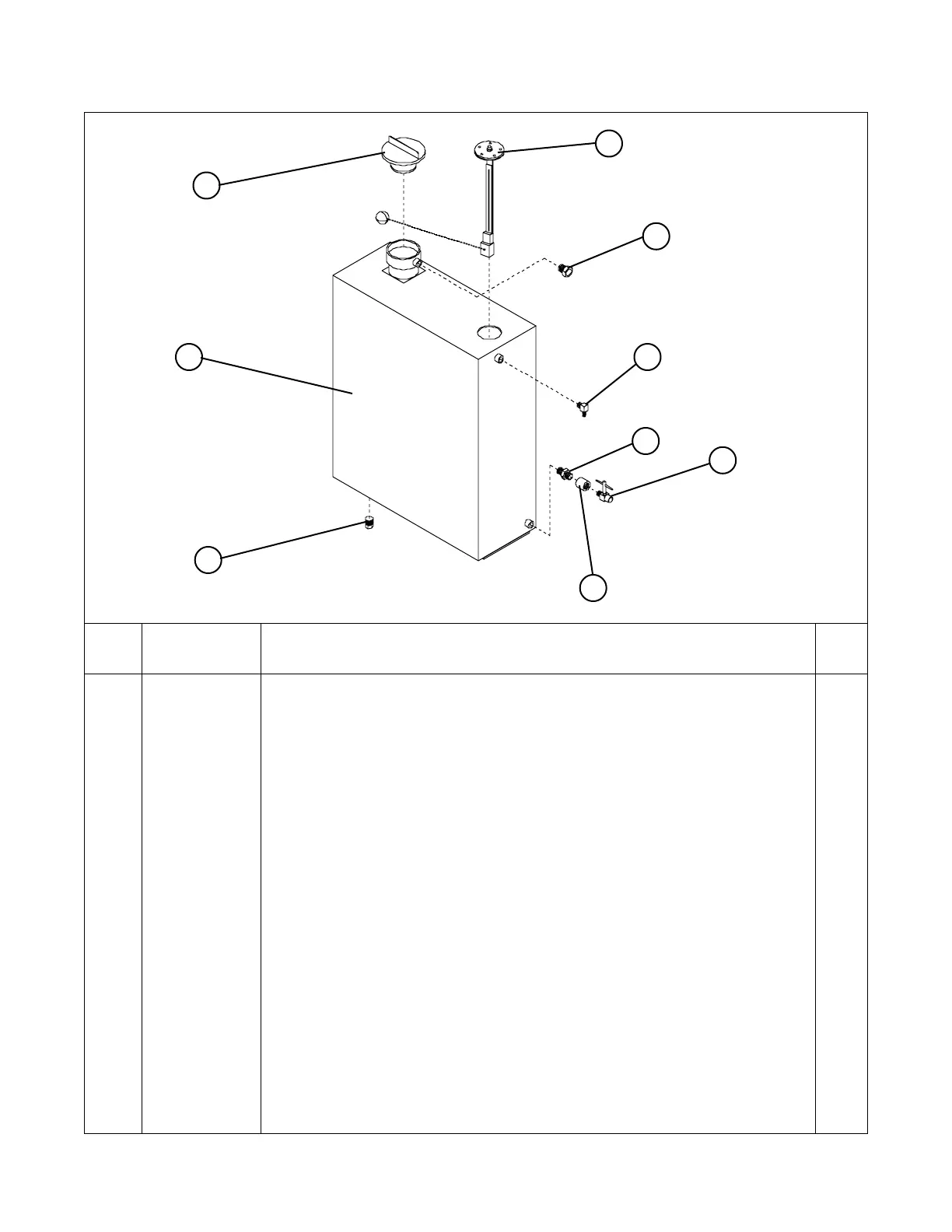

FIGURE 6-19. FUEL TANK ASSEMBLY
707627 ASSEMBLY, Fuel tank -
1 704471 • WELDMENT, Fuel tank (S/N 95037 and Above) 1
707077 • WELDMENT, Fuel tank (S/N 95036 and Below) 1
2 706172 • SENDER, Fuel Level 1
707076 • • MOUNTING KIT, Fuel level sender (S/N 95036 and Below) 1
3 703937 • FILLER CAP, Fuel tank 1
4 700506 • PLUG, Breather vent 1
5 701862 • PLUG, 3/8” NPT (Gas and Dual Fuel) 1
703593 • FITTING, Elbow 90° brass barb (Diesel) 1
6 701458 • FITTING, Connector #4 - #4 1
7 702313 • FITTING, Pipe 1/4” full coupling 1
8 702308 • FITTING, Needle valve 1
9 103339 • PLUG, 3/4” magnetic zinc plated 1
9
8
7
6
5
4
3
2
1
Ma40-616
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
OCT. 1999
