Skyjack SJKB-40-D - Figure 6-50. Descent Alarm Option

SECTION 6, Page 91
SJKB-40-D, SJKB-40-D/F
JUN. 1999
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.

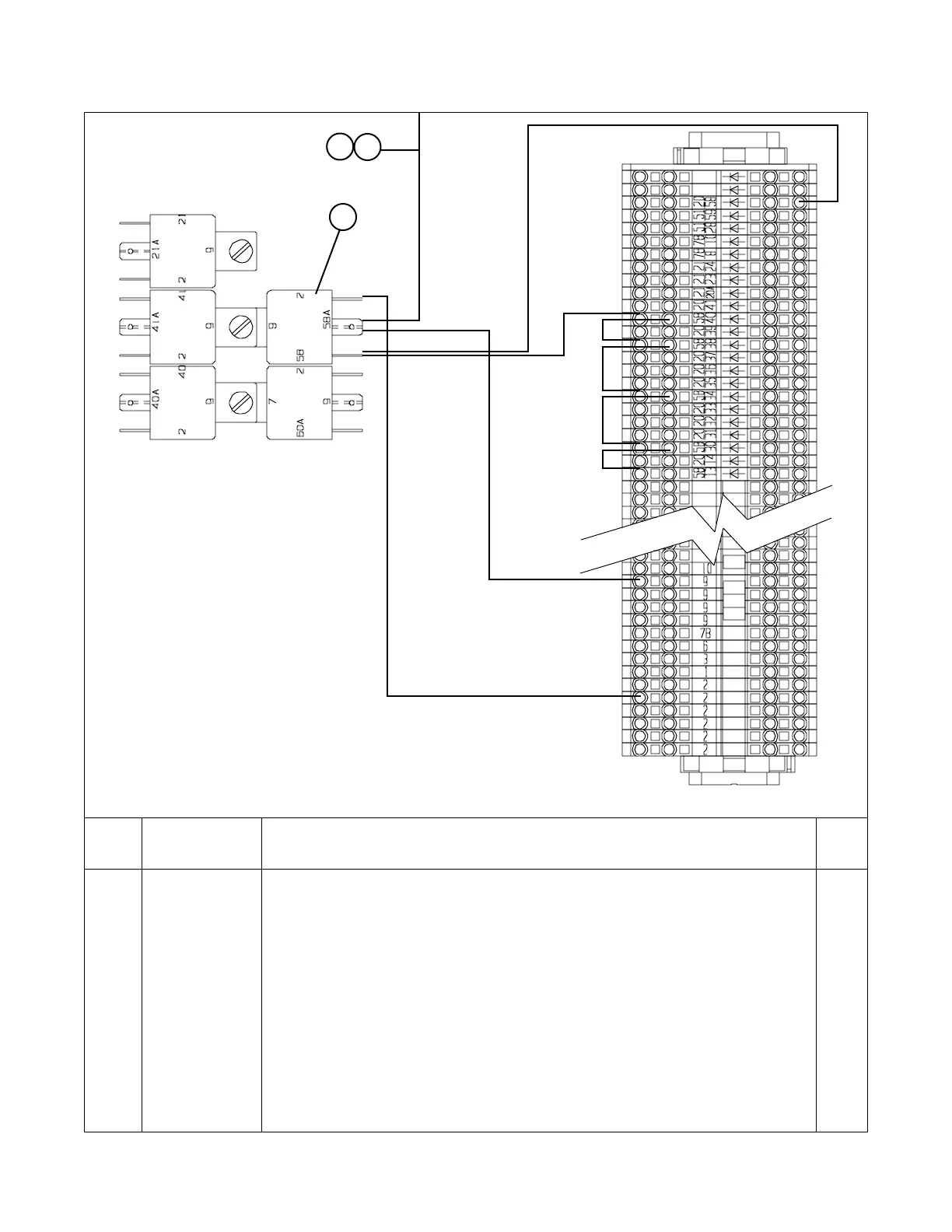

FIGURE 6-50. DESCENT ALARM OPTION
Ma40-638
707916 DESCENT ALARM OPTION -
1 703321 • ALARM (For location, refer to Figure 6-48.) 1
109210 • • TERMINAL, 16 ga.x5/16 ring 1
102955 • • TERMINAL, 16 ga.x#10 ring 1
104185 • • WASHER, Lock #10 4
104003 • • NUT, Hex #10-32 4
103692 • • BOLT, Mach. Hd. #10-32 4
2 704307 • • WIRE LOOM 60”
3 702353 • • WIRE, 16 ga. yellow/red 82”
4 701943 • RELAY, 12VDC, Sealed 1
702000 • • TERMINAL, 16 ga.x1/4 SPD F 4
702478 • • WIRE, 16 ga. yellow 5”
702465 • • WIRE, 16 ga. white 5”
2
4
3
TO ALARM
