Skyjack SJKB-40-D - Figure 6-14. Telescopic Boom Wear Pads

SECTION 6, Page 30
SJKB-40-D, SJKB-40-D/F
JUN. 1999

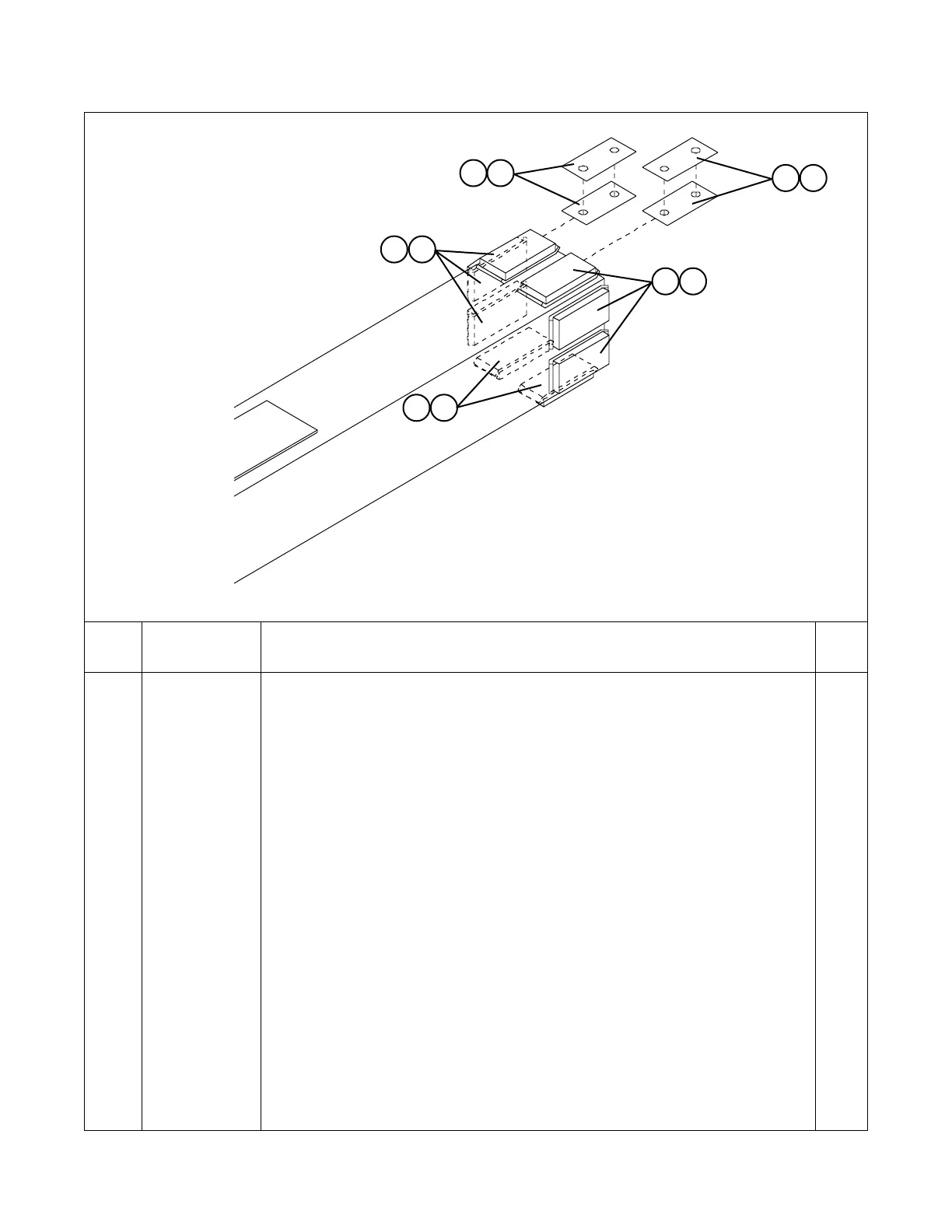

FIGURE 6-14. TELESCOPIC BOOM WEAR PADS
Ma40-611
1 700077 WEAR PAD 8
700579 • PIN, Roll 1/4x1/2” lg. 1
2 700098 BRACKET, Wear Pad 8
101632 • BOLT, HHCS 3/8-16x3/4” lg. 2
103472 • WASHER, Flat SAE 3/8” 2
103999 • WASHER, Lock 3/8” 2
3 700097 SHIM, Wear pad (.059 thk.) AR
4 700580 SHIM, Wear pad (.023 thk.) AR
43
43
1 2
1 2
1 2
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
