SECTION 6, Page 31SJKB-40-D, SJKB-40-D/F
JUN. 1999

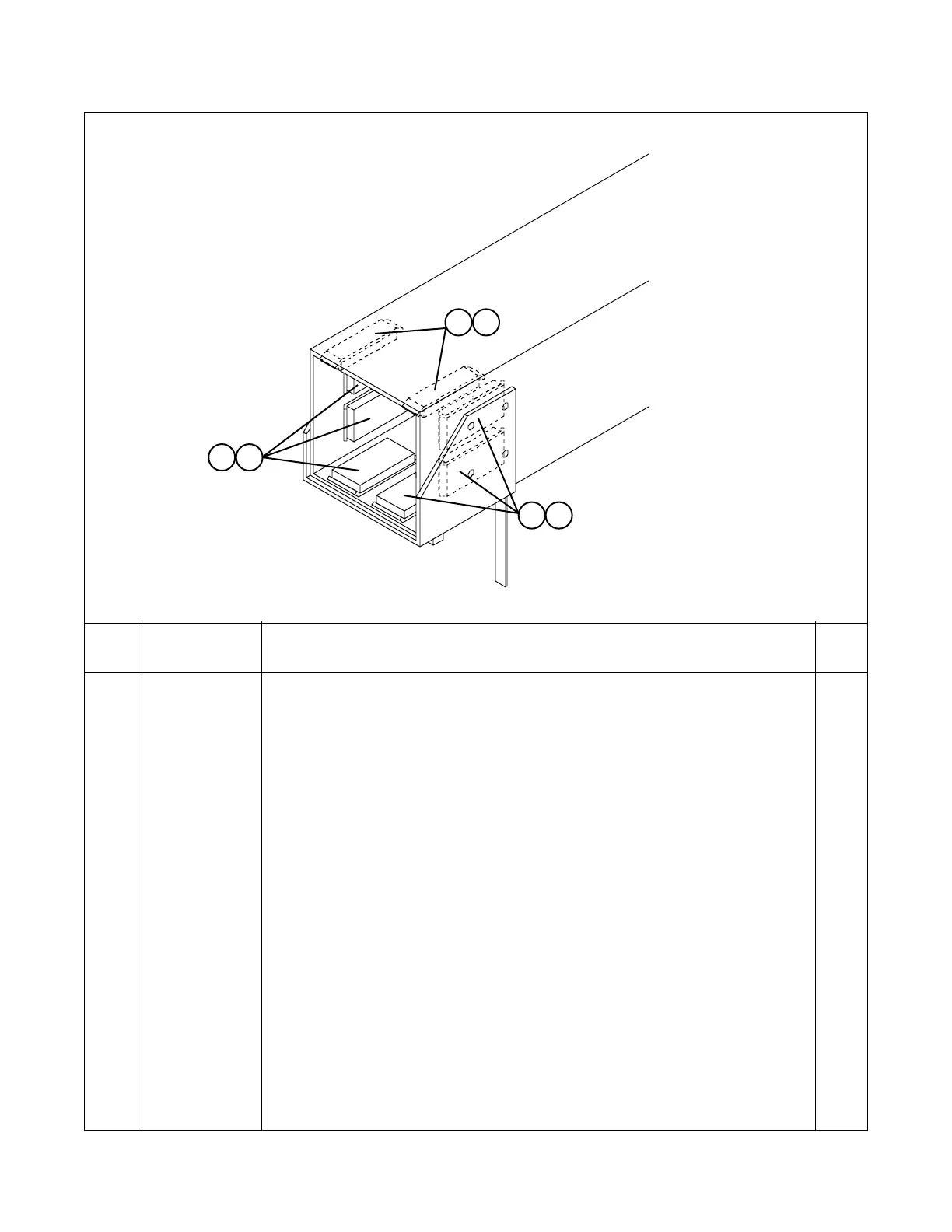

FIGURE 6-15. MAIN BOOM WEAR PADS
Ma40-612
1 700077 WEAR PAD 6
700579 • PIN, Roll 1/4x1/2” lg. 1
2 700098 BRACKET, Wear Pad 6
700097 • SHIM, Wear pad (.059 thk.) AR
700580 • SHIM, Wear pad (.023 thk.) AR
101632 • BOLT, HHCS 3/8-16x3/4” lg. 2
103472 • WASHER, Flat SAE 3/8” 2
103999 • WASHER, Lock 3/8” 2
3 701072 WEAR PAD 2
700579 • PIN, Roll 1/4x1/2” lg. 1
4 701071 BRACKET, Wear Pad 2
702196 • SHIM, Wear pad (.024 thk.) AR
103473 • BOLT, HHCS 3/8-16x1” lg. 2
103472 • WASHER, Flat SAE 3/8” 2
103999 • WASHER, Lock 3/8” 2
43
21
1 2
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
