Skyjack SJKB-40-D - Figure 6-56. Platform Tool Tray;Control Cover Option

SECTION 6, Page 100 SJKB-40-D, SJKB-40-D/FJUN. 1999

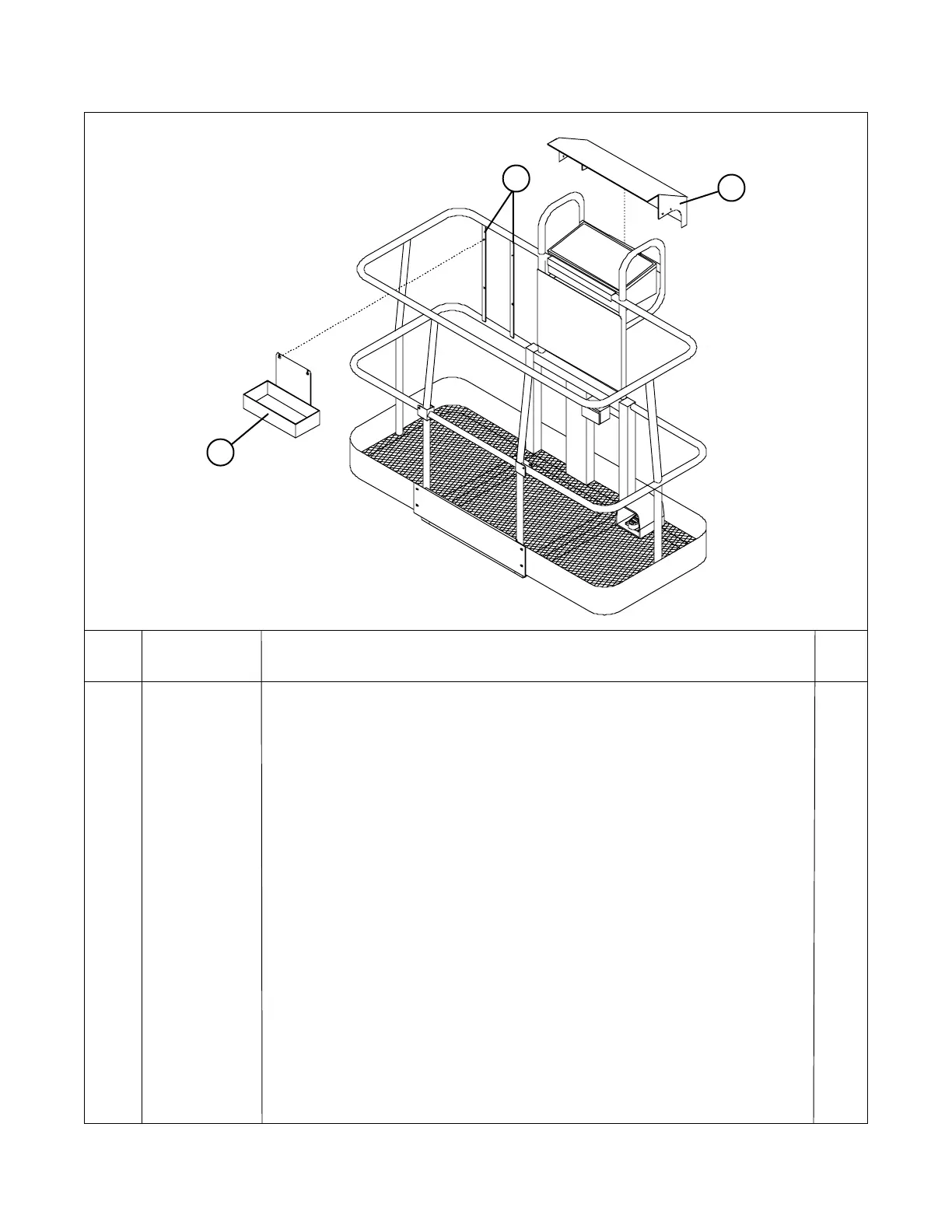

FIGURE 6-56. PLATFORM TOOL TRAY/CONTROL COVER OPTION
710060 PLATFORM TOOL TRAY OPTION (30x66 and larger only) -
1 200525 • TOOL TRAY WELDMENT 1
700583 • • NUT, lock nylon insert 1/4”-20 4
703273 • • BOLT, BHCS 1/4”-20x1.00 SS 4
2 710061 • TOOL TRAY SUPPORT 1
710427 CONTROL COVER OPTION -
3 710479 • CONTROL COVER WELDMENT 1
700583 • • NUT, lock nylon insert 1/4”-20 6
103995 • • WASHER, Flat 1/4” 12
103860 • • BOLT, HHCS 1/4”-20x1-3/4” 6
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
AUG. 1999
2
1
3
