Skyjack SJKB-40-D - Figure 6-52. Horn Option

SECTION 6, Page 93
SJKB-40-D, SJKB-40-D/F
JUN. 1999
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.

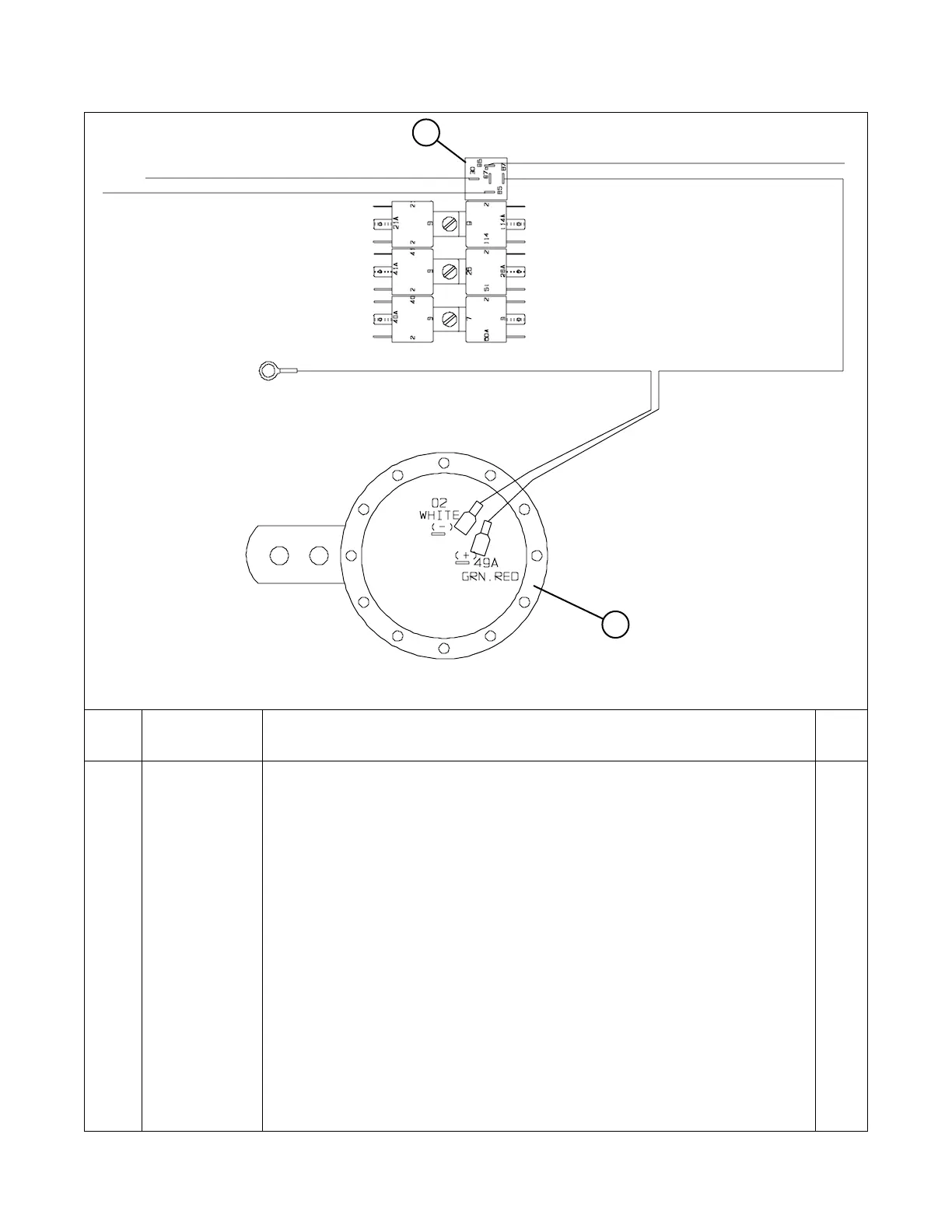

FIGURE 6-52. HORN OPTION
Ma40-661
709798 HORN OPTION -
1 703322 • HORN, 12V 1
103845 • • BOLT, HHCS 5/16-18 x 1/2” lg. 1
103996 • • WASHER, Flat 5/16” 1
103404 • • WASHER, Lock 5/16” 1
100397 • • NUT, 5/16-18 1
109210 • • TERMINAL, 16 ga. x 5/16 ring 1
702000 • • TERMINAL, 16 ga. x 1/4 SPD F 2
2 701943 • RELAY, 12V 1
702485 • • WIRE, 16 GA red 57”
702479 • • WIRE, 16 GA green/red 36”
702465 • • WIRE, 16 GA white 17”
702000 • • TERMINAL, 16 ga. x 1/4 SPD F 4
1
2
07A-RED TO N.C. ON KEYSWITCH
02-WHT TO GROUND 02
TERMINAL BLOCK
49-GRN/RED TO 49 TERMINAL BLOCK
49A-GRN/RED FROM
ENGINE HARNESS
02-WHT FROM GROUND STUD TO HORN
HORN MOUNTED ON
PLATE WITH GOVERNOR
