Skyjack SJKB-40-D - Page 203

SJKB-40-D, SJKB-40-D/FSECTION 6, Page 90
JUN. 1999
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.

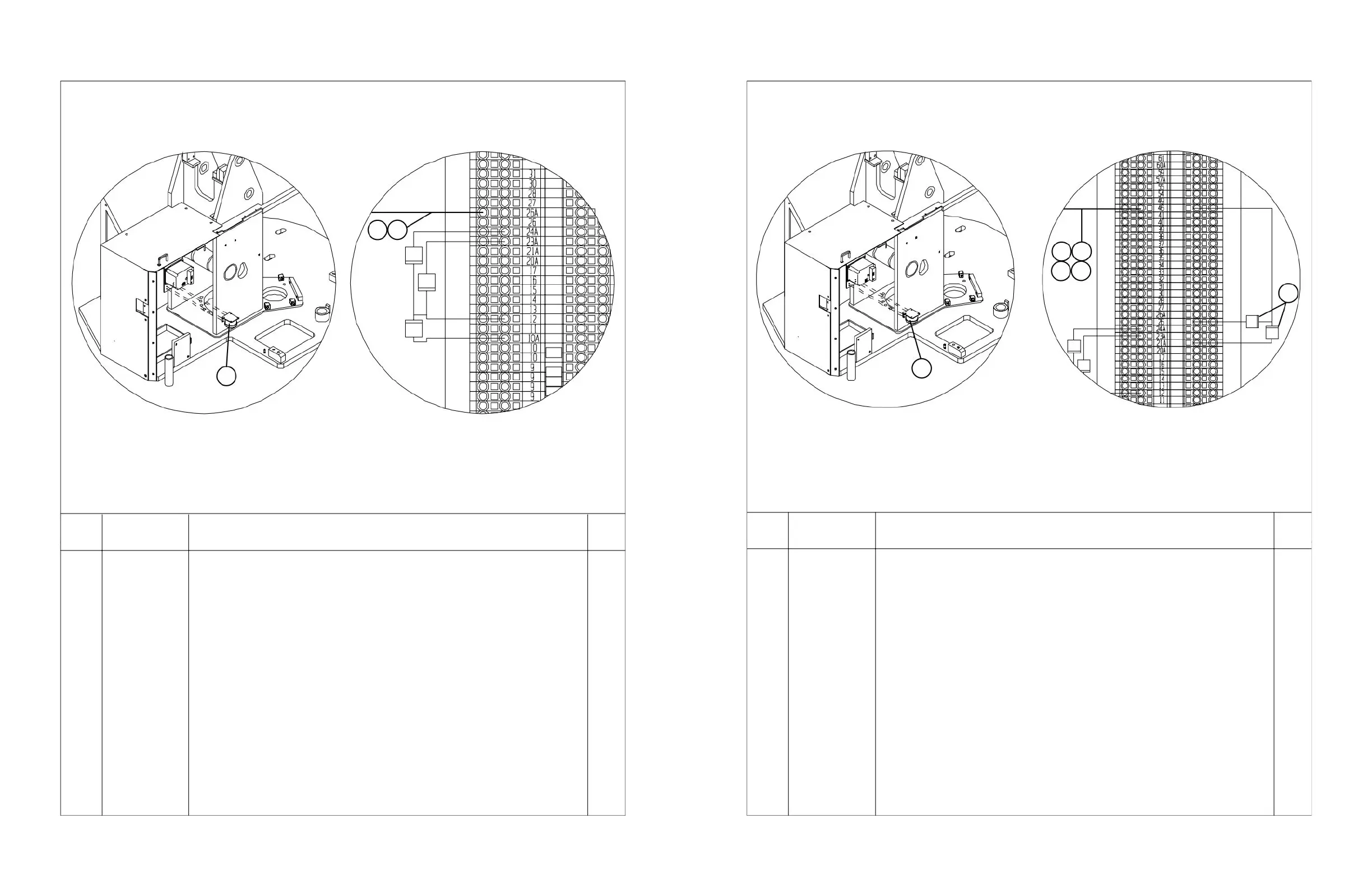

FIGURE 6-48. TRAVEL ALARM OPTION
Ma40-636
707912 TRAVEL ALARM OPTION -
1 703321 • ALARM 1
109210 • • TERMINAL, 16 ga.x5/16 ring 1
102955 • • TERMINAL, 16 ga.x#10 ring 1
104185 • • WASHER, Lock #10 4
104003 • • NUT, Hex #10-32 4
103692 • • BOLT, Mach. Hd. #10-32 4
2 704307 • WIRE LOOM 60”
3 702482 • WIRE, 16 ga. blue/yellow 72”
Terminal Block at Lower Control Panel
32
1
Turret
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
FIGURE 6-49. ALL MOTION ALARM OPTION
Ma40-637
707913 ALL MOTION ALARM OPTION -
1 703321 • ALARM 1
109210 • • TERMINAL, 16 ga.x5/16 ring 1
102955 • • TERMINAL, 16 ga.x#10 ring 2
104185 • • WASHER, Lock #10 4
104003 • • NUT, Hex #10-32 4
103962 • • BOLT, Mach. Hd. #10-32 x 1/2” lg. 4
2 704307 • WIRE LOOM 60”
3 702466 • WIRE, 16 ga. red/black 76”
4 102921 • DIODE, 6 amp/1000PIV 2
5 702465 • WIRE, 16 ga. white 50”
6 703926 • HEATSHRINK, 3/16” dia. black 3
D21A
D26A
4
32
1
Terminal Block at Lower Control PanelTurret
