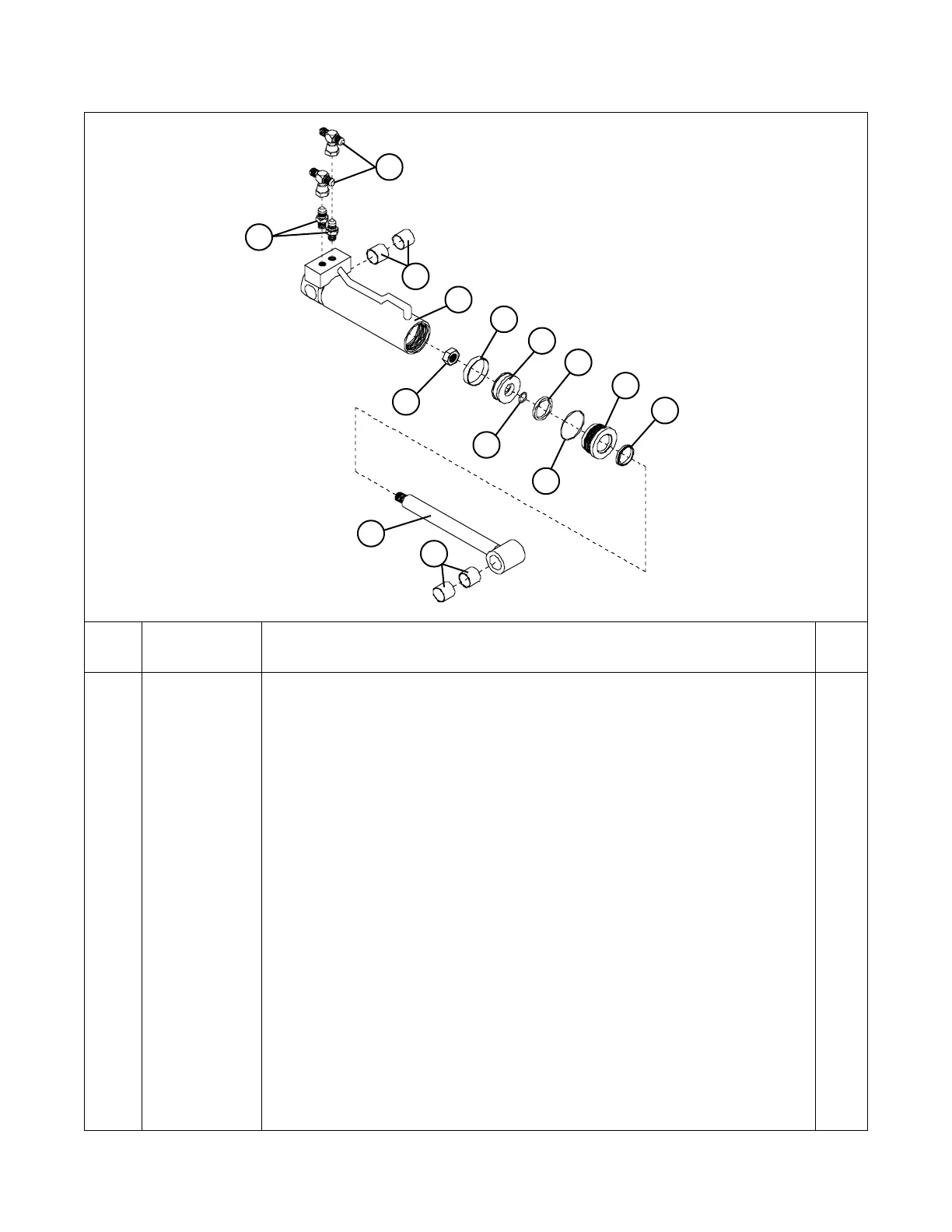

FIGURE 6-7. PLATFORM LEVELING MASTER CYLINDER ASSEMBLY
Ma40-605
700333 CYLINDER ASSEMBLY, Platform leveling master -
1 700334 • WELDMENT, Cylinder barrel 1
2 700337 • WELDMENT, Cylinder rod 1
3 700340 • GLAND, Cylinder 1
4 700341 • PISTON, Cylinder 1
*5 107935 • SEAL, Piston 1
*6 108798 • SEAL, Gland 1
*7 106449 • WIPER, Rod 1
*8 701964 • O-RING, Gland 1
*9 701633 • O-RING, Piston 1
10 103830 • NUT, Lock 5/8-11 1
11 100309 • BUSHING, 1” x 1-1/4" x 1" lg. 4
12 103069 • FITTING, Connector #6orb-#6 2
13 703223 FITTING, Tee #6swv-#4-#4 2
700454 KIT, Seal repair AR
706522 TOOL, Cylinder assembly 2” -
* Part of Seal Repair.
