SECTION 6, Page 25SJKB-40-D, SJKB-40-D/F
JUN. 1999
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.

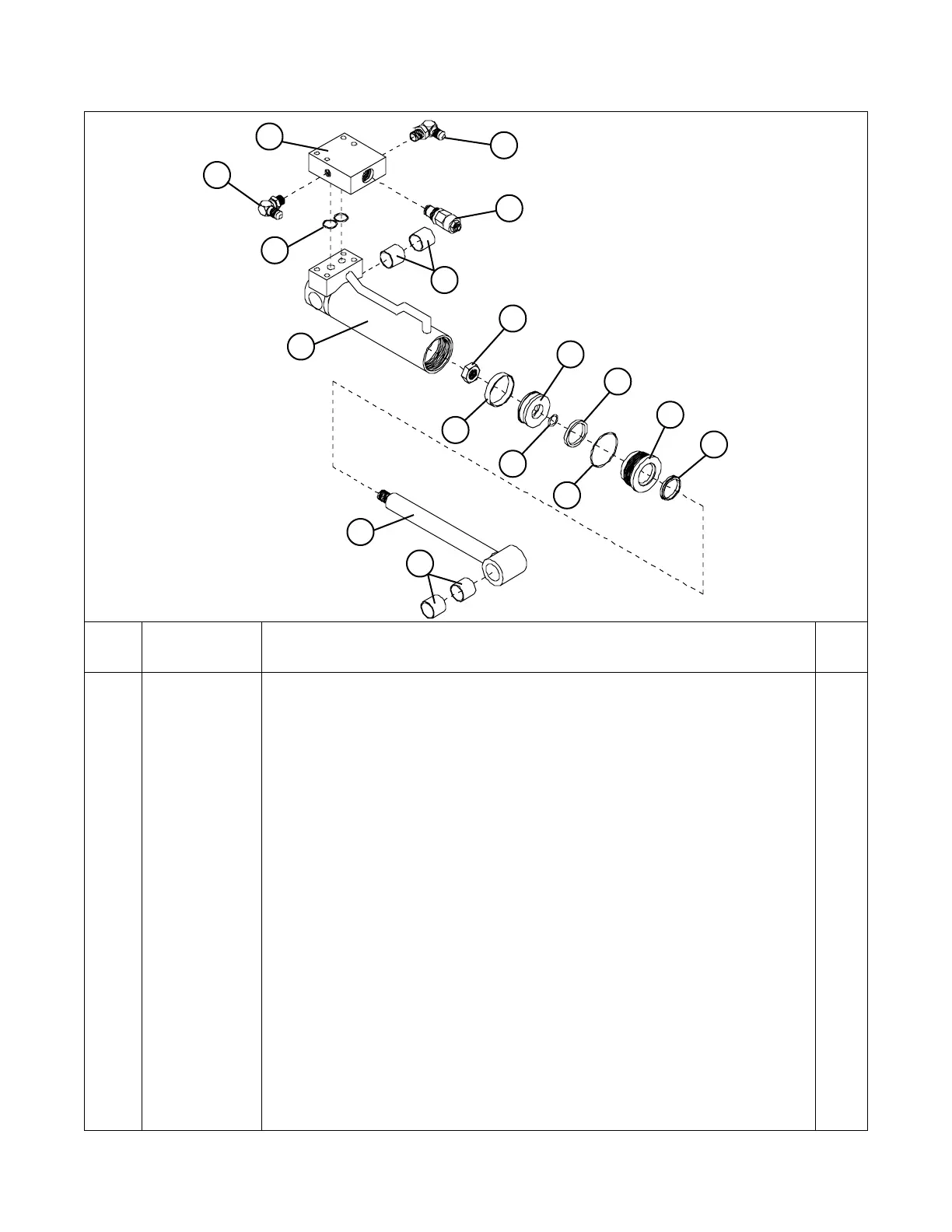

FIGURE 6-11. PLATFORM LEVELING SLAVE CYLINDER ASSEMBLY
Ma40-609
700388 CYLINDER ASSEMBLY, Platform leveling slave -
1 700389 • WELDMENT, Cylinder barrel 1
2 700600 • WELDMENT, Cylinder rod 1
3 700340 • GLAND, Cylinder 1
4 700341 • PISTON, Cylinder 1
*5 107935 • SEAL, Piston 1
*6 108798 • SEAL, Gland 1
*7 106449 • WIPER, Rod 1
*8 701964 • O-RING, Gland 1
*9 701633 • O-RING, Piston 1
10 103830 • NUT, Lock 5/8-11 1
11 100309 • BUSHING, 1” x 1-1/8" x 1" lg. 4
12 701999 FITTING, Elbow 90° #6orb-#4 2
13 700040 VALVE BLOCK, Slave cylinder 1
103885 • BOLT, HHCS 5/16-18 x 1.75 lg. 4
103404 • WASHER, Lock 5/16” 4
14 700568 VALVE, Counterbalance 1
15 701635 O-RING, Valve block 2
700454 KIT, Seal repair AR
706522 TOOL, Cylinder assembly 2” -
* Part of Seal Repair Kit.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
12
11
