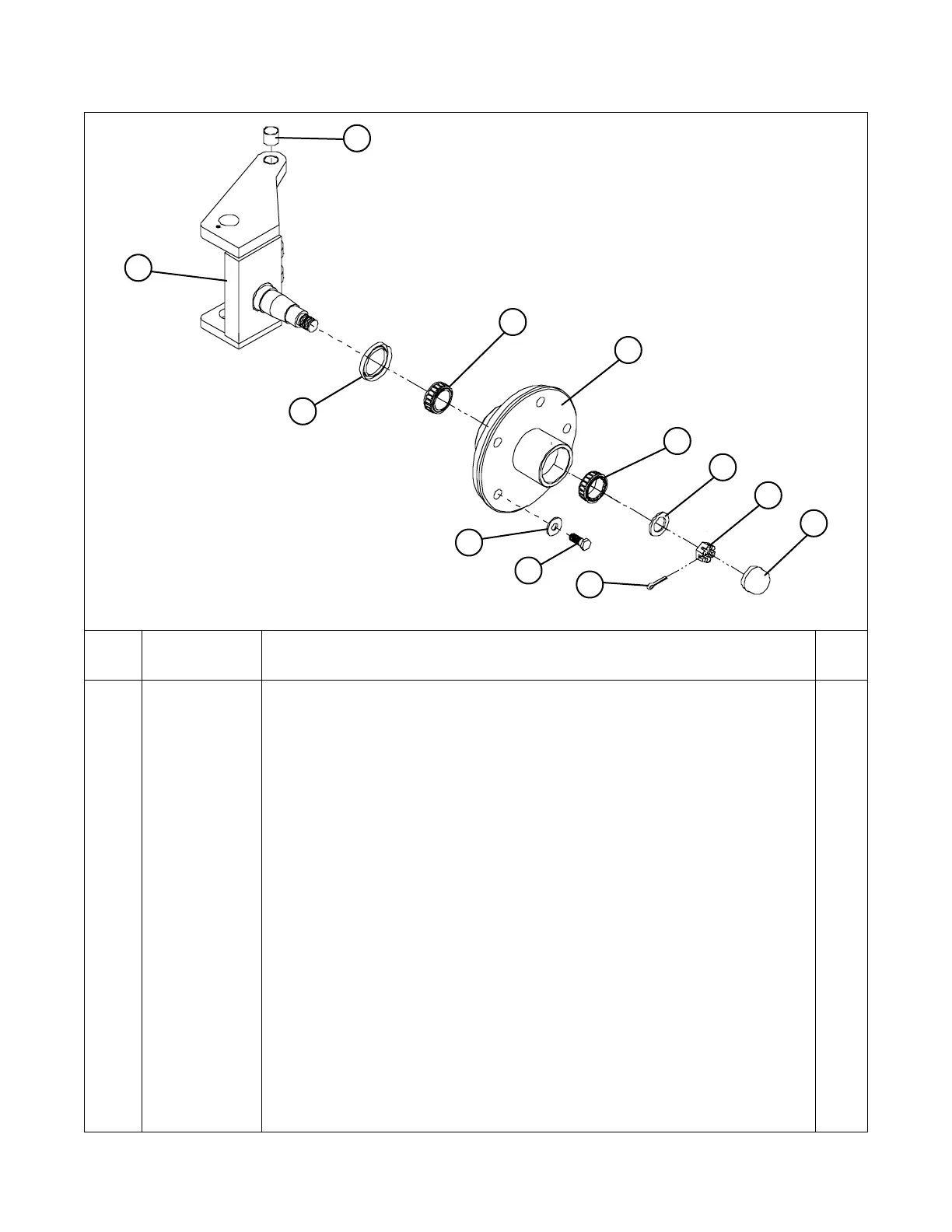

FIGURE 6-37. STEERING ASSEMBLIES (Standard 4x2)
Ma40-629
1 704740 SPINDLE WELDMENT, Left (w/bushing) 1
701096 SPINDLE WELDMENT, Right (w/bushing) 1
2 100309 • BUSHING, 1”x1-1/8”x1” lg. 1
(Ref.) 700463 HUB ASSEMBLY 1
3 700471 • BEARING, Inner 1
700472 • • BEARING CUP, Inner 1
4 700469 • BEARING, Outer 1
700470 • • BEARING CUP, Outer 1
5 700467 • DUST CAP 1
6 700464 • HUB 1
7 102646 • WASHER, Flat 1
8 104351 • NUT, Castle 1” 1
9 700508 • PIN, Cotter 3/16 x 2” lg. 1
10 700466 • SEAL, Grease 1
11 700468 WHEEL BOLT, 5/8-18x1-1/2 gr. 5 6
12 700782 WASHER, Flat SAE 5/8” hard 6
