Skyjack SJKB-40-D - Page 45

SECTION 3, Page 22 SJKB-40-D,SJKB-40-D/FJUN. 1999

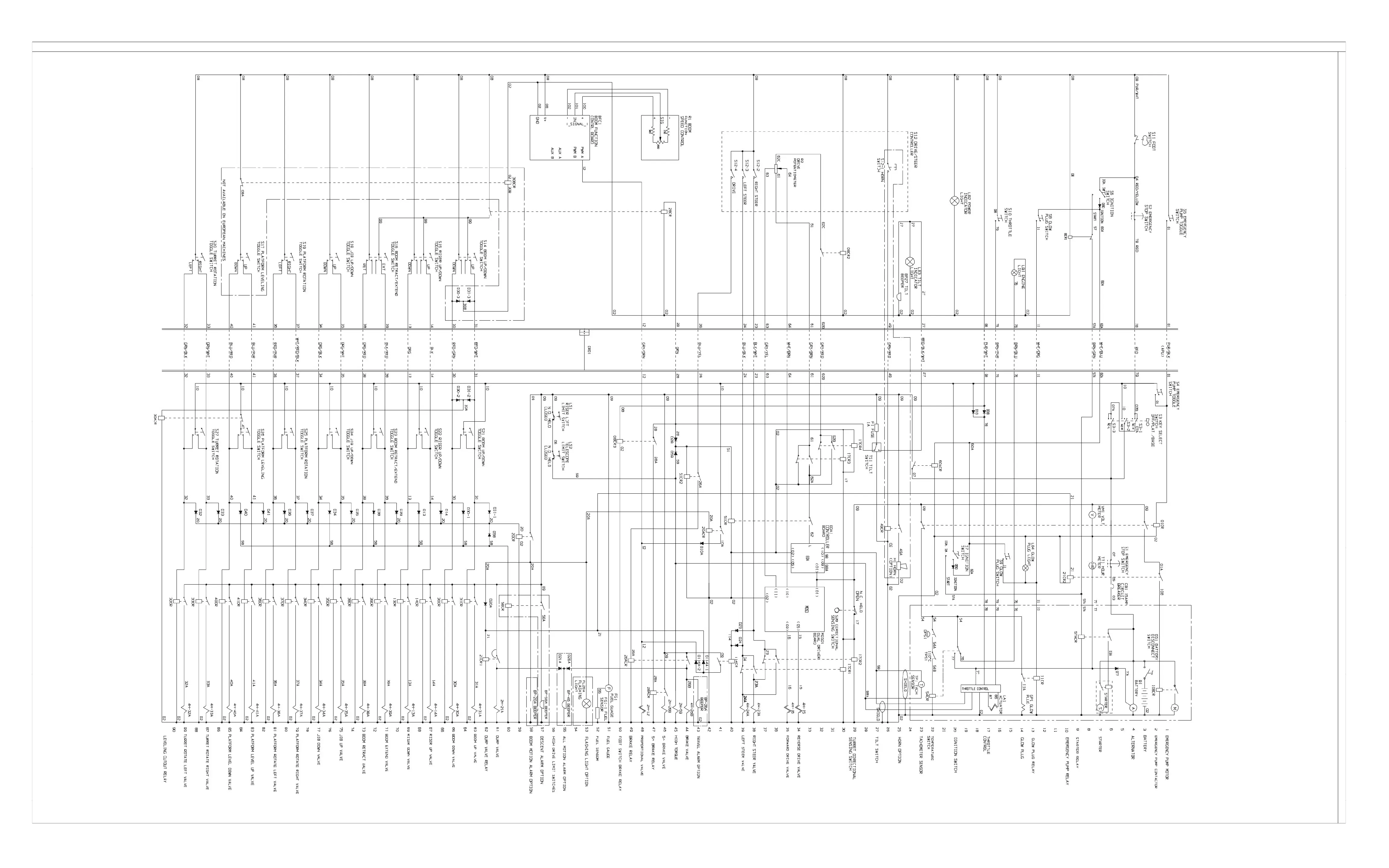

FIGURE 3-11. ELECTRICAL SCHEMATIC (Diesel)(S/N 95087 and below.)
706969AA
MLG KIHF JEDCBA
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
N
20 19 18 17 16 23 22 21
