SECTION 5, Page 8 SJKB-40-D, SJKB-40-D/F
JUN. 1999

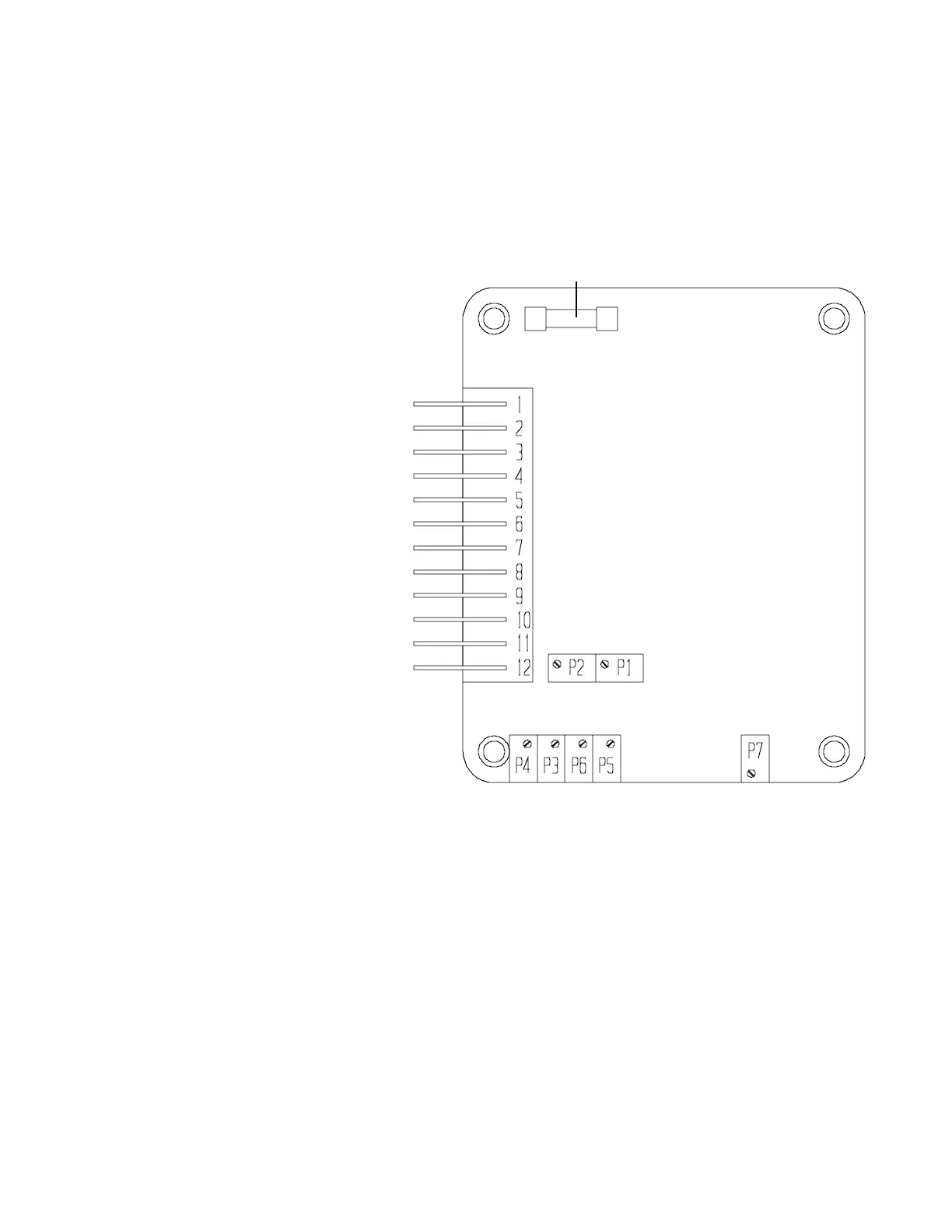

Figure 5-2. Dual Solenoid Driver (MDSD) Card.
MDSD - 2X/2
MA-66-502
12 VOLT INPUT
GROUND
WIRE 16 DRIVE FORWARD
NOT USED
WIRE 15 DRIVE REVERSE
NOT USED
NOT USED
NOT USED
NOT USED
WIRE 64 POTENTIOMETER WIPER SIGNAL
WIRE 63 POTENTIOMETER CENTER SIGNAL
NOT USED
FUSE
