Skyjack SJKB-40-D - Page 98

SECTION 5, Page 15SJKB-40-D, SJKB-40-D/F
JUN. 1999

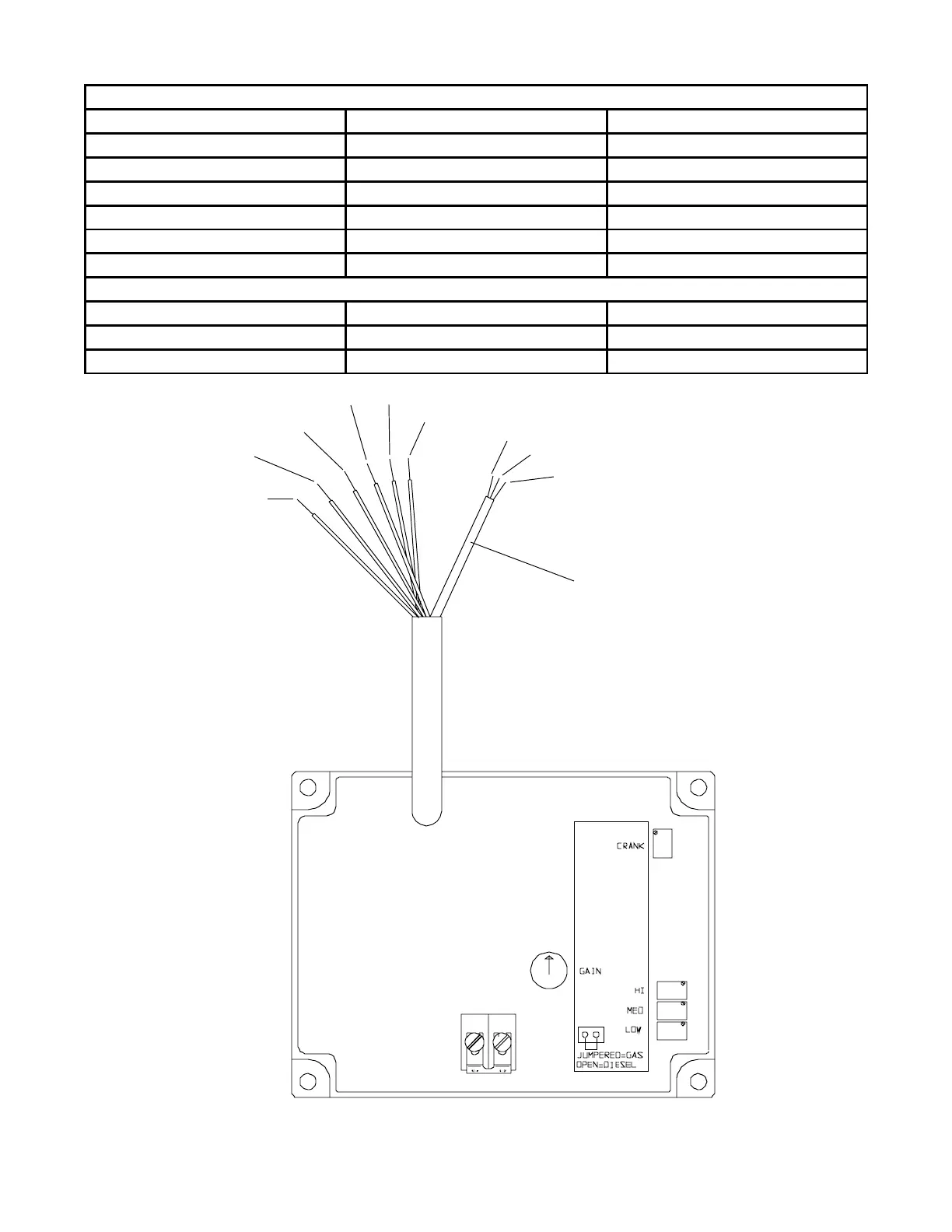

Figure 5-8. Governor Control Card
Ma40-517
WHITE 02
RED 77
PURPLE/BLUE 86
PURPLE/BLUE 87
WHITE 78
BLACK/WHITE 79
BLACK 98
WHITE 98A
SHIELD 02
SHIELDED WIRE
Mt40-507
COLOR CONVERSION CHART
BARBER/COLMAN COLOR SKYJACK COLOR FUNCTION
Red Brown/Gray 77 12 Volts
Black White 02 Ground
Purple Purple/Blue 86 Actuator
Purple Purple/Blue 87 Actuator
Black/White Brown/Purple 79 High RPM Signal
White Red/Blue 78 Mid RPM Signal
SHIELDED WIRES
Bare Shield White 02
Black Black 98
White White 98A
