SmartRecorder™ 4 Troubleshooting Guide
SR4 Primary System Components
A typical system consists of a SmartRecorder 4 Controller box, a Forward-facing Camera, Cab-facing Camera,
Sensor Bar/Antenna, mounting brackets, cables, and a Keypad.

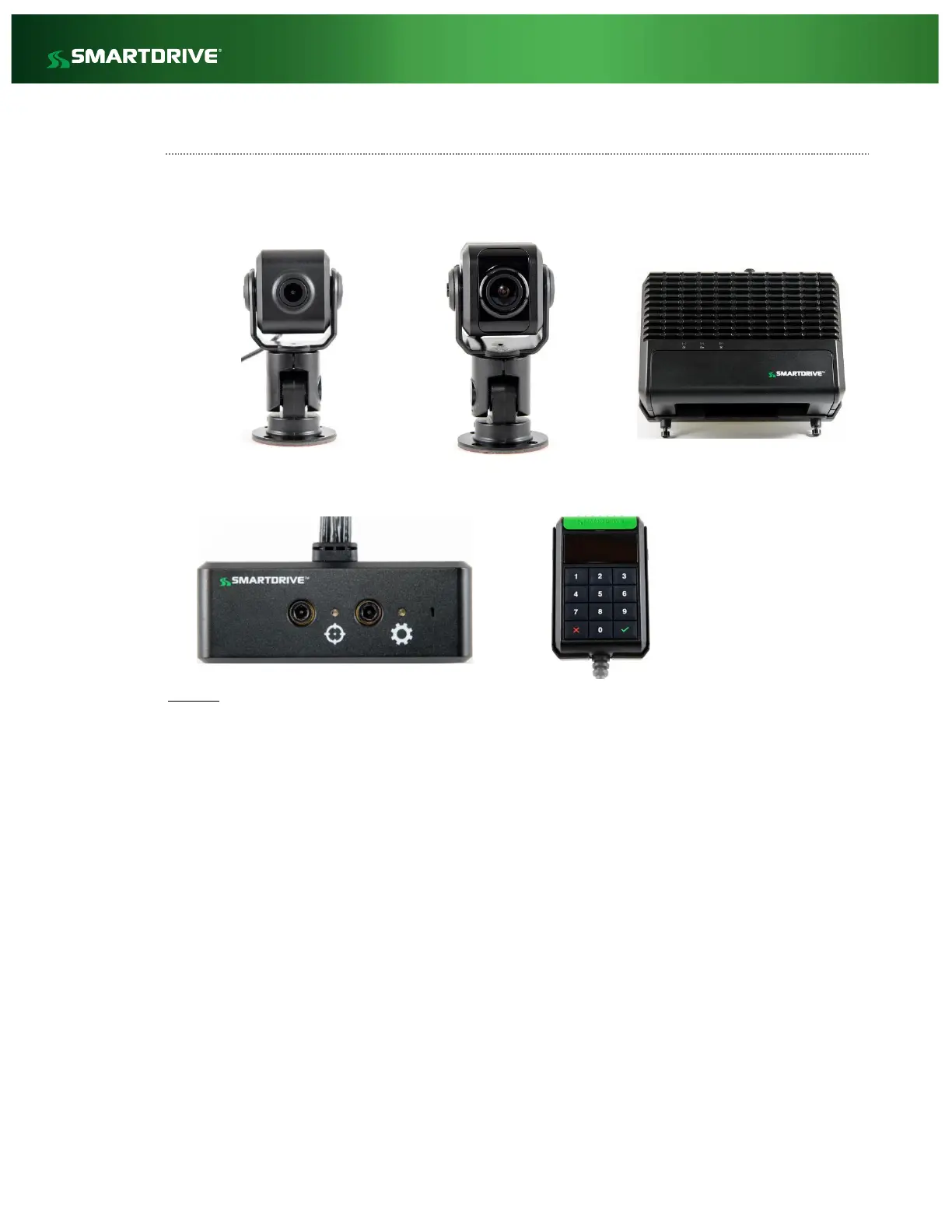

Forward-facing Camera Cab-facing Camera SR4 Controller Box
Sensor Bar/Antenna Keypad
Cabling
 1 ECU and Power Cable (ECU connector type, some installations may not include this connection)
The following are optional components that may be installed depending on the service and configuration
purchased.
 SR4 Wireless Keyfob (Not yet available)
 Expansion Port Cable
 Ethernet Cable
 External GPS “PUCK” Style Antenna
 SR4 Remote Push Button

SmartDrive Systems SR4 Specifications

General

Brand	SmartDrive Systems
Model	SR4
Category	Measuring Instruments
Language	English
