SmartRecorder™ 4 Troubleshooting Guide

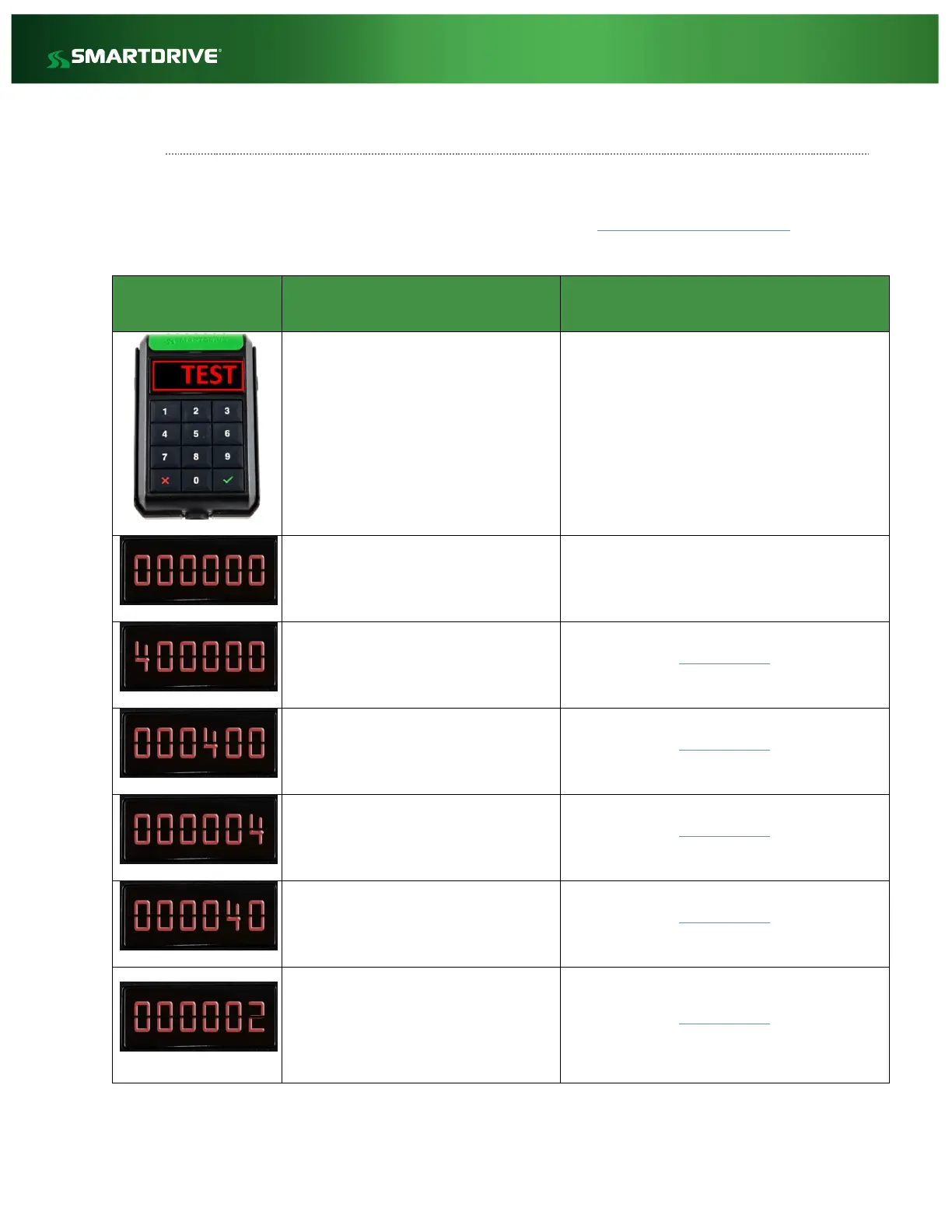

SR4 Fault Code Legend (Keypad Codes)
The Keypad will display ALL fault codes at once when diagnostic mode has completed. Fault codes
appearing on the Keypad are cumulative (i.e. Sensor Bar Not Found (020000) + Ignition Off (010000)
= 030000). Determine resulting fault codes and reference the Fault Code Troubleshooting section to
perform required troubleshooting steps.
Code Fault
Troubleshooting Steps Required
Diagnostic Mode has initiated
Diagnostic Mode has completed with no
faults
Code - 000000
N/A
Modem Fault (this test only runs on Cellular
units)
Code - 400000
Controller Fault
Extended Storage Media Fault
Code - 000400
Controller Fault
Audio Fault (this test only runs when audio
set point is enabled)
Code - 000004
Controller Fault
Bluetooth Fault
Code - 000040
Controller Fault
Analog Camera Capture Circuit (this test only
runs when Analog Cameras are enabled)
Code - 000002
Controller Fault
