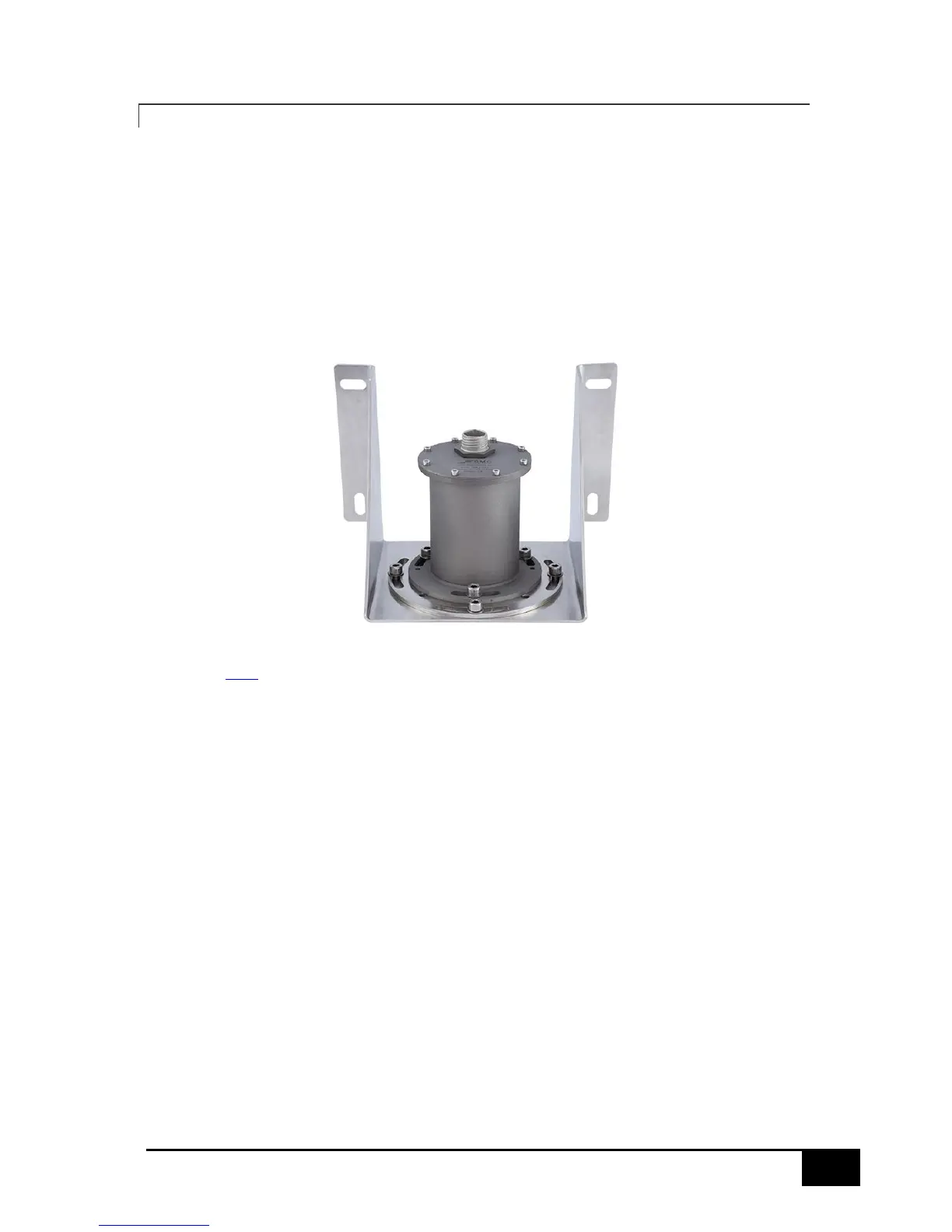

3.2.1 MOUNTING BRACKET - OPTIONAL
An optional mounting bracket is available, designed to simplify wall mounting installations combined
with easy motion sensor alignment. One advantage with the mounting bracket is that the motion
sensor can be removed for servicing or recalibration and repositioned in exactly the same position.
The bracket base plate has two pins that correspond to two of the notches in the Motion sensor
base. Alignment adjustments can then be made by rotating the bracket adapter.
The mounting bracket is delivered with a mounting adapter and screws for fixating the motion sensor
to the bracket. The mounting bracket is produced in Stainless steel 316.
The adapter, included with the bracket, allows 45 degrees of rotational adjustment.
See chapter 3.6.5 for details of the mounting bracket dimensions.
