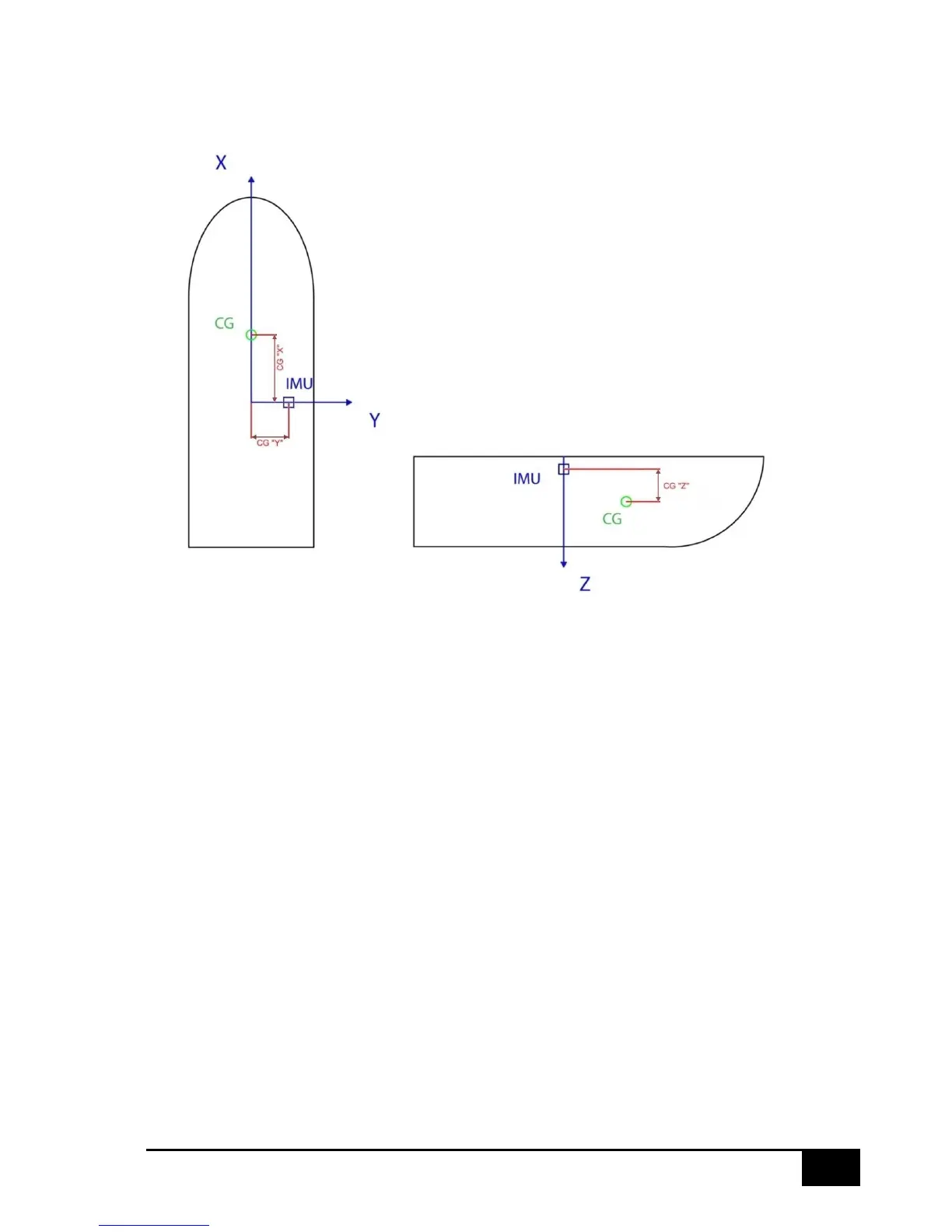

The values are entered as follows:
Lever Arm X is the fore aft distance in meters between the Motion Sensor and the Lever Arm
position. Where a positive distance represents that the Lever Arm measurement point is located fore
of the Motion Sensor physical location.
Lever Arm Y is the sideways distance in meters between the IMU and the CG. Where a positive
distance represents that the Lever Arm measurement point is located to the port of the Motion
Sensor physical location.
Lever Arm Z is the vertical distance in meters between the IMU and the CG. Where a positive
distance represents that the Lever Arm measurement point is located above the Motion Sensor
physical installation location.
