SMC Networks ZSE80(F) - [F 2] Setting of OUT2; OUT2 output configuration

-28-
PS##-OMM0003-A

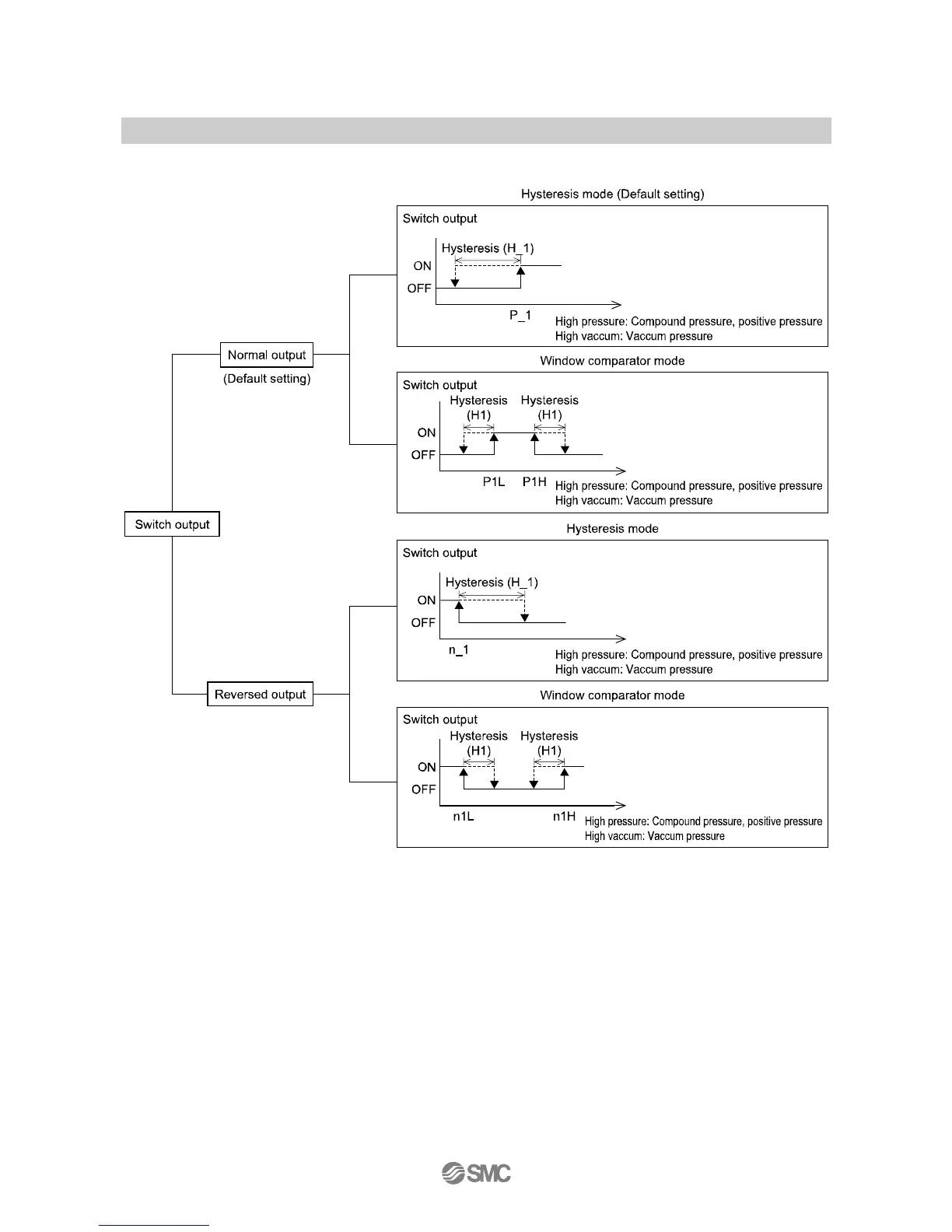

•List of output modes
If the point where the switch output is changed is out of the set pressure range due to selection between
normal and reversed output, hysteresis is automatically compensated.
∗: The above figure shows the operation at OUT1.
For the operation at OUT2, all "1" shown in the above figure is changed to "2". (Ex) P_1 → P_2
