7.2.1 LIQUID DETERGENT INTAKE SYSTEM
Each peristaltic pump is complete with a detergent intake system.
A - Configuration with LEVEL SENSOR - STANDARD for Tethys D60 (optional for Tethys T60):
1. Suction nozzle with integral level sensor and tapered rubber support for fitting onto the can.
2. Silicone hose for connection between intake pipe and peristaltic pump.
3. Detergent intake filter, fitted directly on the suction nozzle pipe.

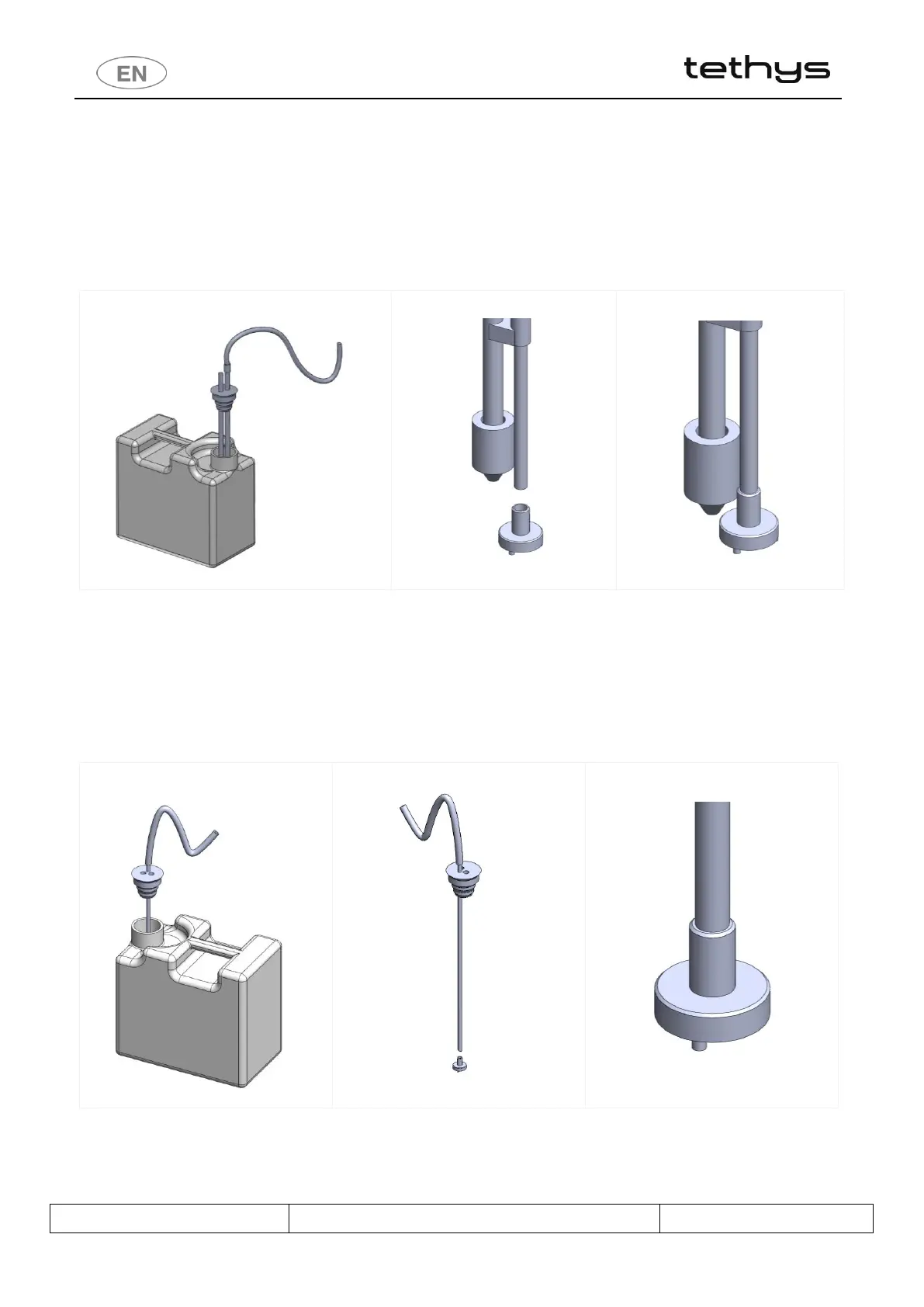

fig. 32 – Configuration with LEVEL SENSOR, Tethys D60: Detergent suction nozzle with integral level sensor. The suction nozzle is complete with
filter: make sure that the filter is always correctly positioned to ensure no lumps are drawn in.
B - Basic Configuration (Intake system installed by default on Tethys T60, Tethys T45):
1. one stainless steel intake pipe, to suck in detergent from the can;
2. a support, a conical rubber-fitting support, to position the intake pipe correctly;
3. the silicone hose for connection between stainless steel intake pipe and peristaltic pump.
4. Detergent intake filter, fitted directly on the stainless steel pipe.
fig. 33 – Detergent intake STANDARD Tethys T60 version. Fitting the detergent intake pipe to the can. Fit the rubber
cap over the top of the can for a perfect, secure connection. The pipe is supplied complete with intake filter.
