11.2 WATER DRAIN
Appliance drain hoses:
Rubber fitting for hose connector diameter 21mm (1/2").
WATER DRAIN CONNECTION
The appliance is equipped with two drain hoses. The drain hoses are identified as:
- d - appliance drain hose – d (drain)
- cd - steam condenser drain hose – cd (condenser drain)
The diagram and summary table are provided below.

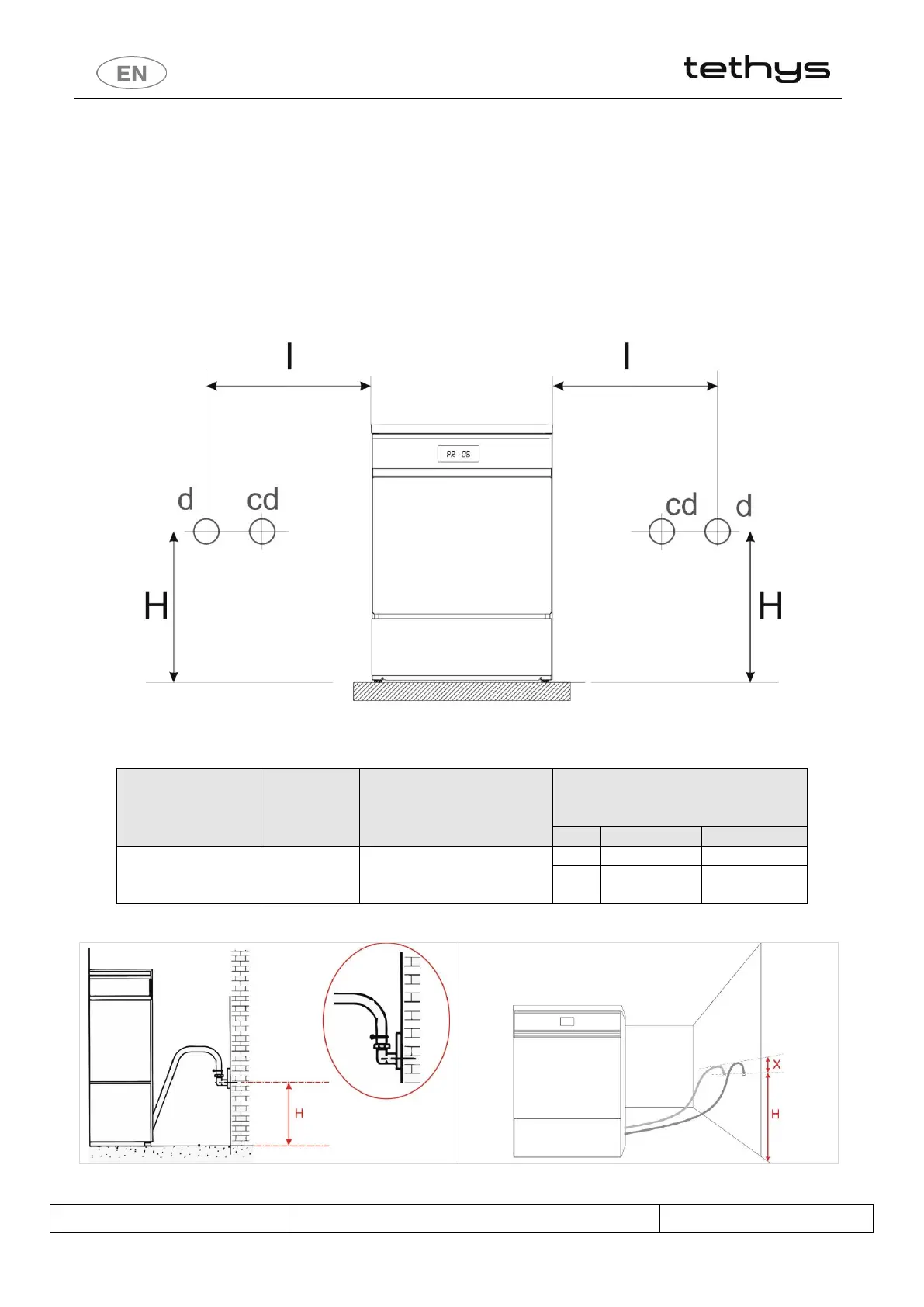

fig. 46 – Diagram. The water drain connections may be on the right or left of the appliance, always considering the maximum distance “I”.
MODELS
No. OF
DRAIN
HOSES
Distance "I"
Max. Distance between
drain and side of appliance
[cm]
DRAIN TYPE AND HEIGHT “H”
ABOVE APPLIANCE INSTALLATION
SURFACE [cm]
Type
Hmin
Hmax
Tethys D60
Tethys T60
Tethys T45
2
50
d
65
80
cd
65
80
fig. 47 – Drain connection. 65 cm < H < 80cm, X < 20cm. N.ro 2 drain pipes are provided.
