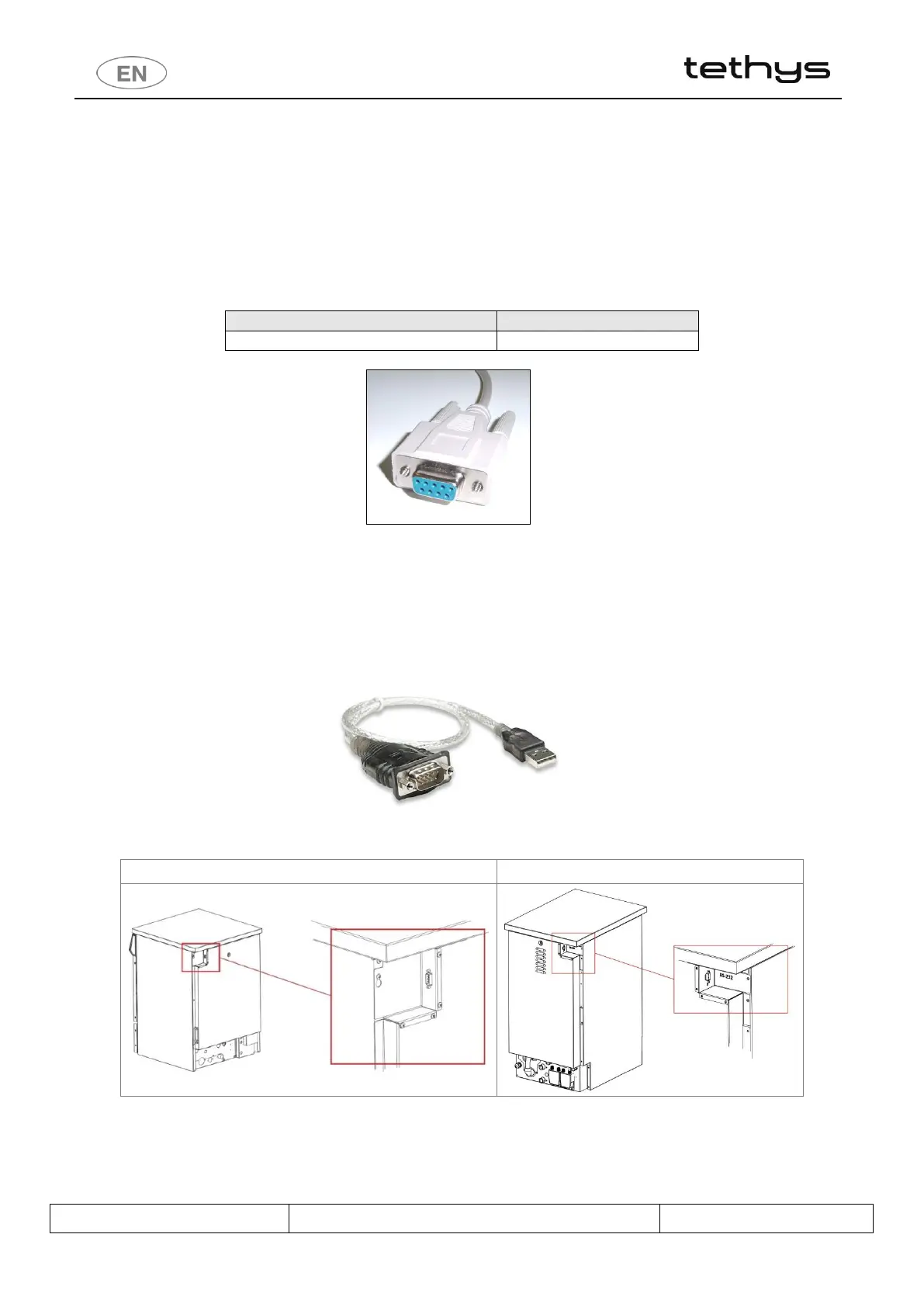

12 DATA CONNECTION
The device has a data communication port which can be used for one of the following functions:
1. Connection to the optional external printer. The printer produces a brief report with the key cycle data.
2. PC connection for digital data storage and interaction with the appliance by means of the “TRACELOG”
program.
Reference should be made to the specific instructions of the above accessories for any connection details.
The RS-232 cable used for the connection must have the following characteristics:
CONNECTION TYPE
CONNECTOR
Crossover (Null Modem)
Female/Female
fig. 49 – RS-232 female connector.
Not all PC models have serial ports.
In these cases it is necessary to use an accessory USB / serial converter.
Pay attention in the choice of the accessory, to the following characteristics:
• Converter: USB port, Type B female -> RS232 ports, 9-pin male.
• Device drivers compatible with the operating system of your PC.
Contact your dealer for advice / clarification.
fig. 50 – USB / serial converter – guideline illustration.
Tethys D60, Tethys T60 - RS-232 port
Tethys T45 - RS-232 port
fig. 51 – Position of the RS-232 serial port on the rear of the device
