10.2 PRODUCT DIMENSIONS - MEASUREMENTS IN MM
10.2.1 Tethys D60, Tethys T60
The appliance can be requested with top for built-in installation for special requirements.
In this case, the product is 30 mm shorter than the stated height.

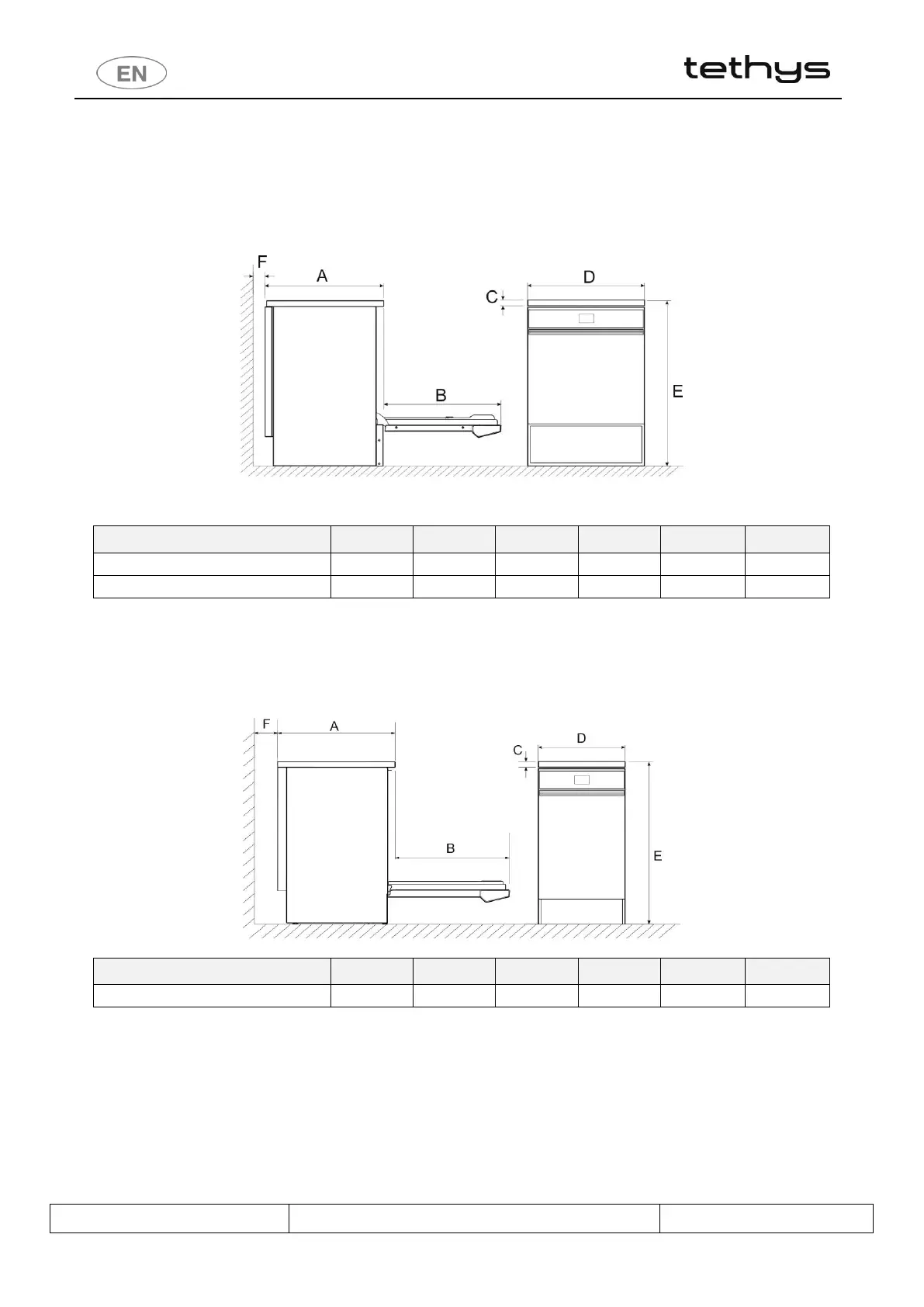

fig. 41 – Product overall dimension diagram
VERSION
A
B
C
D
E
F
STANDARD
600
600
30
600
850
> 10
STANDARD + AQUASTOP
600
600
30
600
857
> 10
10.2.2 Tethys T45
The appliance can be requested with top for built-in installation for special requirements.
In this case, the product is 20 mm shorter than the stated height.
VERSION
A
B
C
D
E
F
STANDARD
620
600
30
450
850
> 10
10.3 POSITIONING THE APPLIANCE
IMPORTANT
The appliance must be positioned with its back near a wall (with a gap of at least 10 mm) and must be installed by an
authorised engineer.
The installer engineer is responsible for the correct operation of the appliance after installation and must also
provide the user with all information required for its correct use.
During installation, the protective film must be removed from the steel outer surfaces.
