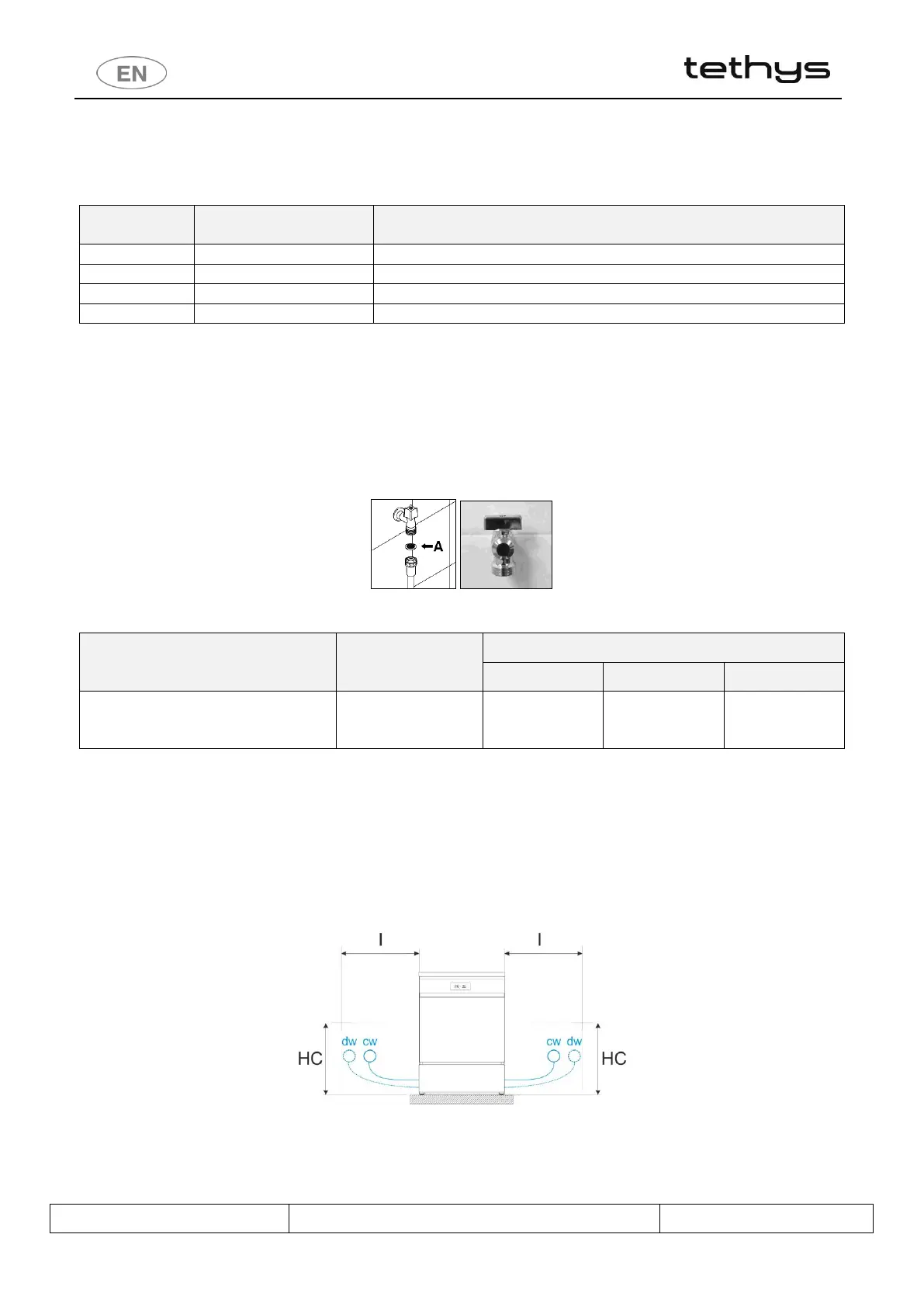

11 WATER CONNECTION FITTINGS
Key to abbreviations used for water connections.
CODE
FILLING/DISCHARGE
WATER TYPE
cw
INTAKE
cold water hose - cw (cold water)
dw
INTAKE
pressurised demineralised water hose - dw (demi water)
d
DRAIN
appliance drain hose - d (drain)
cd
DRAIN
steam condenser drain hose - cd (condenser drain)
11.1 WATER INTAKE
11.1.1 WATER INTAKE CONNECTION
The appliance has two intake hoses, for mains and demineralised water.
The hoses are designed to be connected to taps with 3/4'' gas threaded attachment.
Use the filter provided, "A" in the illustration, when connecting the end of the intake hose.
fig. 44 – Fit the filters provided when connecting the intake hose.
MODELS
NUMBER
CONNECTIONS
CONNECTION TYPE
cw
dw
hw
Tethys D60
Tethys T60
Tethys T45
2
1
1
---
11.1.2 WATER SUPPLY TAP POSITION
Water supply taps must be positioned close to the appliance, in a position accessible to the user. With reference to
the diagram below, the recommended measurements are:
I <50 cm
HC < 100 cm
There are no particular height requirements for the position of the water supply taps, but bear in mind that the hoses
supplied are about 2 metres long.
fig. 45 – Diagram. The water supply connections may be on the right or left of the appliance, always considering the maximum distance “I”.
Note to prevent the risk of clogging or damage: if the water pipe is new or has been unused for a long time, before
connecting the water supply make sure that the water is clear and free of impurities.
