Snapmaker Artisan - Page 28

24-25
Machine Assembly

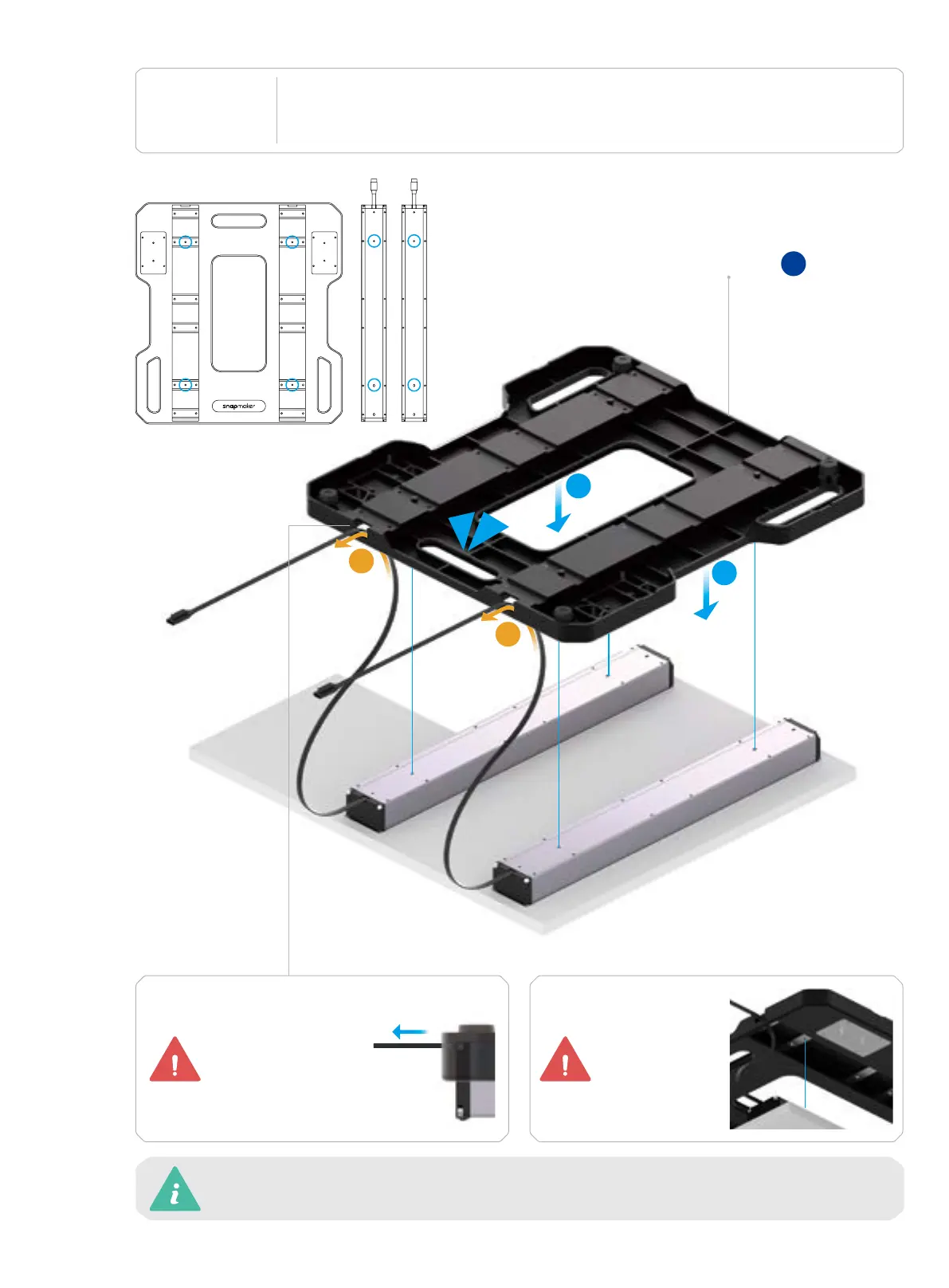

Thread the Y-axis cables through the cable holes of the
base plate, and insert the dowels of the base plate into
the dowel holes of the Y axes.
Base Plate × 1
The dowel can lock the relative position of two parts, avoiding possible misalignment during
the assembly.
04
/22
Make sure to
fully insert the
dowels into the
dowel holes.
Straighten the
Y-axis cable to avoid
its twisting between
the Y axis and the
base plate.
2
2
1
1
Straighten
A9
