Snapmaker Artisan - Page 52

48-49
Enclosure

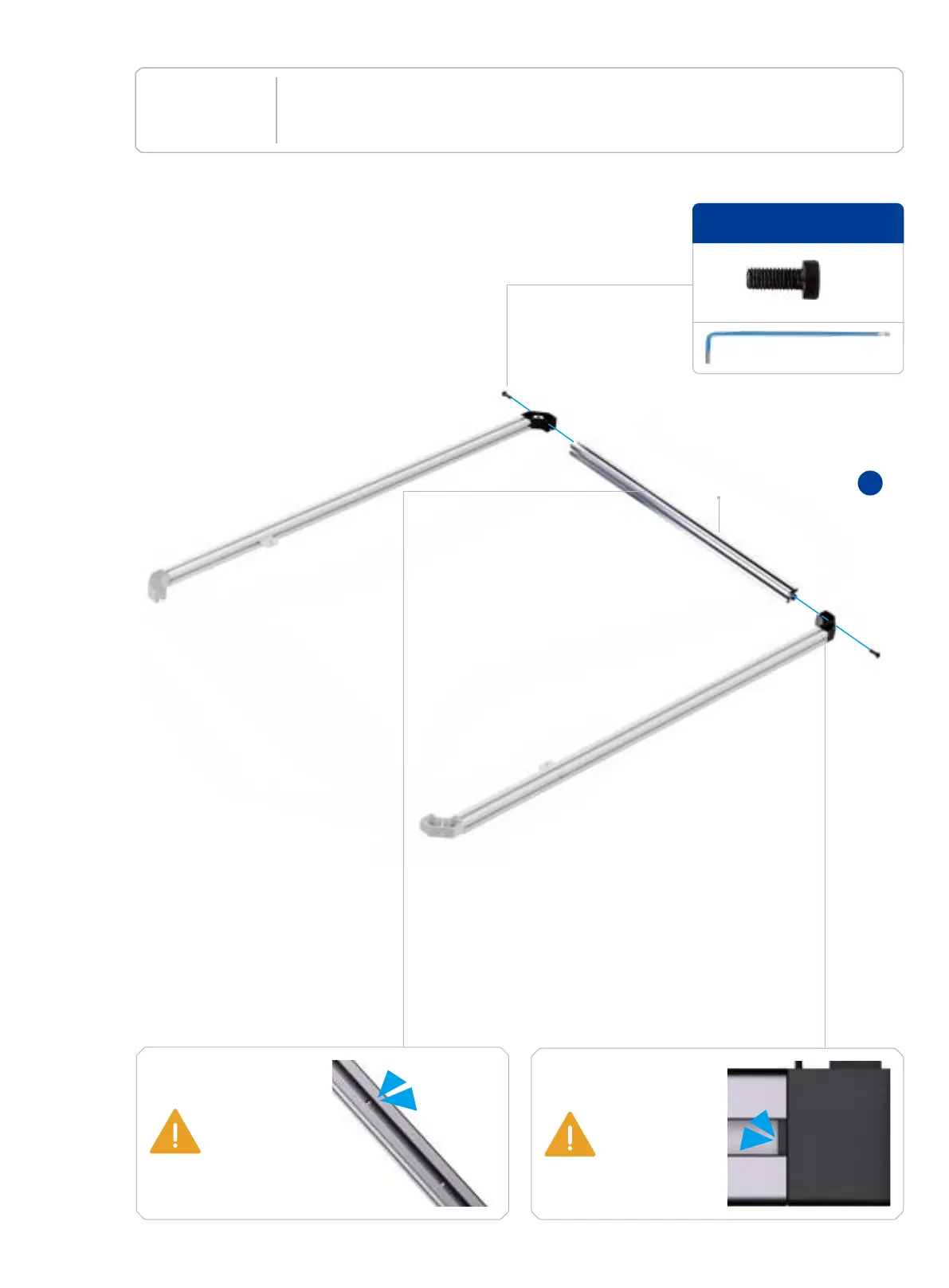

Attach the short beam (rear) to the profile connectors.
03
/28
Make sure
the two
screw holes
of the short
beam (rear)
are oriented
vertically.
M5 × 12 Screw × 2
1:1
Short Beam (rear) × 1
Make sure
the limit bars
of the profile
connectors
are inside the
beam grooves.
B1
