UNPACKING AND INSTALLATION
OF THE UNIT
The  lter level indicates the activation delay: 1 immediate activation (1 seconds minimum communication
time), 2 10 s delay, 3 30 s delay.
(1) If the external E.S.D. button is not used, always insert a jumper to short circuit input IN 1
A
2
3
4
1
OUT
OUT

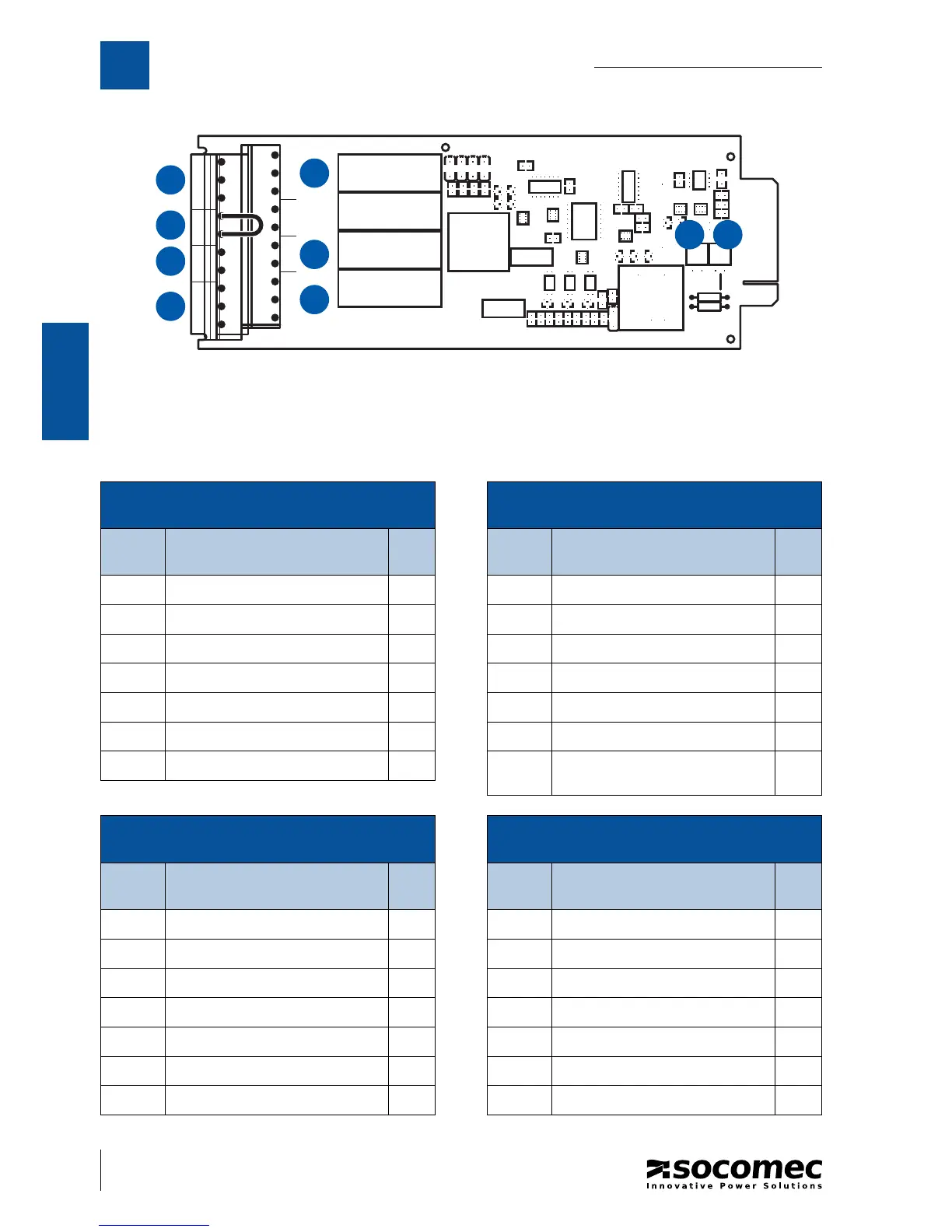

0 1 2 P3
C2 NO2 NC2 IN1- IN1+ IN3- IN3+ C3 NO3 NC3
C1 NO1 NC1 IN1- IN1+ IN2- IN2+ C4 NO4 NC4
OUT1
OUT2
DIP1 DIP2
IN3
OUT3
IN1
IN2
OUT4
STANDARD confi guration (default)
DIP1: OFF - DIP2: OFF
IN/OUT Description
Filter
level
OUT 1 General alarm 2
OUT 2 Battery discharging 3
OUT 3 Battery low or imminent stop 2
OUT 4 UPS on by-pass 2
IN 1
(1)
E.S.D. 1
IN 2 Supply from GenSet 1
IN 3 Isolation controller 2
SAFETY confi guration
DIP1: OFF - DIP2: ON
IN/OUT Description
Filter
level
OUT 1 General alarm 2
OUT 2 E.S.D. activation 1
OUT 3 Battery low or imminent stop 2
OUT 4 E.S.D. activation 1
IN 1
(1)
E.S.D. 1
IN 2 External alarm A39 2
IN 3 External alarm A40 2
POWER SAFE confi guration
DIP1: ON - DIP2: OFF
IN/OUT Description
Filter
level
OUT 1 General alarm 2
OUT 2 Power safe plug 1 2
OUT 3 Power safe plug 2 2
OUT 4 Power safe plug 3 2
IN 1
(1)
E.S.D. 1
IN 2 Supply from GenSet 1
IN 3
Management of energy
consuption
1
ENVIRONMENTAL confi guration
DIP1: ON - DIP2: ON
IN/OUT Description
Filter
level
OUT 1 General alarm 2
OUT 2 Over-heating 2
OUT 3 Overload / Loss of redundancy 2
OUT 4 External alarm In2 2
IN 1
(1)
E.S.D. 1
IN 2 External alarm A39 2
IN 3 External alarm A40 2
