socomec MASTERYS IP Plus - Identifying Switching and Connection Devices

ENGLISH
IOMMASIPXX09-GB 04 11
10-40 kVA
MASTERYS IP+
Q2 Q6
E
D
F
G
H
Masterys IP+ without battery.
UNPACKING AND INSTALLATION
OF THE UNIT
3

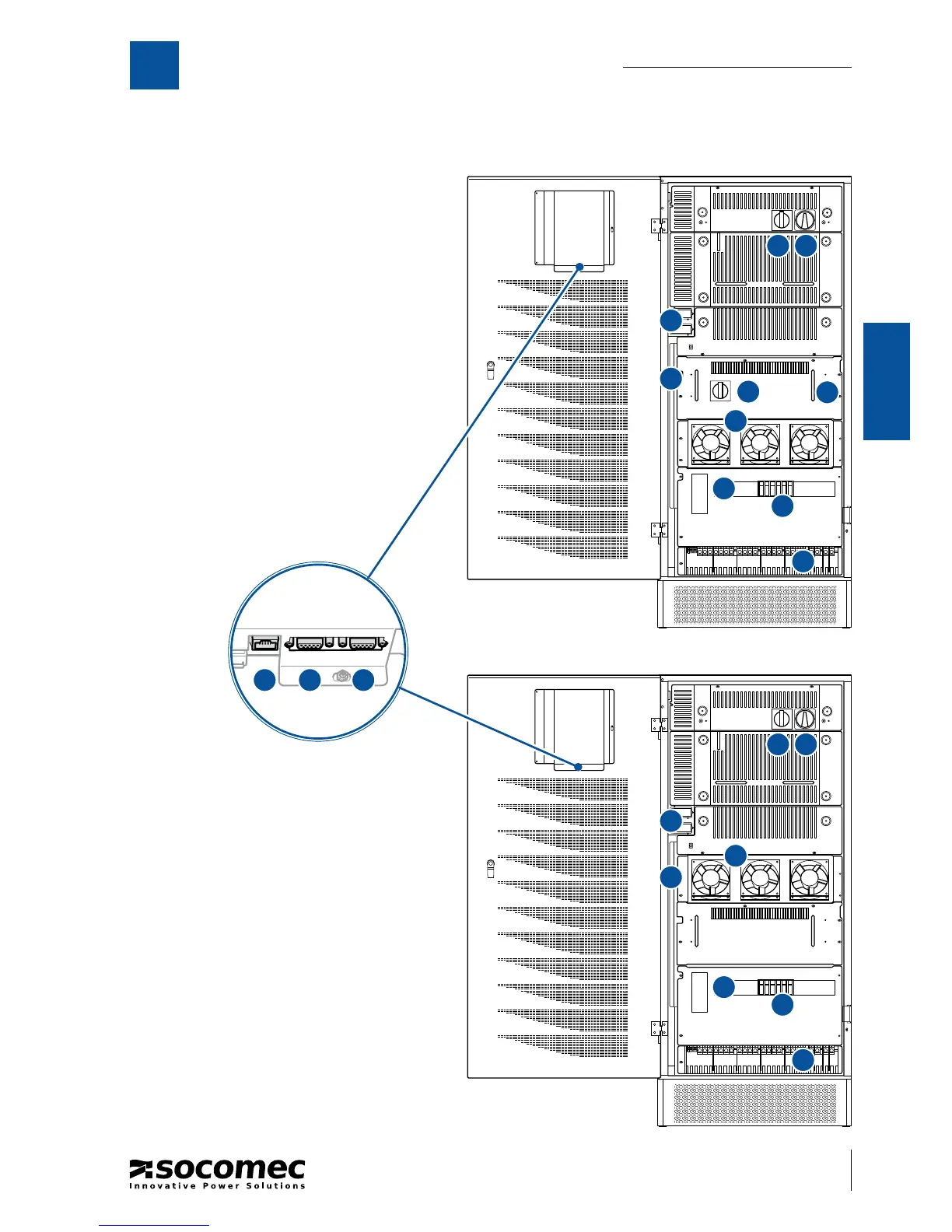

3.4 IDENTIFYING SWITCHING AND CONNECTION DEVICES.
Legend.
A LAN RJ45 connector for Ethernet.
B Serial RS232 connector for Modem.
C Serial RS232/485 connector
D Cable trunking for control cables.
E Fans.
F DIN rail (behind the panel).
G Fuses.
H Power connections (behind the plastic protection).
I Battery pack.
L Slots for communication cards (ADC card installed as
standard, 1 slot available for an additional card).
Q1 Battery switch.
Q2 Input switch (MAINS).
Q6 Output switch.
Q2
Q1
Q6
E
D
L
L
F
G
H
I
Masterys IP+ with battery.
CBA
