ITALIANOENGLISH
14
IOMMASIPXX09-GB 04
10-40 kVA
MASTERYS IP+
3
UNPACKING AND INSTALLATION
OF THE UNIT
Cable speci cations:
• stripping length: 18 mm
tightening torque: 2,5÷4,5 Nm

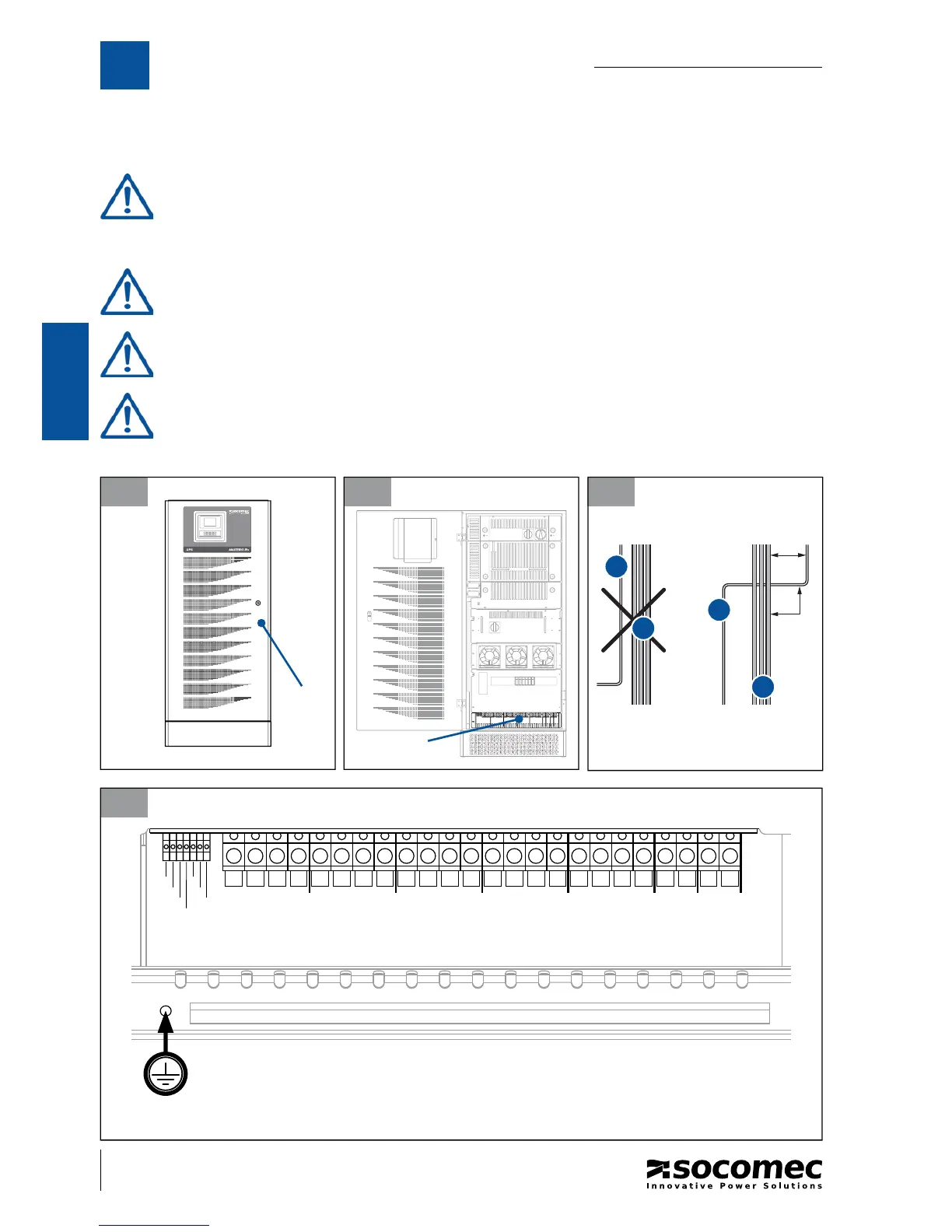

3.6 INSTALLATION PROCEDURES AND INSTRUCTIONS.
WARNING!
Before carrying out work on the terminal board or on UPS internal parts, ensure that the UPS is
switched o , remove the power supply, open the external battery cabinet disconnectors, isolate
the system and wait 5 minutes.
WARNING!
The default transformer is normally connected to the output.
WARNING!
The transformer cannot be connected to the output on UPS units connected in parallel con guration.
WARNING!
Check the presence and the right position of the jumper on terminal socket labelled “TRAFO IN/
OUT SETTING”.
3.6-1
3.6-4
EXT. BATTERY
TA1
TA2
TA3
+B2 -B2 -B1 +B1
OUTPUT
MAINS
SUPPLY
IN
TRANSFORMER
OUT
TRANSFORMER
AUXILIARY
MAINS
L11 L21 L31 N1 L14 L24 L34 N4 N3L13 L23 L33 L12 L22 L32 N2L1 L2 L3 N
COM1
COM2
NC1
NC2
OPEN
OPEN
For systems installed on raised  oor.
3.6-3
20 cm
90°
A
A
B
B
3.6-2
A. power cables
B. control cables
Power connections.
REMOVE
REMOVE
