socomec MASTERYS IP Plus User Manual

ENGLISH
IOMMASIPXX09-GB 04 15
10-40 kVA
MASTERYS IP+
EXT. BATTERY
+B2 -B2 -B1 +B1
OUTPUT
IN
TRANSFORMER
OUT
TRANSFORMER
L11 L21 L31 N1 L14 L24 L34 N4 L13 L23 L33 L12 L22 L32 N2L1 L2 L3 N
TA1
TA2
MAINS
SUPPLY
AUXILIARY
MAINS
N3
3
UNPACKING AND INSTALLATION
OF THE UNIT
N3
EXT. BATTERY
+B2 -B2 -B1 +B1
OUTPUT
MAINS
SUPPLY
IN
TRANSFORMER
OUT
TRANSFORMER
L11 L21 L31 N1 L14 L24 L34 N4 L13 L23 L33 L12 L22 L32 N2L1 L2 L3 N
TA1
TA2
AUXILIARY
MAINS
3/3

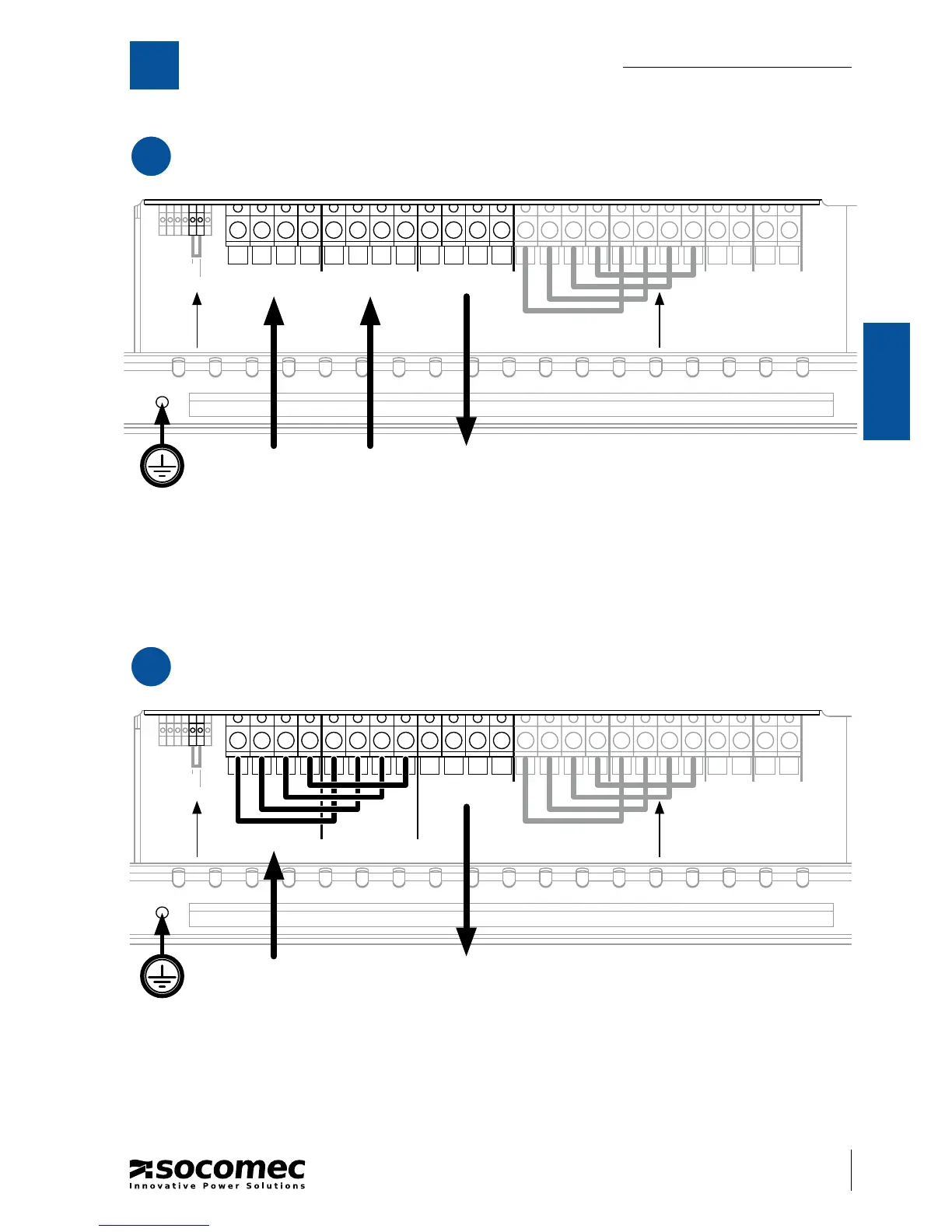

MAINS AND AUXILIARY MAINS ARE CONNECTED SEPARETELY.
Output transformer (standard con guration)
3/3
MAINS AND AUXILIARY MAINS ARE CONNECTED IN COMMON.
Output transformer
AUXILIARY
MAINS
cable section
ø 6÷35 mm
2
TO
LOAD
cable section
ø 6÷35 mm
2
TO LOAD
cable section
ø 6÷35 mm
2
MAINS
cable section
ø 6÷35 mm
2
MAINS
cable section
ø 6÷35 mm
2
Cable
Cable
provided
provided
Cables
Cables
provided
provided
Cables
Cables
provided
provided
Cable
Cable
provided
provided
