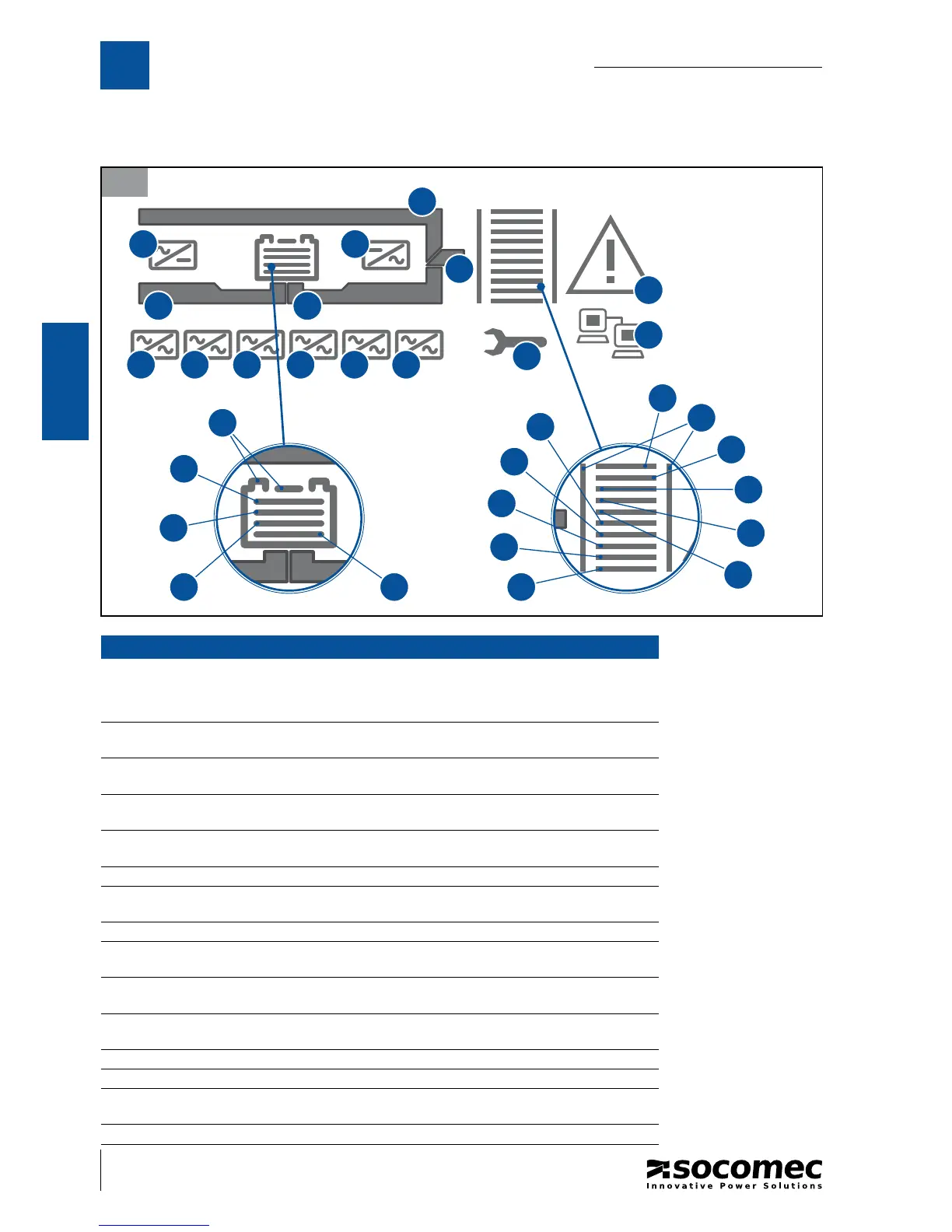

6.2 MEANING OF IDEOGRAMS.
M7
Meaning of ideograms
Code Description Condition
M1 Load on bypass, in Eco-mode or Maintenance bypass closed Steady
Automatic bypass alarm Flashing
M2 Input recti er active. Steady
Input recti er general alarm. Flashing
M3 Battery OK. Steady
Battery alarm. Flashing
M4-M7 Remaining battery capacity. Steps of 25%
Battery recharging. Sequence M7 M4
M8 Inverter on Steady
Inverter general alarm. Flashing
M9 Switch Q6 in position 1. Steady
M10 Input mains OK. Steady
Input mains alarm. Flashing
M11 Inverter on. Steady
M12 Module 1 present. Steady
Module 1 general alarm. Flashing
M13 Module 2 present. Steady
Module 2 general alarm. Flashing
M18 Load present. Steady
Overload. Flashing
M19-M28 Output load indicator. Steps of 10%
M29 Periodic maintenance alarm/warning. Flashing
M30 Activation code alarm. Steady
General alarm. Flashing
M31 LAN connection ready (Cable Connected). Steady
M4
M5
M6
M3
M25
M26
M27
M28
M24
M19
M18
M20
M21
M22
M23
