16
IOMMASIPXX09-GB 04
10-40 kVA
MASTERYS IP+

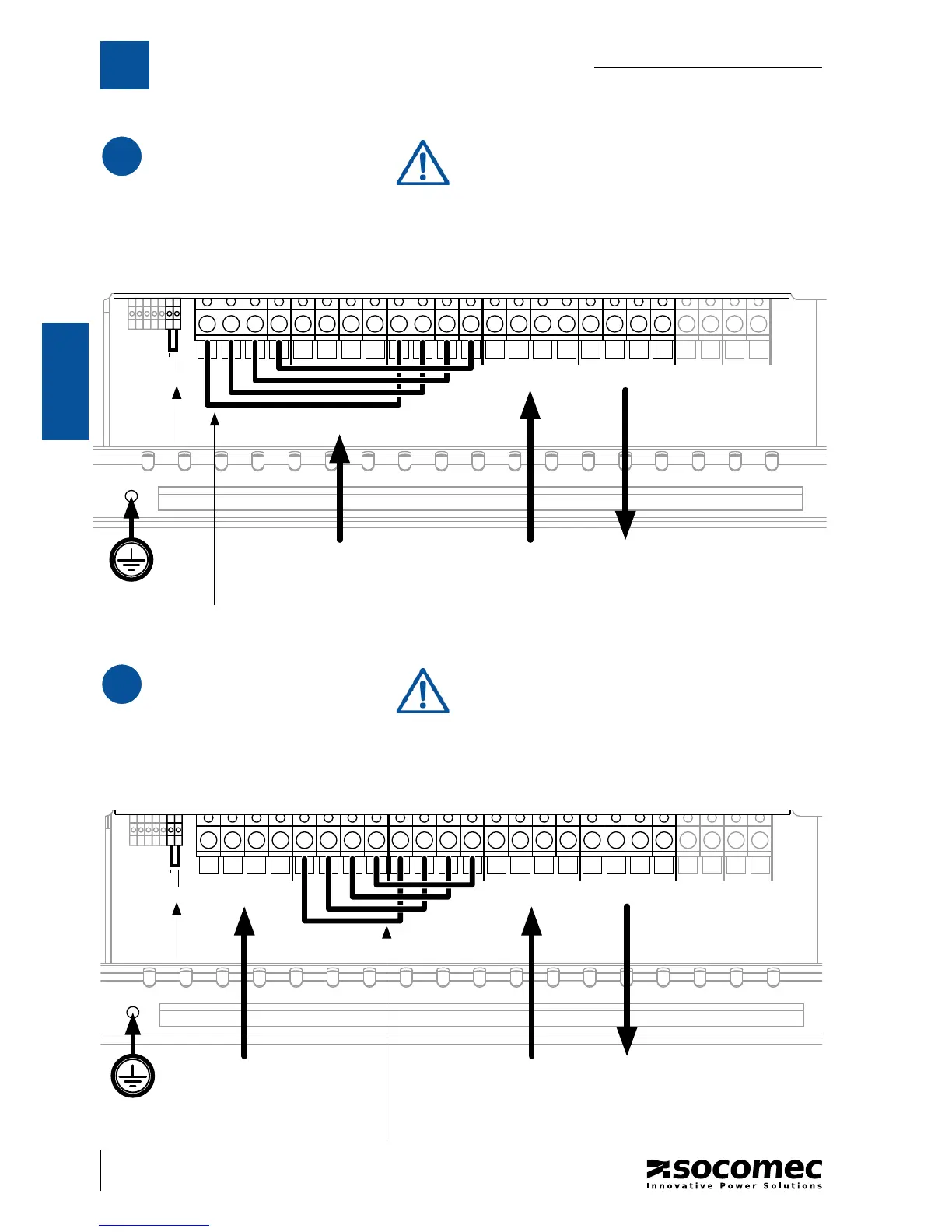

WARNING!
Remove the connecting cables provided between
OUTPUT and IN TRANSFORMER and use them to con-
nect AUXILIARY MAINS and OUT TRANSFORMER.
Move the bridge cable provided from TA1-TA2 to
TA2-TA3.
3
UNPACKING AND INSTALLATION
OF THE UNIT
EXT. BATTERY
+B2 -B2 -B1 +B1
TA2
TA3
OUTPUT
IN
TRANSFORMER
OUT
TRANSFORMER
L11 L21 L31 N1 L14 L24 L34 N4 L13 L23 L33 L12 L22 L32 N2L1 L2 L3 N
MAINS
SUPPLY
AUXILIARY
MAINS
N3
3/3
MAINS AND AUXILIARY MAINS
ARE CONNECTED SEPARATELY.
Transformer on the recti er
power supply input
3/3
MAINS AND AUXILIARY MAINS
ARE CONNECTED SEPARATELY.
Transformer on the bypass
power supply input
TO LOAD
cable section
ø 6÷35 mm
2
MAINS
cable section
ø 6÷35 mm
2
AUXILIARY
MAINS
cable section
ø 6÷35 mm
2
WARNING!
Remove the connecting cables provided between
OUTPUT and IN TRANSFORMER and use them to
connect MAINS SUPPLY and OUT TRANSFORMER.
Move the bridge cable provided from TA1-TA2 to
TA2-TA3.
EXT. BATTERY
+B2 -B2 -B1 +B1
TA2
TA3
OUTPUT
IN
TRANSFORMER
OUT
TRANSFORMER
L11 L21 L31 N1 L14 L24 L34 N4 L13 L23 L33 L12 L22 L32 N2L1 L2 L3 N
MAINS
SUPPLY
AUXILIARY
MAINS
N3
TO LOAD
cable section
ø 6÷35 mm
2
MAINS
cable section
ø 6÷35 mm
2
AUXILIARY MAINS
cable section
ø 6÷35 mm
2
