5.3
FITTING
TELESCOPIC SLIDE
MOUNTING
5.3.1 Remove the following items from the unit,
as shown in Fig A.
3:
a. Finisher Trim (two off)
Keep the
four M4
16
panhead screws
and
M4
crinkle washers
for securing
the rack ears.
b. Handle and Handle Trim
c. Side Trim
Located on the opposite side to the handle, it is normally secured
by a pip
on the finisher trim,
and
slides
out
backwards.
d. Feet (four off) and Tilt Bar
The tilt bar is secured by the two front feet.

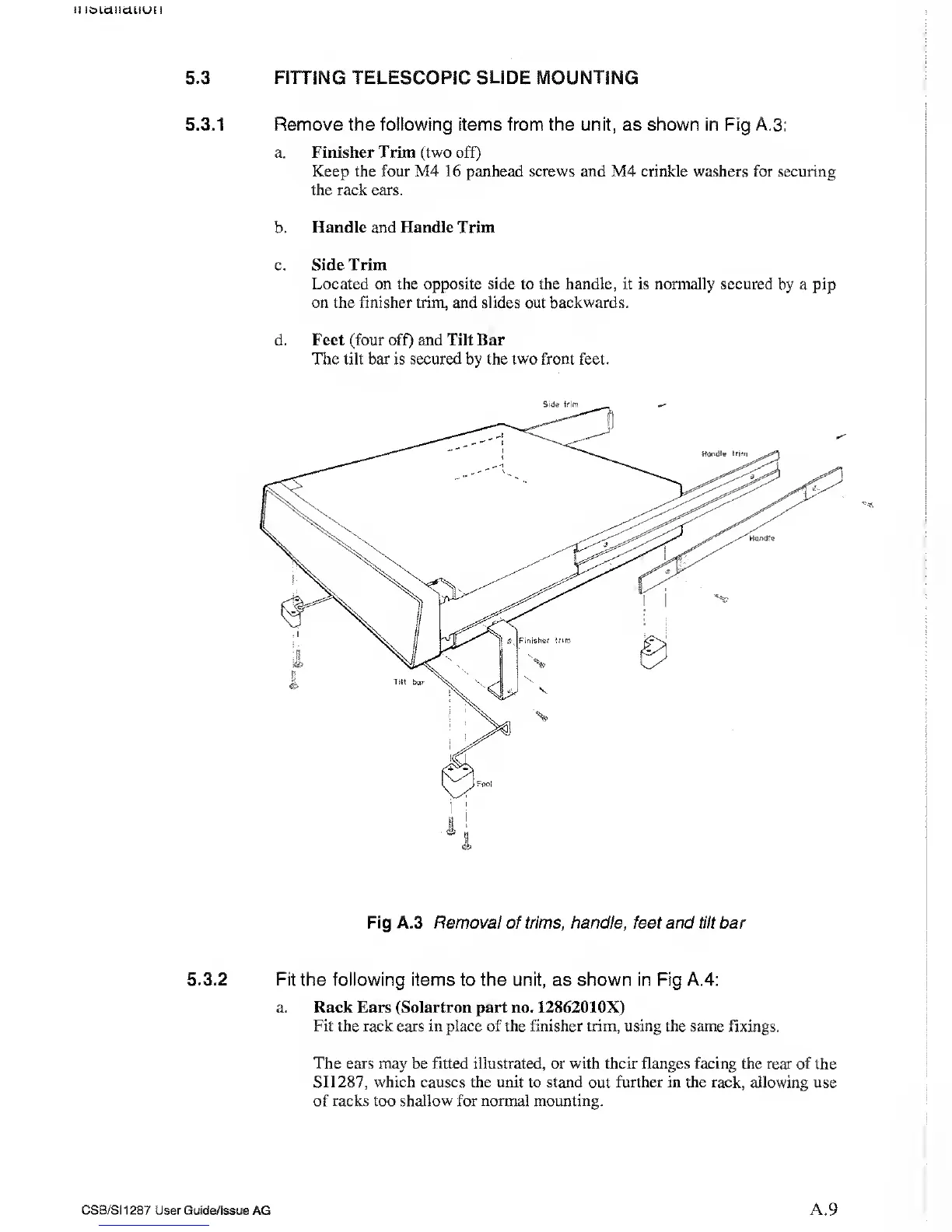

Fig A.3 Removal of trims, handle, feet and tilt bar
5.3.2 Fit the following items to the unit, as shown in Fig A.4:
a. Rack Ears (Solartron part no. 12862010X)
Fit the rack ears in place of the finisher trim, using the
same fixings.
The ears may be fitted illustrated, or with their flanges facing the rear of
the
SI
1287,
which causes the unit to stand
out
further in the rack,
allowing use
of racks too
shallow
for
normal mounting.
CSB/S1 1 287 User
Guide/lssue AG
A.9
