b. Slide Mounting
Bar (Solartron part no.
12862022A)
Screw
the bar to the chassis
in the former position of the handle,
using the
four M4xl2
csk
screws. The bar only fits one way round;
with the threaded
holes nearest the
front.
The corresponding
mounting
bar on the left hand side of the unit should
aslo
be fitted behind the
side trim; it is slightly narrower than
the right hand bar.

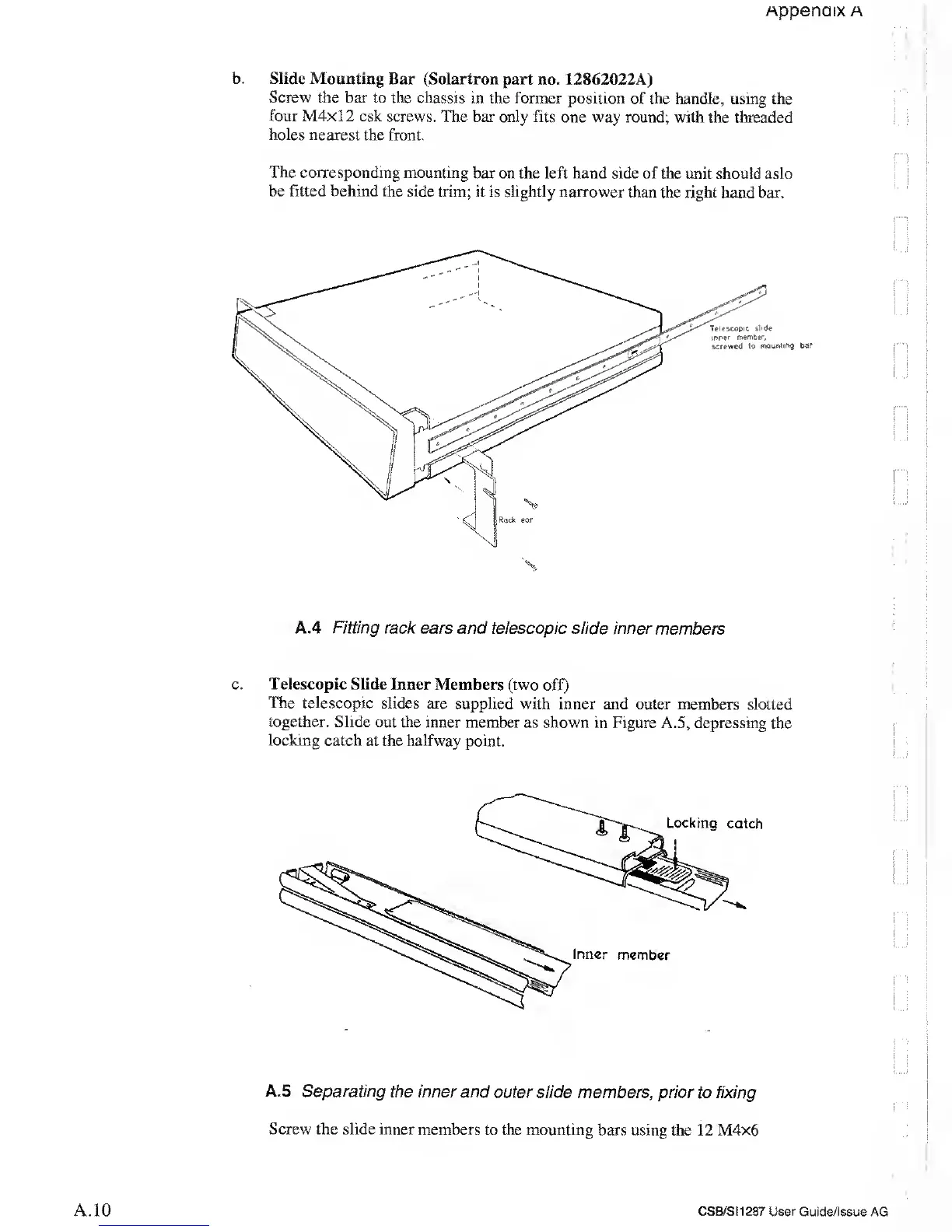

A.4 Fitting rack
ears and telescopic slide inner
members
c. Telescopic
Slide Inner
Members (two off)
The telescopic
slides are
supplied with inner and outer members
slotted
together.
Slide out the
inner member as shown in Figure A.5,
depressing the
locking catch at
the halfway point.
A.5 Separating
the inner and
outer slide members, prior
to
fixing
Screw the slide inner
members to the mounting
bars using the 12 M4x6
