if loianauui i
panhead screws,
6 each side.

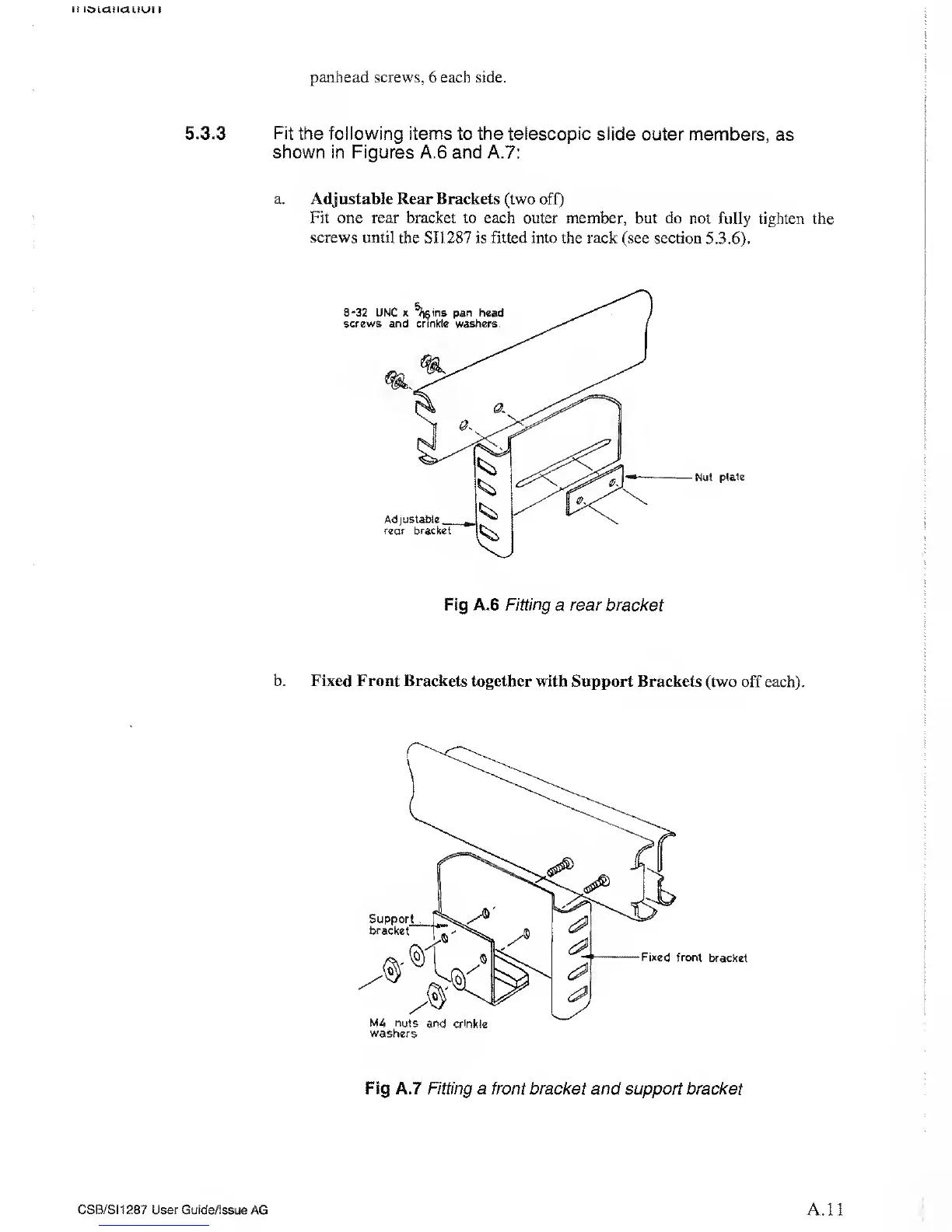

5.3.3 Fit the following items
to the telescopic slide outer members,
as
shown in Figures A.6 and A.7:
a.
Adjustable
Rear Brackets (two off)
Fit one rear bracket
to each outer member, but do not fully
tighten the
screws
until the SI1287 is fitted into the rack
(see section 5.3.6).
Fig A.6 Fitting
a
rear bracket
b. Fixed Front Brackets together with
Support Brackets (two off
each).
washers
Fig A.7 Fitting
a
front bracket
and support bracket
CSB/SI1287 User Guide/Issue
AG
A. 1.1
