Appendix a
5.3.4
Fit the M6
caged nuts
for outer slide members
and rack
ear fixing
into
the rack, in the
positions
shown in Figure A.
8. Details on howto
insert and
remove
caged nuts are also shown.
Rack ear fixing
(right-hand side)
SECTION 'A'

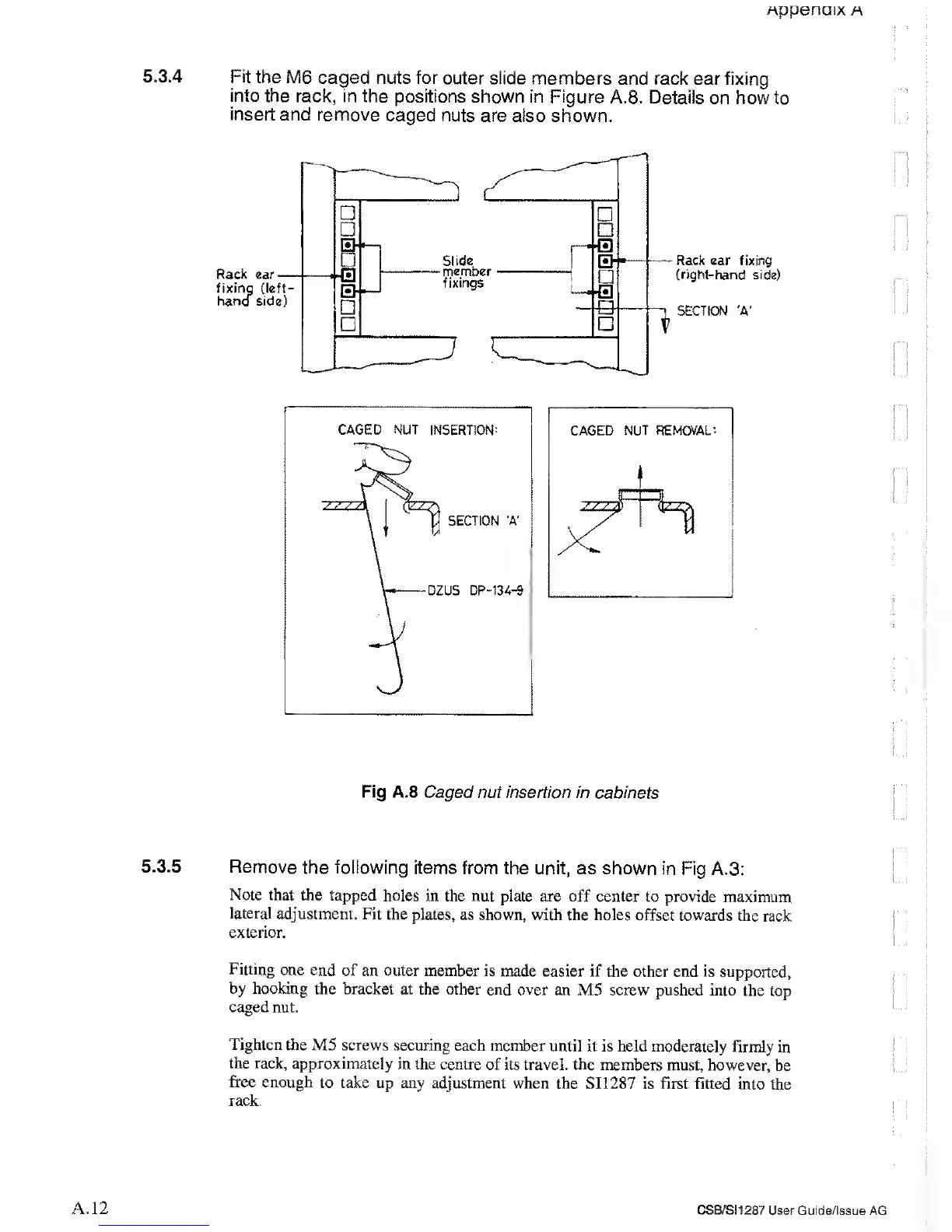

Fig
A.8
Caged nut insertion in cabinets
5.3.5
Remove the
following
items from the
unit, as shown in Fig A.
3:
Note
that the tapped
holes in the nut plate
are off center
to
provide
maximum
lateral adjustment.
Fit the plates,
as shown, with the holes
offset towards
the rack
exterior.
Fitting one
end of an outer
member is made easier
if the other end is
supported,
by hooking
the bracket
at the other end over
an M5 screw pushed
into the top
caged nut.
Tighten
the M5 screws
securing each member
until it is held moderately
firmly in
the rack,
approximately
in the centre
of its travel, the members
must, however,
be
free enough
to take up any
adjustment when the
SI1287 is first fitted
into the
rack.
A.
12
CSB/SI1287
User Guide/Issue AG
