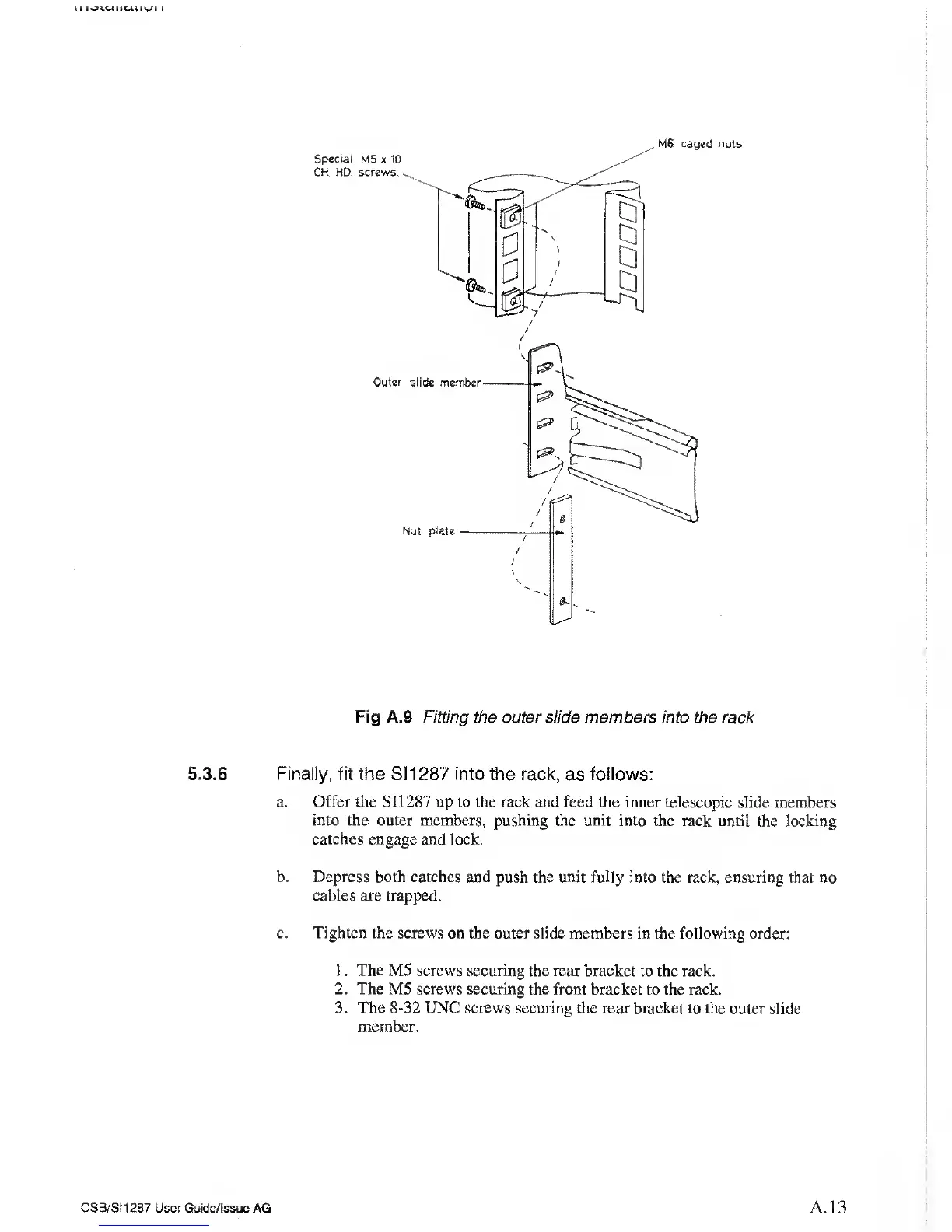

Fig A.9 Fitting the outer slide members
into the rack
5.3.6 Finally, fit the
S1 1287 into the rack, as follows:
a. Offer
the SI1287 up to the rack and feed the inner telescopic slide
members
into the outer members, pushing the unit
into
the rack
until the locking
catches engage and lock.
b. Depress both catches
and push the unit fully into the rack, ensuring
that no
cables are trapped.
c.
Tighten the screws
on the outer slide members in the following order:
1 . The M5 screws securing
the
rear
bracket to the rack.
2. The M5 screws
securing the front bracket to the rack.
3. The
8-32
UNC screws securing the rear bracket
to the outer slide
member.
CSB/SI1287 User Guide/Issue
AG
A. 13
