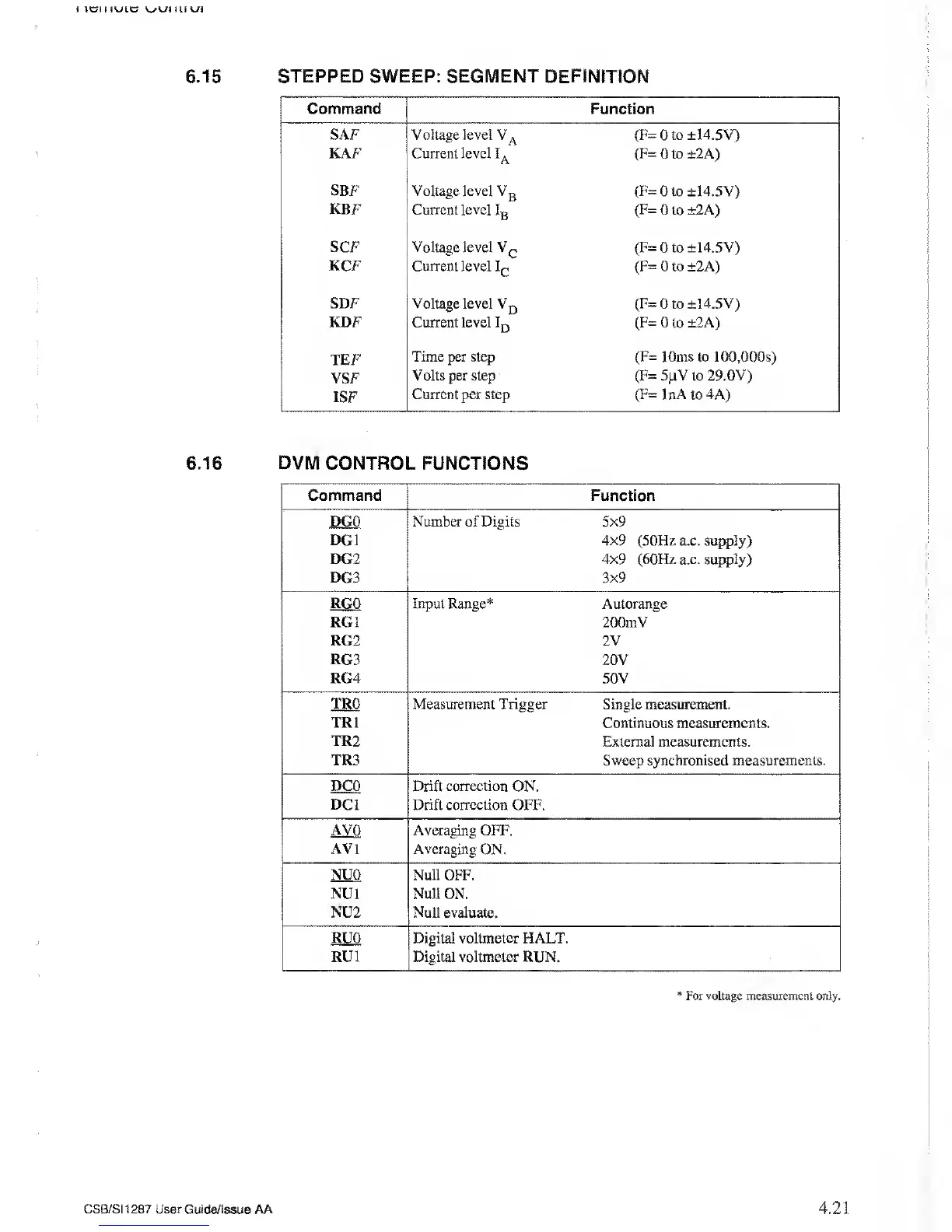

6.15 STEPPED SWEEP:
SEGMENT
DEFINITION
Command
Function
SAF
Voltage level V
A
(F= 0 to
±14.5V)
KAF Current level I
A
(F=
0
to
±2A)
SBF Voltage level V
R
(F=
0
to ± 14.5V)
KBF
Current
level
I
B
(F= 0 to ±2A)
SCF Voltage level
V
c
(F= 0 to ± 14.5V)
KCF Current level I
c
(F=
0
to ±2A)
SDF Voltage level
V
D
(F= 0 to ±14.5V)
KDF Current level I
D
(F= 0 to
±2A)
TEF
Time per step (F=
10ms to 100,000s)
VSF
Volts per step (F= 5pV to 29.0V)
ISF
Current per step (F= InA
to 4
A)
6.1 6 DVM CONTROL FUNCTIONS
Command Function
DG0 Number
of
Digits 5x9
DG1 4x9
(50Hz
a.c.
supply)
DG2 4x9
(60Hz a.c. supply)
DG3
3x9
EGO
Input Range* Autorange
RG1 200mV
RG2 2V
RG3
20V
RG4 50V
TR0
Measurement Trigger Single measurement.
TR1 Continuous measurements.
TR2 External measurements.
TR3
Sweep synchronised measurements.
DC0 Drift correction ON.
DC1 Drift correction
OFF.
AV0 Averaging OFF.
AVI Averaging
ON.
NUO Null
OFF.
NU1
Null ON.
NU2 Null evaluate.
RUO Digital voltmeter HALT.
RU1 Digital voltmeter RUN.
*
For voltage measurement only.
CSB/S1 1 287 User
Guide/issue
AA 4.21
