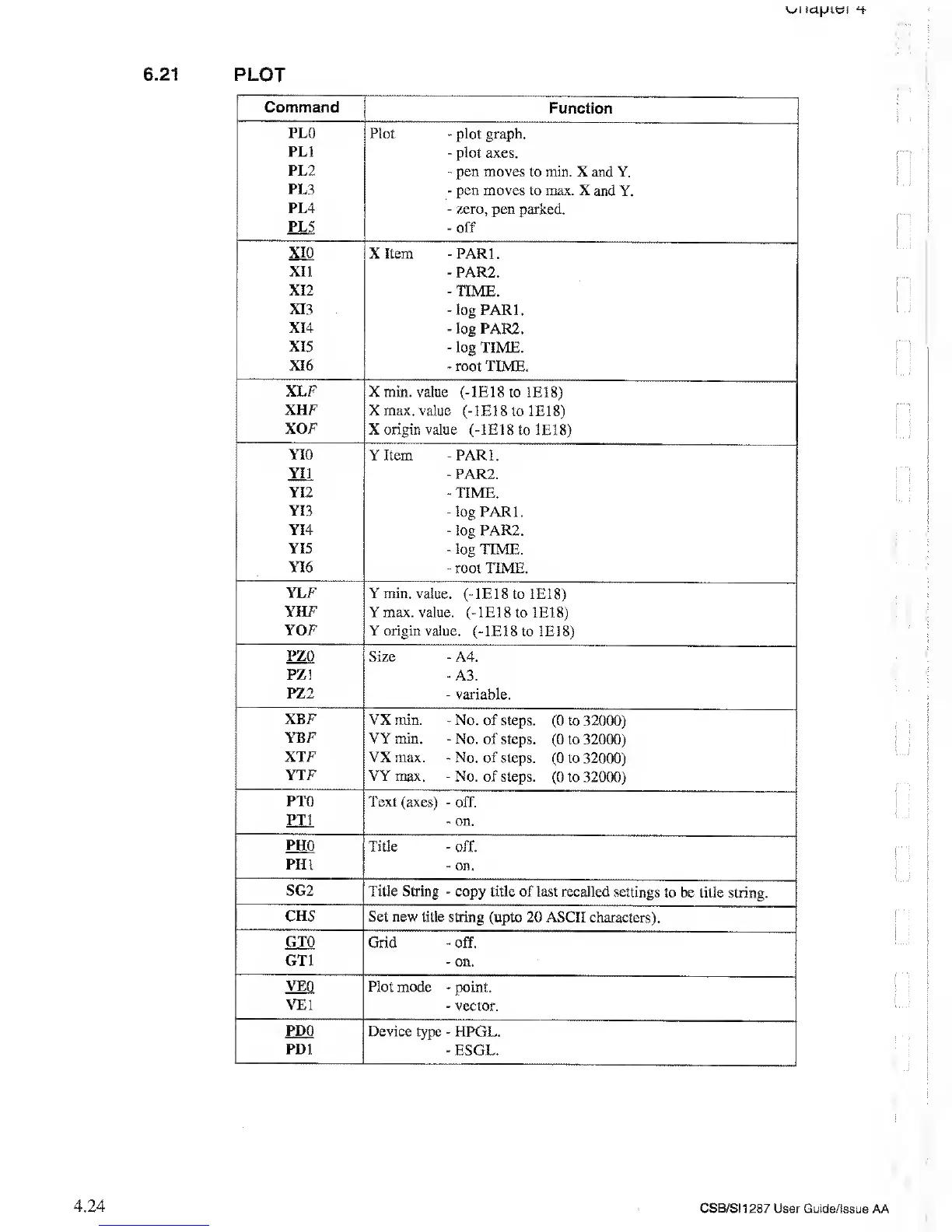

6.21
PLOT
Command
Function
PLO
Plot
- plot graph.
PL1
-
plot axes.
PL2
- pen moves
to min. X and Y.
PL3
-
pen moves to max. X
and Y.
PL4
-
zero, pen parked.
PL5
-off
X10
X Item -PARI.
XII
-
PAR2.
XI2
-TIME.
XI3
-log PARI.
XI4
-
log PAR2.
XI5
-
log TIME.
XI6
-
root TIME.
XLF
X
min.
value (-1E18
to 1E18)
XH
F X max. value
(-1E18
to
1E18)
XOF
X origin value (-1E18
to 1E18)
YIO YItem -PARI.
YI1
-
PAR2.
YI2
-TIME.
YI3
-log
PARI.
YI4
-
log PAR2.
YI5
-
log TIME.
YI6
-
root TIME.
YLF
Y min. value.
(-1E18 to 1E18)
YHF Y max. value.
(-1E3 8 to IE1.8)
YOF
Y origin value.
(-1E1.8 to IE 3
8)
PZO
Size
-
A4.
PZ1
-A3.
PZ2
-
variable.
XBF VX
min.
-
No.
of steps.
(0
to
32000)
YBF VY
min.
-
No. of steps.
(0
to
32000)
XTF
VX
max.
-
No. of
steps.
(0
to
32000)
YTF VY
max.
-
No.
of steps.
(0
to 32000)
PTO
Text (axes)
-
off.
PT1
-
on.
PHO
Title
-
off.
PHI
-
on.
SG2
Title String
-
copy
title of last recalled
settings to be title
string.
CHS
Set new title string
(upto 20 ASCII characters).
GTO
Grid
-
off.
GT1
-
on.
VEO Plot
mode - point.
VE1
-
vector.
PDO
Device type
-
HPGL.
PD1
-
ESGL.
